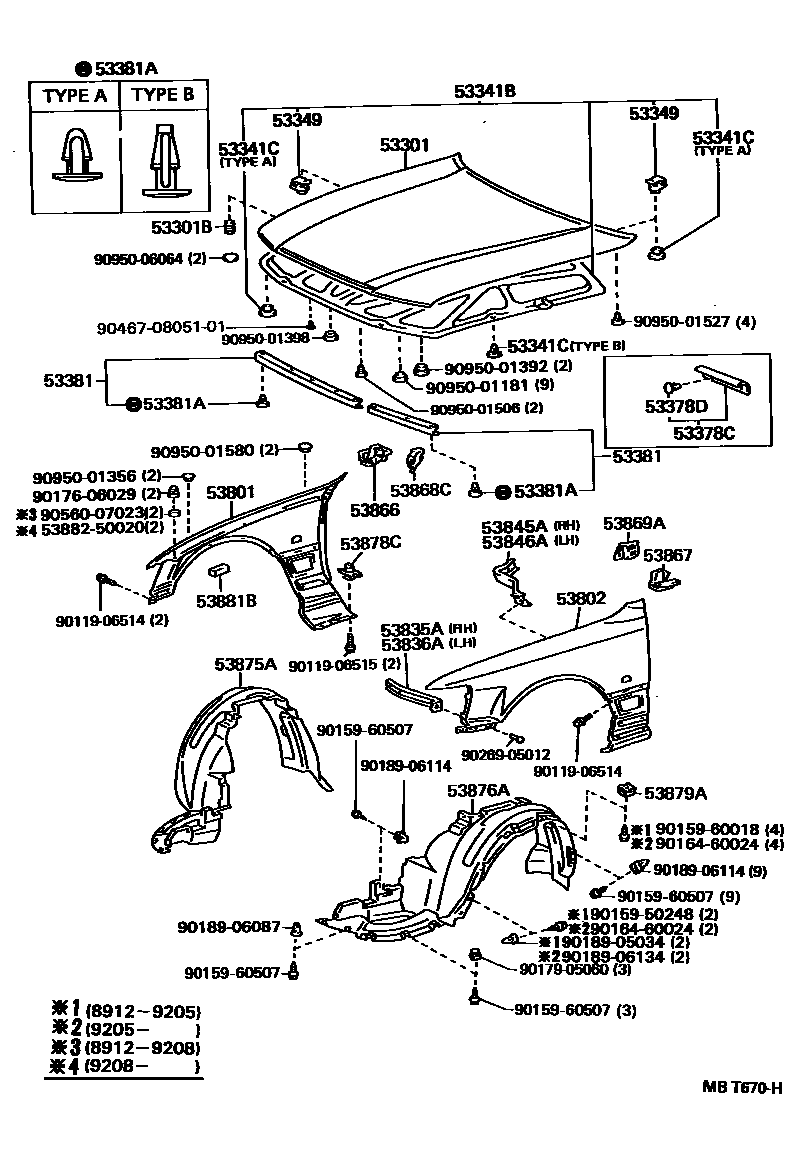

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-50010iUCF10198912-199410

53301BCUSHION, HOOD BUMPER

main90541-15014×2iUCF10198912-199410

53341BINSULATOR, HOOD

main53341-50010iUCF10198912-199112

main53341-50011iUCF10199112-199203

main53341-50012iUCF10199203-199302

main53341-50013iUCF10199302-199410

53341CCLIP(FOR HOOD INSULATOR)

main90467-07091×2iUCF10198912-199410

TYPE A

main90467-08124×17iUCF10198912-199410

TYPE B

53349RETAINER, HOOD SILENCER

main53349-50010×2iUCF10198912-199410

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-50010iUCF10..LHD..EUR199101-199410

53378DCLIP(FOR HOOD AIR INTAKE DUCT SEAL)

main90467-08011×2iUCF10..LHD..EUR199101-199410

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-50010iUCF10198912-199410

RH

main53382-50010iUCF10198912-199208

LH

main53382-50020iUCF10199208-199410

LH

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iUCF10198912-199208

TYPE A

main90467-08156×2iUCF10198912-199410

TYPE B

53801FENDER SUB-ASSY, FRONT RH

main53801-50020iUCF10198912-199202

main53801-50021iUCF10199202-199208

sub53882-50020

sub90560-07023

main53801-50022iUCF10199208-199410

53802FENDER SUB-ASSY, FRONT LH

main53802-50020iUCF10198912-199202

main53802-50021iUCF10199202-199208

sub53882-50020

sub90560-07023

main53802-50022iUCF10199208-199410

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-50010iUCF10198912-199009

main53835-50011iUCF10199009-199102

main53835-50012iUCF10199102-199208

main53835-50020iUCF10199208-199410

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-50010iUCF10198912-199009

main53836-50011iUCF10199009-199102

main53836-50012iUCF10199102-199208

main53836-50020iUCF10199208-199410

53845ABRACE, FRONT WHEEL OPENING APRON, RH

main53845-50010iUCF10198912-199208

main53845-50020iUCF10199208-199410

53846ABRACE, FRONT WHEEL OPENING APRON, LH

main53846-50010iUCF10198912-199208

main53846-50020iUCF10199208-199410

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-50010iUCF10198912-199410

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-50010iUCF10198912-199410

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-50010iUCF10198912-199410

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-50010iUCF10198912-199410

53875ALINER, FRONT FENDER, RH

main53875-50010iUCF10198912-199009

sub90159-60394

sub90189-06114

main53875-50011iUCF10199009-199208

main53875-50020iUCF10199208-199410

53876ALINER, FRONT FENDER, LH

main53876-50010iUCF10198912-199009

sub90159-60394

sub90189-06114

main53876-50011iUCF10199009-199208

main53876-50020iUCF10199208-199410

53878CSPACER, FRONT FENDER

main53878-50010×2iUCF10198912-199410

53879ARETAINER, FRONT FENDER LINER

main53879-22030×8iUCF10198912-199410

53881BSEAL, COOLING FAN AIR DUCT, NO.1

main53881-50010×2iUCF10198912-199410

5388250020PACKING, FRONT FENDER MAIN

main53882-50020

9011906514

main90119-06514

9011906515

main90119-06515

9015950248

main90159-50248

9015960018

main90159-60018

9015960507

main90159-60507

9016460024

main90164-60024

9017606029

main90176-06029

9017905060

main90179-05060

9018905034

main90189-05034

9018906087

main90189-06087

9018906114

main90189-06114

9018906134

main90189-06134

9026905012

main90269-05012

904670805101

main90467-0805101

9056007023

main90560-07023

9095001181

main90950-01181

9095001356

main90950-01356

9095001392

main90950-01392

9095001398

main90950-01398

9095001506

main90950-01506

9095001527

main90950-01527

9095001580

main90950-01580

9095006064

main90950-06064

48 parts on this diagram · 1 diagram in section
