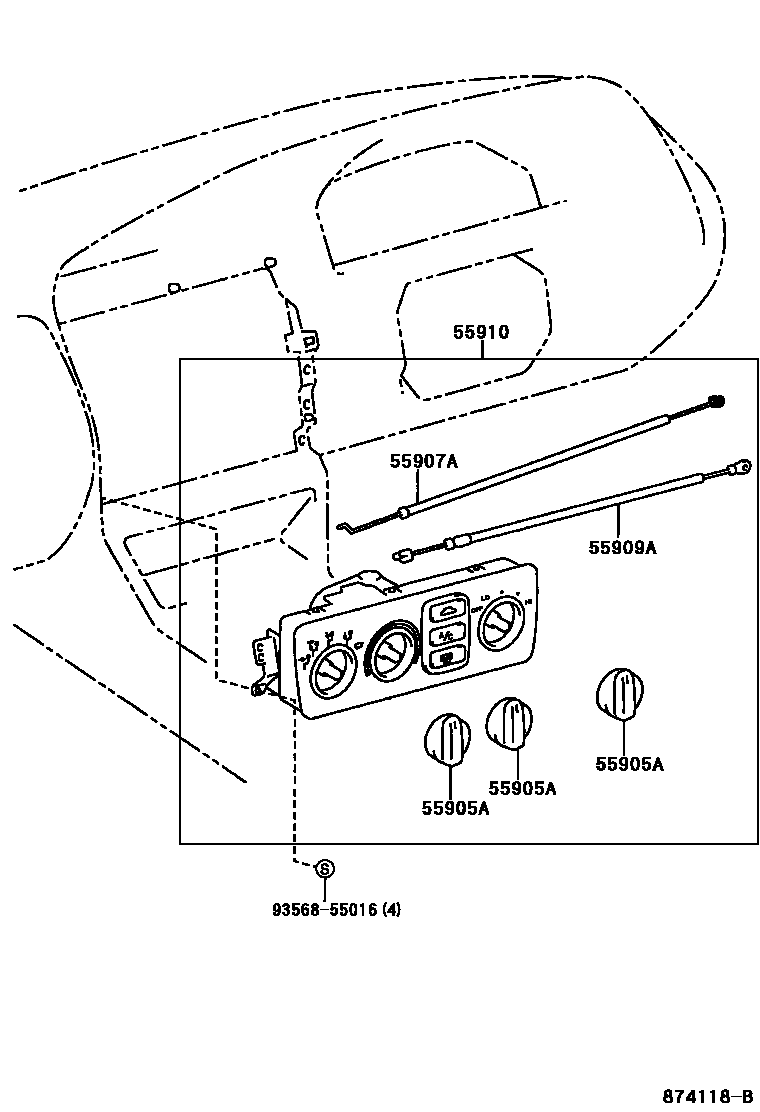

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL--MANUAL AIR CONDITION0002 1CONTROL--AUTO AIR CONDITIONER0003 1AIR DUCT 0004 1SENSOR

55905AKNOB, HEATER CONTROL

main55905-12440-C0×3iMCX10..CONQ,CSX200004-200309

BLACK,TRIM1#,4#

main55905-30270iMCX10..GD,VXI200309-200506

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-07020iMCX10..CONQ,CSX200004-200309

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-07020iMCX10..CONQ,CSX200004-200309

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55900-07080iMCX10..CONQ200004-200309

main55900-07090iMCX10..CONQ,CSX200004-200309

W(AIR CONDITIONER)

9356855016

main93568-55016

5 parts on this diagram · 4 diagrams in section
