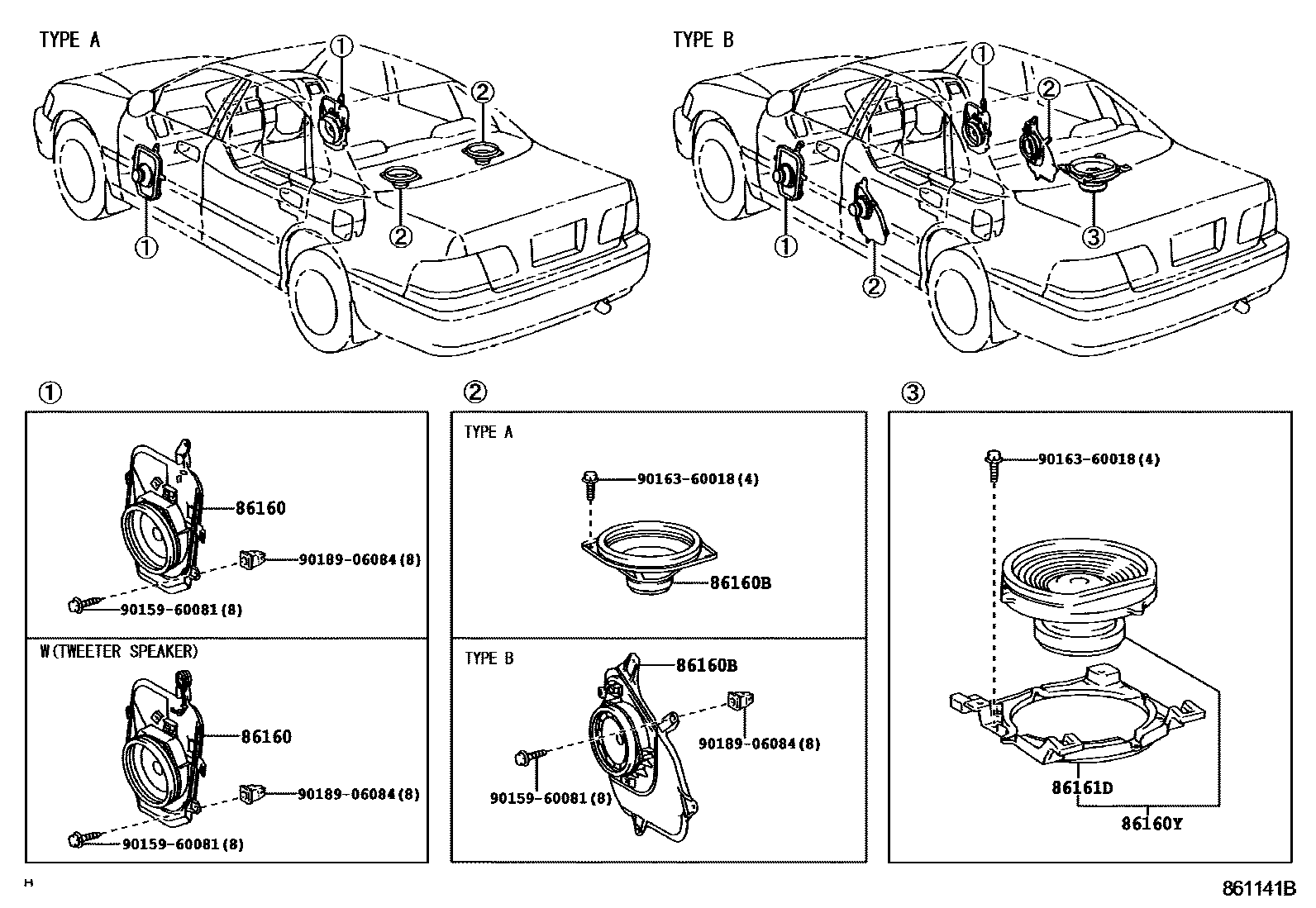

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-YF010iMCX10..CONQ200004-200309

RH

main86160-YF020iMCX10..CONQ200004-200309

LH

main86160-YF030iMCX10200004-200309

W(TWEETER SPEAKER),RH

main86160-YF040iMCX10200004-200309

W(TWEETER SPEAKER),LH

86160BSPEAKER ASSY, REAR

main86160-YF050iMCX10..CONQ,CSX,VXI200004-200309

TYPE A:REFER TO ILLUSTRATION

main86160-YF060iMCX10..GD200004-200309

TYPE B:REFER TO ILLUSTRATION,RH

main86160-YF070iMCX10..GD200004-200309

TYPE B:REFER TO ILLUSTRATION,LH

86160YSPEAKER ASSY, REAR NO.2

main86160-YF080iMCX10..GD200004-200309

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-YF010iMCX10..GD200004-200309

9015960081

main90159-60081

9016360018

main90163-60018

9018906084

main90189-06084

7 parts on this diagram · 1 diagram in section
