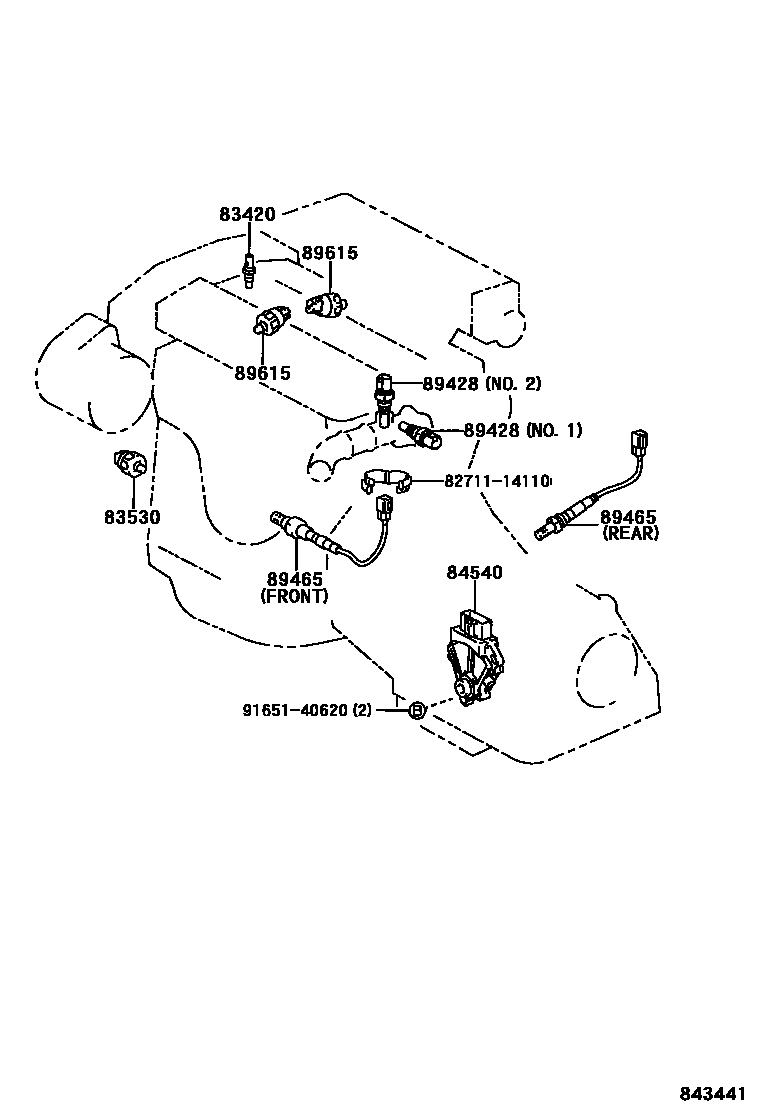

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1IGNITION & COMBINATION SWITCH0007 1DOOR,ROOF,FLOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iMCX10200004-200309

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCX10200004-200309

DENSO

main83530-30090iMCX10200004-200309

YAZAKI

sub83530-60020

main83530-60020iMCX10200309

YAZAKI

main83530-AA011iMCX10200004-200309

FASCO

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-20200iMCX10200004-200506

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-30130iMCX10200004-200309

NO.1

main89428-41010iMCX10200004-200309

NO.2

89465SENSOR, OXYGEN

main89465-06110iMCX10200309

(L)

main89465-33160iMCX10200004-200309

FRONT

main89465-33170iMCX10200004-200309

REAR

main89465-40060iMCX10200309

(J)

89615SENSOR, KNOCK CONTROL

main89615-12090iMCX10200004-200309

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9165140620

main91651-40620

8 parts on this diagram · 7 diagrams in section
