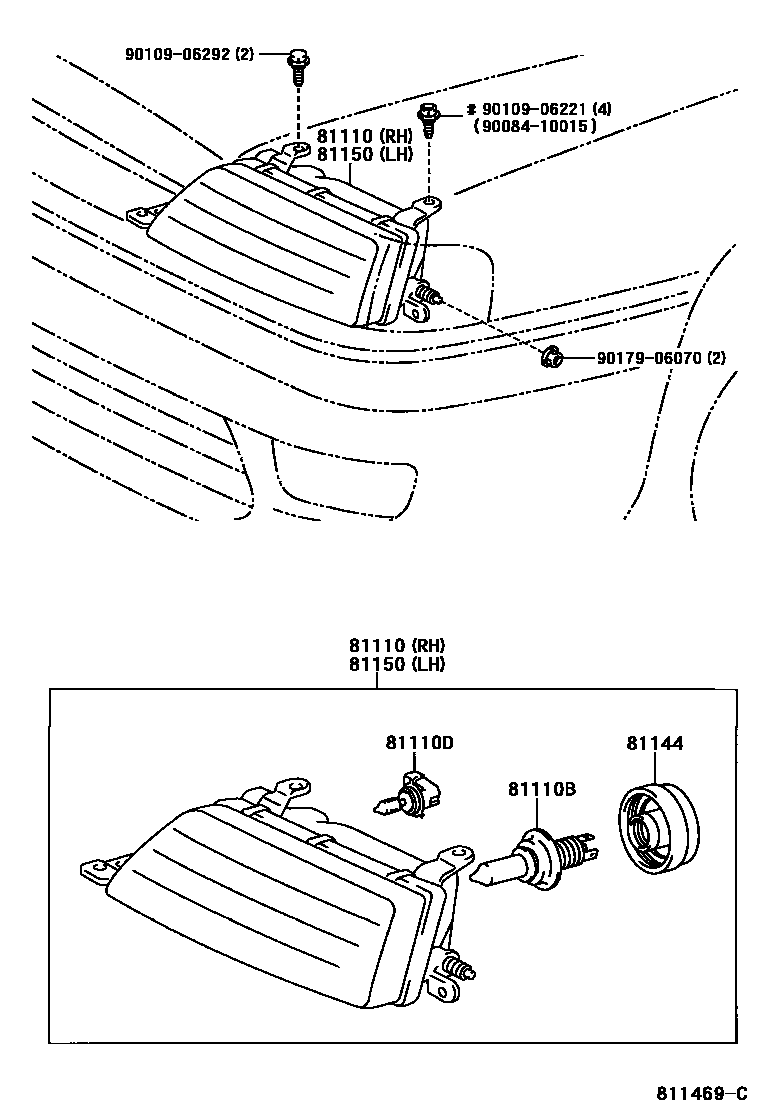

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-YF010iMCX10200004-200309

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iMCX10200309-200506

12V 60/55W,*HAL *WH

sub90981-13058

main90981-22004×2iMCX10200004-200309

12V 60/55W,*HAL *WH

sub90981-13055

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iMCX10200004-200309

12V 65W

sub90981-13046

main90981-8Y001×2iMCX10200309-200506

12V 65W

81144COVER, HEADLAMP, NO.1

main81139-8Y001×2iMCX10200004-200309

81150HEADLAMP ASSY, LH

main81150-YF010iMCX10200004-200309

9008410015

main90084-10015

9010906221

main90109-06221

9010906292

main90109-06292

9017906070

main90179-06070

9 parts on this diagram · 2 diagrams in section
