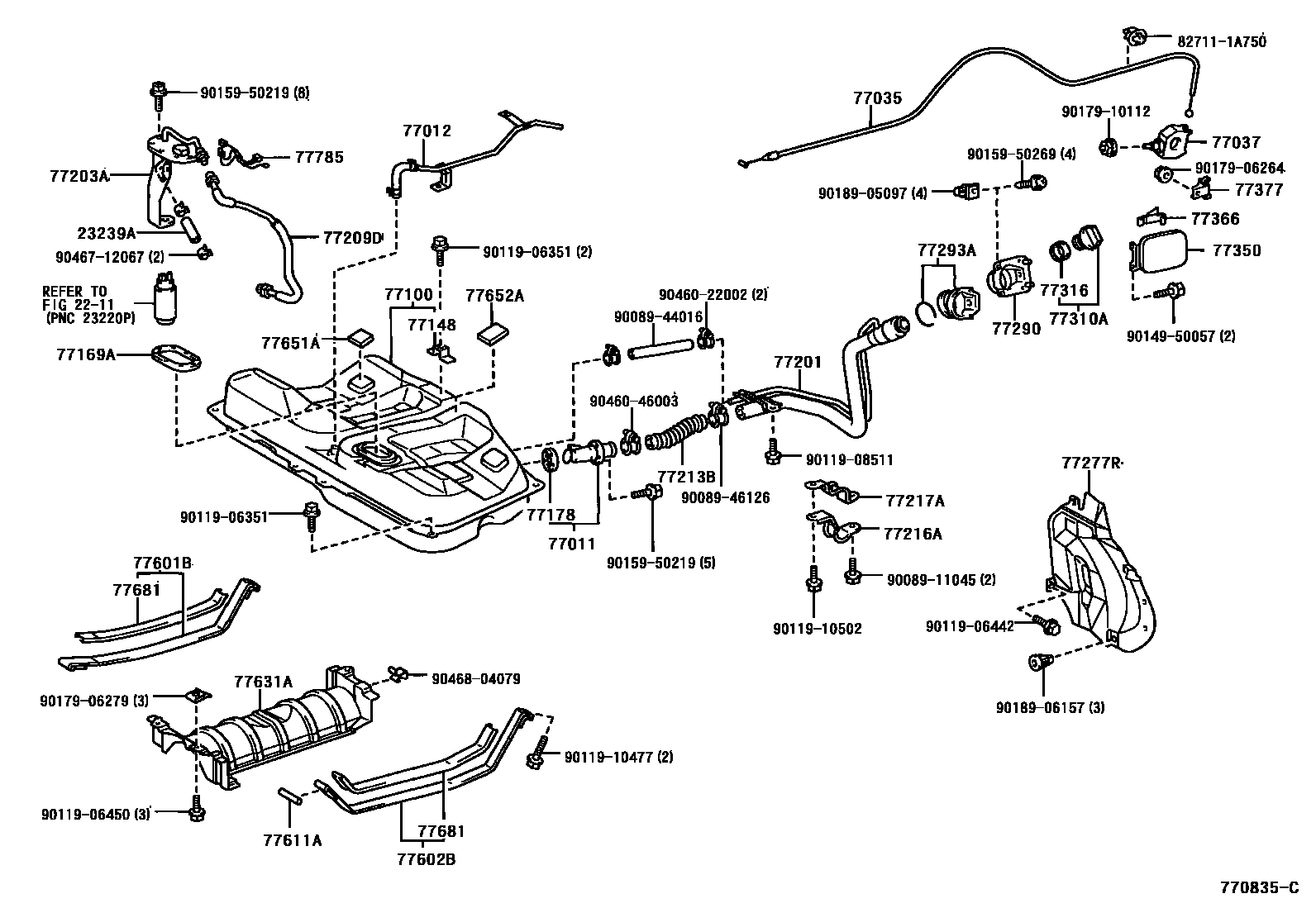

FUEL TANK & TUBE
2211
23239AHOSE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77148BRACKET, FUEL TUBE TO TANK
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
sub77178-0A010
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
sub77293-AC010
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77611APIN (FOR FUEL TANK BAND)
77631APROTECTOR, FUEL TANK, LOWER CENTER
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
9008911045
main90089-11045
9008944016
main90089-44016
9008946126
main90089-46126
9011906351
main90119-06351
9011906442
main90119-06442
9011906450
main90119-06450
9011908511
main90119-08511
9011910477
main90119-10477
9011910502
main90119-10502
9014950057
main90149-50057
9015950219
main90159-50219
9015950269
main90159-50269
9017906264
main90179-06264
9017906279
main90179-06279
9017910112
main90179-10112
9018905097
main90189-05097
9018906157
main90189-06157
9046022002
main90460-22002
9046046003
main90460-46003
9046712067
main90467-12067
9046804079
main90468-04079
54 parts on this diagram · 5 diagrams in section
