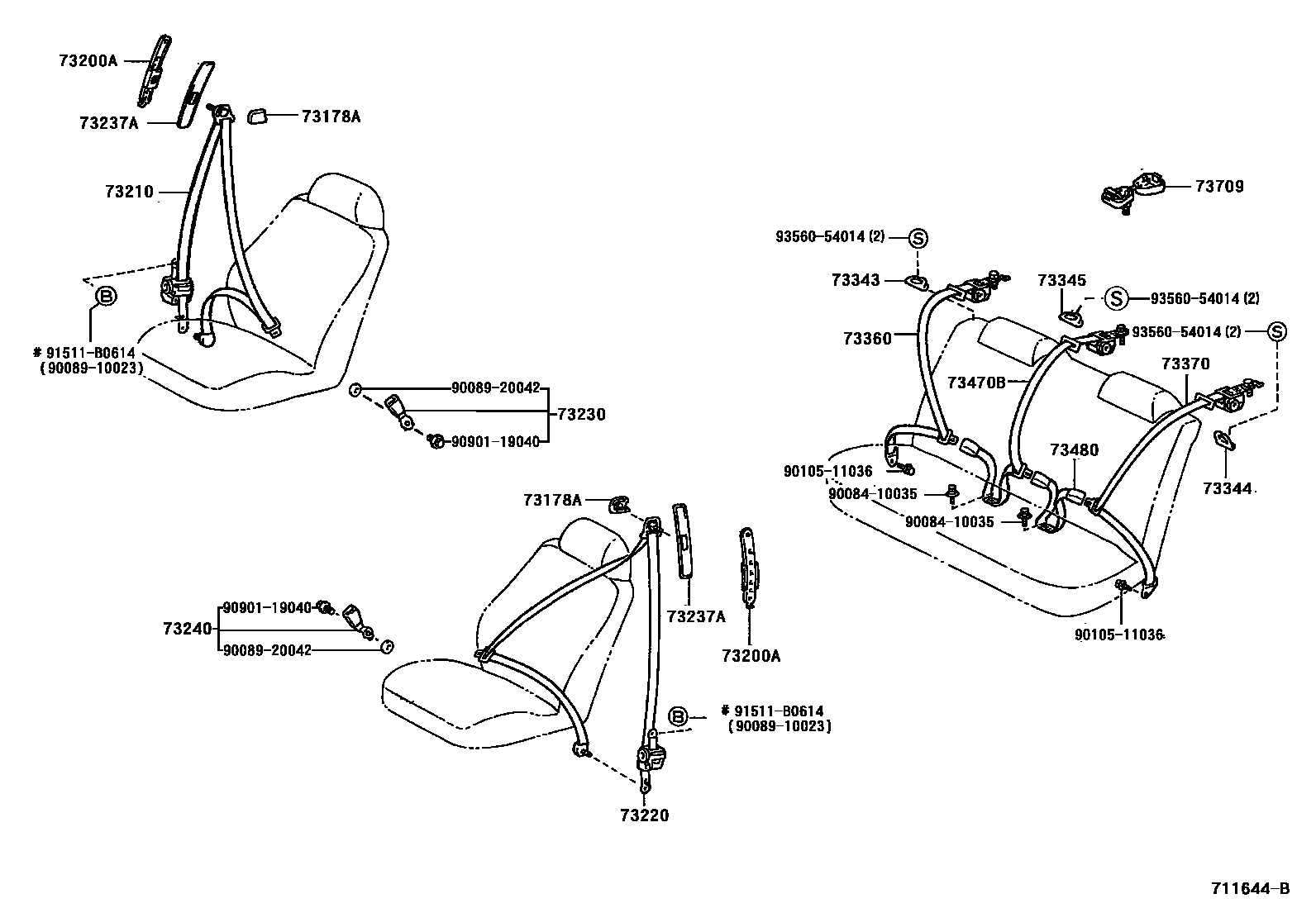

SEAT BELT & CHILD RESTRAINT SEAT

73178ACAP, SEAT BELT ANCHOR COVER

main73178-YC010-B1iMCX10200004-200506

STONE,TRIM1#,RH

main73178-YC010-E0iMCX10200004-200506

FAWN,TRIM4#,RH

main73179-YC010-B1iMCX10200004-200506

STONE,TRIM1#,LH

main73179-YC010-E0iMCX10..GD,VXI200004-200506

FAWN,TRIM4#,LH

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-YF010iMCX10200004-200309

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-YF010-B2iMCX10200004-200506

DK. STONE,TRIM1#

main73210-YF010-E2iMCX10200004-200506

SANDALWOOD,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-YF010-B2iMCX10200004-200506

DK. STONE,TRIM1#

main73220-YF010-E2iMCX10..GD,VXI200004-200506

SANDALWOOD,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-YC070-B1iMCX10200004-200506

STONE,TRIM1#

main73230-YC070-E1iMCX10200004-200506

FAWN,TRIM4#

73237ACOVER, SHOULDER BELT ANCHOR

main73237-YF010-B0iMCX10200004-200506

STONE,TRIM1#

main73237-YF010-E0iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-YC070-B1iMCX10200004-200506

STONE,TRIM1#

main73230-YC070-E1iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

73343GUIDE, REAR SEAT SHOULDER BELT, RH

main73343-YF010-B0iMCX10200004-200506

STONE,TRIM1#

main73343-YF010-E0iMCX10200004-200506

FAWN,TRIM4#

73344GUIDE, REAR SEAT SHOULDER BELT, LH

main73344-YF010-B0iMCX10200004-200506

STONE,TRIM1#

main73344-YF010-E0iMCX10200004-200506

FAWN,TRIM4#

73345GUIDE, REAR SEAT SHOULDER BELT, CENTER

main73345-YF010-B0iMCX10200004-200506

STONE,TRIM1#

main73345-YF010-E0iMCX10200004-200506

FAWN,TRIM4#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-YF010-B1iMCX10200004-200506

DK. STONE,TRIM1#

main73360-YF010-E1iMCX10200004-200506

SANDALWOOD,TRIM4#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73360-YF010-B1iMCX10200004-200506

DK. STONE,TRIM1#

main73360-YF010-E1iMCX10..GD,VXI200004-200506

SANDALWOOD,TRIM4#

73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH

main73470-YF010-B1iMCX10200004-200506

DK. STONE,TRIM1#

main73470-YF010-E1iMCX10..GD,VXI200004-200506

SANDALWOOD,TRIM4#

73480BELT ASSY, REAR SEAT INNER W/CENTER, LH

main73480-YF010-B1iMCX10200004-200506

DK. STONE,TRIM1#

main73480-YF010-E1iMCX10200004-200506

SANDALWOOD,TRIM4#

73709BRACKET SUB-ASSY, TETHER ANCHOR

main73709-YF010-B0iMCX10200004-200506

DK. STONE,TRIM1#

main73709-YF010-E0iMCX10200004-200506

SANDAL WOOD,TRIM4#

9008410035

main90084-10035

9008910023

main90089-10023

9008920042

main90089-20042

9010511036

main90105-11036

9090119040

main90901-19040

91511B0614

main91511-B0614

9356054014

main93560-54014

22 parts on this diagram · 1 diagram in section
