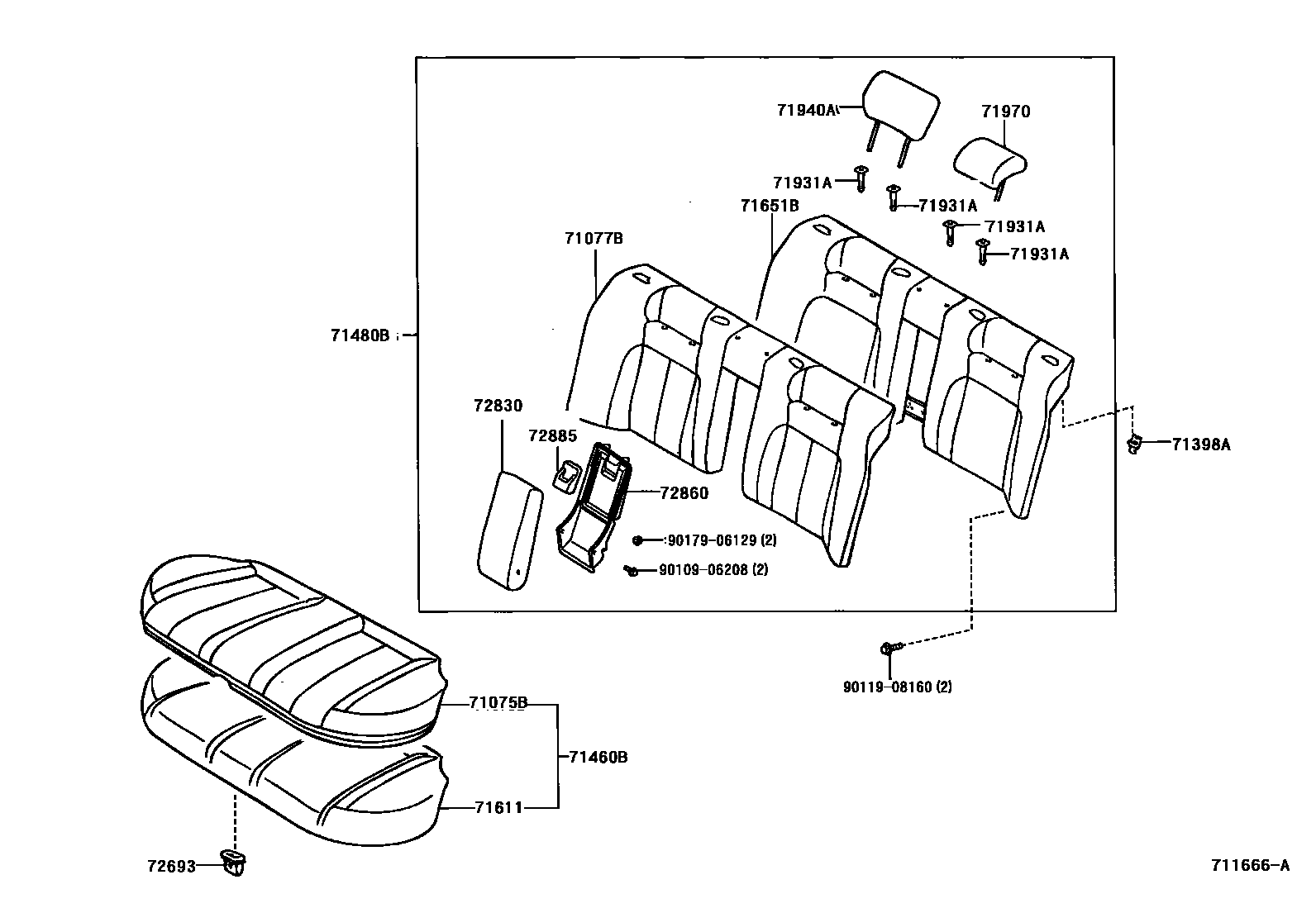

REAR SEAT & SEAT TRACK

0001 1 0002 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-YF010-B1iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,STONE,TRIM1#

main71075-YF010-E1iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,FAWN,TRIM4#

main71075-YF020-B0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,STONE,TRIM1#

main71075-YF020-E0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,FAWN,TRIM4#

main71075-YF030-B0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,STONE,TRIM1#

main71075-YF030-E0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,FAWN,TRIM4#

main71075-YF040-B0iMCX10..GD200004-200309

SEAT = TYPE D-*104,STONE,TRIM1#

main71075-YF040-E0iMCX10..GD,VXI200004-200309

SEAT = TYPE D-*104,FAWN,TRIM4#

main71075-YF050-B0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,STONE,TRIM1#

main71075-YF050-E0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,FAWN,TRIM4#

main71075-YF060-B0iMCX10..CSX200110-200309

SEAT = TYPE B-*104,STONE,TRIM1#

main71075-YF060-E0iMCX10..CSX200110-200309

SEAT = TYPE B-*104,FAWN,TRIM4#

main71075-YF070-B0iMCX10..CONQ200209-200309

SEAT = TYPE B-*104,STONE,TRIM1#

main71075-YF070-E0iMCX10..CONQ200209-200309

SEAT = TYPE B-*104,FAWN,TRIM4#

main71075-YF080-B0iMCX10..GD200309-200506

LEATHER SEAT,STONE,TRIM1#

main71075-YF080-E0iMCX10..GD200309-200506

LEATHER SEAT,FAWN,TRIM4#

main71075-YF090-B0iMCX10..CSX200309-200506

STONE,TRIM1#

main71075-YF100-B0iMCX10..GD,VXI200309-200506

FABRIC SEAT,STONE,TRIM1#

main71075-YF100-E0iMCX10..GD,VXI200309-200506

FABRIC SEAT,FAWN,TRIM4#

main71075-YF110-B0iMCX10..CONQ200309-200506

SEAT = TYPE A-*104,STONE,TRIM1#

main71075-YF120-B0iMCX10..CONQ200309-200506

SEAT = TYPE B-*104,STONE,TRIM1#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-YF010-B0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,STONE,TRIM1#

main71077-YF010-E0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,FAWN,TRIM4#

main71077-YF020-B0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104 & W(CENTER HEADREST),STONE,TRIM1#

main71077-YF020-E0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104 & W(CENTER HEADREST),FAWN,TRIM4#

main71077-YF030-B0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,STONE,TRIM1#

main71077-YF030-E0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,FAWN,TRIM4#

main71077-YF040-B0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,STONE,TRIM1#

main71077-YF040-E0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,FAWN,TRIM4#

main71077-YF050-B0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,STONE,TRIM1#

main71077-YF050-E0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,FAWN,TRIM4#

main71077-YF060-B0iMCX10..GD200004-200309

SEAT = TYPE D-*104,STONE,TRIM1#

main71077-YF060-E0iMCX10..GD200004-200309

SEAT = TYPE D-*104,FAWN,TRIM4#

main71077-YF070-B0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104 & W(CENTER HEADREST),STONE,TRIM1#

main71077-YF070-E0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104 & W(CENTER HEADREST),FAWN,TRIM4#

main71077-YF080-B0iMCX10..CSX200110-200309

SEAT = TYPE B-*104,STONE,TRIM1#

main71077-YF080-E0iMCX10..CSX200110-200309

SEAT = TYPE B-*104,FAWN,TRIM4#

main71077-YF090-B0iMCX10..CONQ200209-200309

SEAT = TYPE B-*104,STONE,TRIM1#

main71077-YF090-E0iMCX10..CONQ200209-200309

SEAT = TYPE B-*104,FAWN,TRIM4#

main71077-YF100-B1iMCX10..GD200309-200506

LEATHER SEAT,STONE,TRIM1#

main71077-YF100-E1iMCX10..GD200309-200506

LEATHER SEAT,FAWN,TRIM4#

main71077-YF110-B1iMCX10..CSX200309-200506

STONE,TRIM1#

main71077-YF120-B1iMCX10..GD,VXI200309-200506

FABRIC SEAT,STONE,TRIM1#

main71077-YF120-E1iMCX10..GD,VXI200309-200506

FABRIC SEAT,FAWN,TRIM4#

main71077-YF130-B0iMCX10..CONQ200309-200506

SEAT = TYPE A-*104,STONE,TRIM1#

main71077-YF150-B0iMCX10..CONQ200309-200506

SEAT = TYPE B-*104,STONE,TRIM1#

71398AHOLDER, REAR SEATBACK

main71398-AC010iMCX10200004-200309

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-YF010-B0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,STONE,TRIM1#

main71460-YF010-E0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,FAWN,TRIM4#

main71460-YF020-B0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,STONE,TRIM1#

main71460-YF020-E0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,FAWN,TRIM4#

main71460-YF030-B0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,STONE,TRIM1#

main71460-YF030-E0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,FAWN,TRIM4#

main71460-YF040-B0iMCX10..GD200004-200309

SEAT = TYPE D-*104,STONE,TRIM1#

main71460-YF040-E0iMCX10..GD200004-200309

SEAT = TYPE D-*104,FAWN,TRIM4#

main71460-YF050-B0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,STONE,TRIM1#

main71460-YF050-E0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,FAWN,TRIM4#

main71460-YF060-B0iMCX10..CSX200110-200309

SEAT = TYPE B-*104,STONE,TRIM1#

main71460-YF060-E0iMCX10..CSX200110-200309

SEAT = TYPE B-*104,FAWN,TRIM4#

main71460-YF070-B0iMCX10..CONQ200209-200309

SEAT = TYPE B-*104,STONE,TRIM1#

main71460-YF070-E0iMCX10..CONQ200209-200309

SEAT = TYPE B-*104,FAWN,TRIM4#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-YF010-B0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,STONE,TRIM1#

main71480-YF010-E0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,FAWN,TRIM4#

main71480-YF020-B0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104 & W(CENTER HEADREST),STONE,TRIM1#

main71480-YF020-E0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104 & W(CENTER HEADREST),FAWN,TRIM4#

main71480-YF030-B0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,STONE,TRIM1#

main71480-YF030-E0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,FAWN,TRIM4#

main71480-YF040-B0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,STONE,TRIM1#

main71480-YF040-E0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,FAWN,TRIM4#

main71480-YF050-B0iMCX10..GD200004-200309

SEAT = TYPE D-*104,STONE,TRIM1#

main71480-YF050-E0iMCX10..GD200004-200309

SEAT = TYPE D-*104,FAWN,TRIM4#

main71480-YF060-B0iMCX10..CONQ200110-200211

SEAT = TYPE A-*104,STONE,TRIM1#

main71480-YF060-B2iMCX10..CONQ200211-200309

SEAT = TYPE A-*104,STONE,TRIM1#

main71480-YF060-E0iMCX10..CONQ200110-200211

SEAT = TYPE A-*104,FAWN,TRIM4#

main71480-YF060-E2iMCX10..CONQ200211-200309

SEAT = TYPE A-*104,FAWN,TRIM4#

main71480-YF070-B0iMCX10..CONQ200110-200211

SEAT = TYPE A-*104 & W(CENTER HEADREST),STONE,TRIM1#

main71480-YF070-B2iMCX10..CONQ200211-200309

SEAT = TYPE A-*104 & W(CENTER HEADREST),STONE,TRIM1#

main71480-YF070-E0iMCX10..CONQ200110-200211

SEAT = TYPE A-*104 & W(CENTER HEADREST),FAWN,TRIM4#

main71480-YF070-E2iMCX10..CONQ200211-200309

SEAT = TYPE A-*104 & W(CENTER HEADREST),FAWN,TRIM4#

main71480-YF080-B0iMCX10..CSX200110-200211

SEAT = TYPE B-*104,STONE,TRIM1#

main71480-YF080-B1iMCX10..CSX200211-200309

SEAT = TYPE B-*104,STONE,TRIM1#

main71480-YF080-E0iMCX10..CSX200110-200211

SEAT = TYPE B-*104,FAWN,TRIM4#

main71480-YF080-E1iMCX10..CSX200211-200309

SEAT = TYPE B-*104,FAWN,TRIM4#

main71480-YF090-B0iMCX10..CONQ200209-200211

SEAT = TYPE B-*104,STONE,TRIM1#

main71480-YF090-B1iMCX10..CONQ200211-200309

SEAT = TYPE B-*104,STONE,TRIM1#

main71480-YF090-E0iMCX10..CONQ200209-200211

SEAT = TYPE B-*104,FAWN,TRIM4#

main71480-YF090-E1iMCX10..CONQ200211-200309

SEAT = TYPE B-*104,FAWN,TRIM4#

71611PAD, REAR SEAT CUSHION

main71503-YF010iMCX10200004-200110

sub71503-YF011

main71503-YF011iMCX10200110-200309

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-YF010iMCX10..CONQ200004-200309

main71507-YF020iMCX10..CSX,GD,VXI200004-200309

W(CENTER HEADREST)

71931ASUPPORT, REAR SEAT HEADREST

main71930-10070-M0iMCX10200004-200506

W(LOCK),FAWN,TRIM4#

sub71930-32010

sub71930-10070

sub71930-12070

sub71930-32020

main71930-10070-P5iMCX10200004-200506

W(LOCK),STONE,TRIM1#

sub71930-32010

sub71930-10070

sub71930-12070

sub71930-32020

main71931-10020-L9iMCX10..GD,VXI200004-200506

W/O(LOCK),FAWN,TRIM4#

sub71931-32010

sub71931-10020

sub71931-12040

main71931-10020-P4iMCX10200004-200506

W/O(LOCK),STONE,TRIM1#

sub71931-32010

sub71931-10020

sub71931-12040

71940AHEADREST ASSY, REAR SEAT

main71940-YF010-B0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,STONE,TRIM1#

main71940-YF010-E0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,FAWN,TRIM4#

main71940-YF030-B0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,STONE,TRIM1#

main71940-YF030-E0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,FAWN,TRIM4#

main71940-YF050-B0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,STONE,TRIM1#

main71940-YF050-E0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,FAWN,TRIM4#

main71940-YF070-B0iMCX10..GD200004-200309

SEAT = TYPE D-*104,STONE,TRIM1#

main71940-YF070-E0iMCX10..GD,VXI200004-200309

SEAT = TYPE D-*104,FAWN,TRIM4#

main71940-YF090-B0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,STONE,TRIM1#

main71940-YF090-E0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,FAWN,TRIM4#

main71940-YF110-B0iMCX10..CSX200110-200309

SEAT = TYPE B-*104,STONE,TRIM1#

main71940-YF110-E0iMCX10..CSX200110-200309

SEAT = TYPE B-*104,FAWN,TRIM4#

main71940-YF130-B0iMCX10..GD200309-200506

LEATHER SEAT,STONE,TRIM1#

main71940-YF130-E0iMCX10..GD200309-200506

LEATHER SEAT,FAWN,TRIM4#

main71940-YF140-B0iMCX10..CSX200309-200506

STONE,TRIM1#

main71940-YF150-B0iMCX10..GD,VXI200309-200506

FABRIC SEAT,STONE,TRIM1#

main71940-YF150-E0iMCX10..GD,VXI200309-200506

FABRIC SEAT,FAWN,TRIM4#

71970HEADREST ASSY, REAR SEAT

main71940-YF020-B0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,STONE,TRIM1#

main71940-YF020-E0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,FAWN,TRIM4#

main71940-YF040-B0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,STONE,TRIM1#

main71940-YF040-E0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,FAWN,TRIM4#

main71940-YF060-B0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,STONE,TRIM1#

main71940-YF060-E0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,FAWN,TRIM4#

main71940-YF080-B0iMCX10..GD,VXI200004-200309

SEAT = TYPE D-*104,STONE,TRIM1#

main71940-YF080-E0iMCX10..GD,VXI200004-200309

SEAT = TYPE D-*104,FAWN,TRIM4#

main71940-YF100-B0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,STONE,TRIM1#

main71940-YF100-E0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,FAWN,TRIM4#

main71940-YF120-B0iMCX10..CSX200110-200309

SEAT = TYPE B-*104,STONE,TRIM1#

main71940-YF120-E0iMCX10..CSX200110-200309

SEAT = TYPE B-*104,FAWN,TRIM4#

main71940-YF170-B0iMCX10..GD200309-200506

LEATHER SEAT,STONE,TRIM1#

main71940-YF170-E0iMCX10..GD200309-200506

LEATHER SEAT,FAWN,TRIM4#

main71940-YF180-B0iMCX10..CSX200309-200506

STONE,TRIM1#

main71940-YF190-B0iMCX10..GD,VXI200309-200506

FABRIC SEAT,STONE,TRIM1#

main71940-YF190-E0iMCX10..GD,VXI200309-200506

FABRIC SEAT,FAWN,TRIM4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20060iMCX10200205-200309

main72693-32020iMCX10200004-200205

sub72693-20060

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-YF010-B0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,STONE,TRIM1#

main72830-YF010-E0iMCX10..CONQ200004-200110

SEAT = TYPE A-*104,FAWN,TRIM4#

main72830-YF020-B0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,STONE,TRIM1#

main72830-YF020-E0iMCX10..CSX200004-200110

SEAT = TYPE B-*104,FAWN,TRIM4#

main72830-YF030-B0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,STONE,TRIM1#

main72830-YF030-E0iMCX10..GD,VXI200004-200309

SEAT = TYPE C-*104,FAWN,TRIM4#

main72830-YF040-B0iMCX10..GD,VXI200004-200309

SEAT = TYPE D-*104,STONE,TRIM1#

main72830-YF040-E0iMCX10..GD200004-200309

SEAT = TYPE D-*104,FAWN,TRIM4#

main72830-YF050-B0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,STONE,TRIM1#

main72830-YF050-E0iMCX10..CONQ200110-200309

SEAT = TYPE A-*104,FAWN,TRIM4#

main72830-YF060-B0iMCX10..CSX200110-200309

SEAT = TYPE B-*104,STONE,TRIM1#

main72830-YF060-E0iMCX10..CONQ,CSX200110-200309

SEAT = TYPE B-*104,FAWN,TRIM4#

main72830-YF070-B0iMCX10..GD200309-200506

LEATHER SEAT,STONE,TRIM1#

main72830-YF070-E0iMCX10..GD200309-200506

LEATHER SEAT,FAWN,TRIM4#

main72830-YF080-B0iMCX10..CSX200309-200506

STONE,TRIM1#

main72830-YF090-B0iMCX10..GD,VXI200309-200506

FABRIC SEAT,STONE,TRIM1#

main72830-YF090-E0iMCX10..GD,VXI200309-200506

FABRIC SEAT,FAWN,TRIM4#

main72830-YF100-B0iMCX10..CONQ200309-200506

SEAT = TYPE A-*104,STONE,TRIM1#

main72830-YF110-B0iMCX10..CONQ200309-200506

SEAT = TYPE B-*104,STONE,TRIM1#

72860BOX ASSY, REAR SEAT CENTER ARMREST

main72860-YF010iMCX10200004-200309

72885HANDLE, REAR SEAT ARMREST

main72885-YF010iMCX10200004-200309

9010906208

main90109-06208

9011908160

main90119-08160

9017906129

main90179-06129

17 parts on this diagram · 2 diagrams in section
