FRONT SEAT & SEAT TRACK

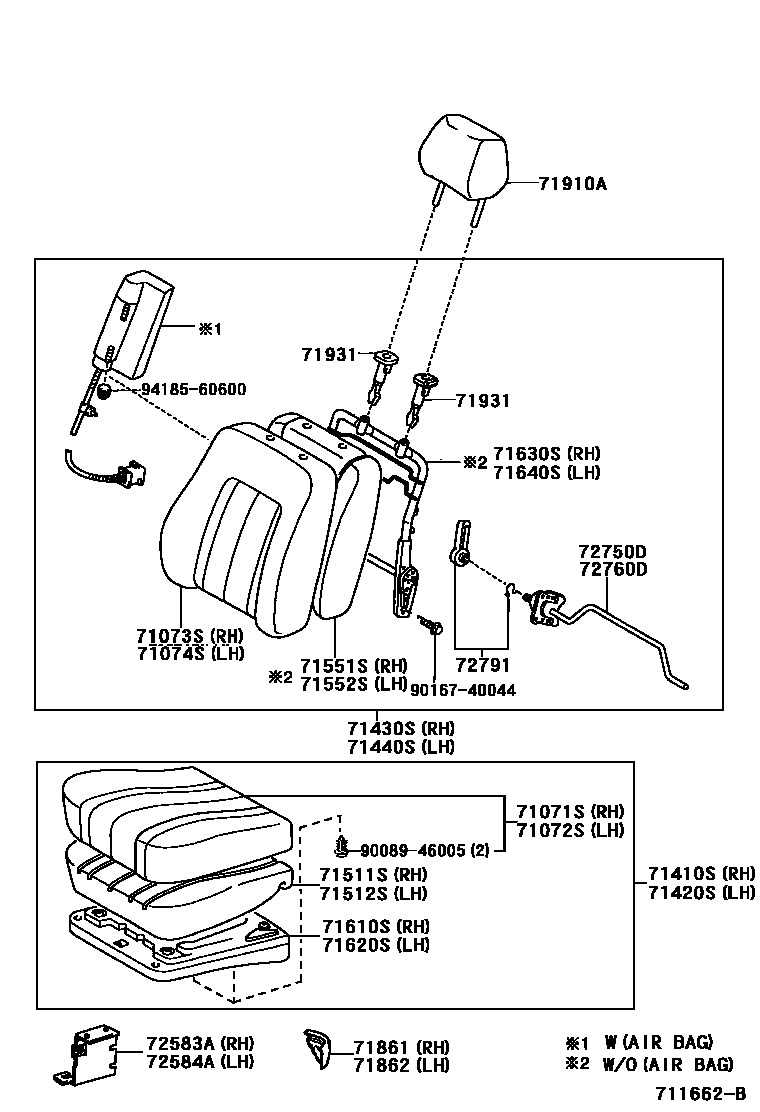

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-YF010-B0i200004-200110
SEAT = TYPE A-*104,STONE,TRIM1#
main71071-YF010-E0i200004-200110
SEAT = TYPE A-*104,FAWN,TRIM4#
main71071-YF020-B0i200004-200110
SEAT = TYPE B-*104,STONE,TRIM1#
main71071-YF020-E0i200004-200110
SEAT = TYPE B-*104,FAWN,TRIM4#
main71071-YF030-B0i200004-200309
SEAT = TYPE C-*104,STONE,TRIM1#
main71071-YF030-E0i200004-200309
SEAT = TYPE C-*104,FAWN,TRIM4#
main71071-YF040-B0i200004-200309
SEAT = TYPE D-*104,STONE,TRIM1#
main71071-YF040-E0i200004-200309
SEAT = TYPE D-*104,FAWN,TRIM4#
main71071-YF050-B0i200110-200309
SEAT = TYPE A-*104,STONE,TRIM1#
main71071-YF050-E0i200110-200309
SEAT = TYPE A-*104,FAWN,TRIM4#
main71071-YF060-B0i200110-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71071-YF060-E0i200110-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71071-YF070-B0i200209-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71071-YF070-E0i200209-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71071-YF080-B1i200309-200506
LEATHER SEAT,STONE,TRIM1#
main71071-YF080-E1i200309-200506
LEATHER SEAT,FAWN,TRIM4#
main71071-YF090-B1i200309-200506
STONE,TRIM1#
main71071-YF100-B1i200309-200506
FABRIC SEAT,STONE,TRIM1#
main71071-YF100-E1i200309-200506
FABRIC SEAT,FAWN,TRIM4#
main71071-YF110-B1i200309-200506
SEAT = TYPE A-*104,STONE,TRIM1#
main71071-YF120-B0i200309-200506
SEAT = TYPE B-*104,STONE,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-YF010-B0i200004-200110
SEAT = TYPE A-*104,STONE,TRIM1#
main71072-YF010-E0i200004-200110
SEAT = TYPE A-*104,FAWN,TRIM4#
main71072-YF020-B0i200004-200110
SEAT = TYPE B-*104,STONE,TRIM1#
main71072-YF020-E0i200004-200110
SEAT = TYPE B-*104,FAWN,TRIM4#
main71072-YF030-B0i200004-200309
SEAT = TYPE C-*104,STONE,TRIM1#
main71072-YF030-E0i200004-200309
SEAT = TYPE C-*104,FAWN,TRIM4#
main71072-YF040-B0i200004-200309
SEAT = TYPE D-*104,STONE,TRIM1#
main71072-YF040-E0i200004-200309
SEAT = TYPE D-*104,FAWN,TRIM4#
main71072-YF050-B0i200110-200309
SEAT = TYPE A-*104,STONE,TRIM1#
main71072-YF050-E0i200110-200309
SEAT = TYPE A-*104,FAWN,TRIM4#
main71072-YF060-B0i200110-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71072-YF060-E0i200110-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71072-YF070-B0i200209-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71072-YF070-E0i200209-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71072-YF080-B1i200309-200506
LEATHER SEAT,STONE,TRIM1#
main71072-YF080-E1i200309-200506
LEATHER SEAT,FAWN,TRIM4#
main71072-YF090-B1i200309-200506
STONE,TRIM1#
main71072-YF100-B1i200309-200506
FABRIC SEAT,STONE,TRIM1#
main71072-YF100-E1i200309-200506
FABRIC SEAT,FAWN,TRIM4#
main71072-YF110-B1i200309-200506
SEAT = TYPE A-*104,STONE,TRIM1#
main71072-YF120-B0i200309-200506
SEAT = TYPE B-*104,STONE,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-YF010-B0i200004-200110
SEAT = TYPE A-*104,STONE,TRIM1#
main71073-YF010-E0i200004-200110
SEAT = TYPE A-*104,FAWN,TRIM4#
main71073-YF020-B0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE A-*104,STONE,TRIM1#
main71073-YF020-E0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE A-*104,FAWN,TRIM4#
main71073-YF030-B0i200004-200110
SEAT = TYPE B-*104,STONE,TRIM1#
main71073-YF030-E0i200004-200110
SEAT = TYPE B-*104,FAWN,TRIM4#
main71073-YF040-B0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE B-*104,STONE,TRIM1#
main71073-YF040-E0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE B-*104,FAWN,TRIM4#
main71073-YF050-B0i200004-200309
SEAT = TYPE C-*104,STONE,TRIM1#
main71073-YF050-E0i200004-200309
SEAT = TYPE C-*104,FAWN,TRIM4#
main71073-YF060-B0i200004-200309
W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1#
main71073-YF060-E0i200004-200309
W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4#
main71073-YF070-B0i200004-200309
SEAT = TYPE D-*104,STONE,TRIM1#
main71073-YF070-E0i200004-200309
SEAT = TYPE D-*104,FAWN,TRIM4#
main71073-YF080-B0i200110-200309
SEAT = TYPE A-*104,STONE,TRIM1#
main71073-YF080-E0i200110-200309
SEAT = TYPE A-*104,FAWN,TRIM4#
main71073-YF090-B0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE A-*104,STONE,TRIM1#
main71073-YF090-E0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE A-*104,FAWN,TRIM4#
main71073-YF100-B0i200110-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71073-YF100-E0i200110-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71073-YF110-B0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE B-*104,STONE,TRIM1#
main71073-YF110-E0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE B-*104,FAWN,TRIM4#
main71073-YF120-B0i200209-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71073-YF120-E0i200209-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71073-YF130-B0i200309-200506
LEATHER SEAT,STONE,TRIM1#
main71073-YF130-E0i200309-200506
LEATHER SEAT,FAWN,TRIM4#
main71073-YF140-B0i200309-200506
STONE,TRIM1#
main71073-YF150-B0i200309-200506
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YF170-B0i200309-200506
FABRIC SEAT,STONE,TRIM1#
main71073-YF170-E0i200309-200506
FABRIC SEAT,FAWN,TRIM4#
main71073-YF180-B0i200309-200506
SEAT = TYPE A-*104,STONE,TRIM1#
main71073-YF190-B0i200309-200506
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,STONE,TRIM1#
main71073-YF200-B0i200309-200506
SEAT = TYPE B-*104,STONE,TRIM1#
main71073-YF210-B0i200309-200506
W(SRS SIDE AIR BAG) & SEAT = TYPE B-*104,STONE,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-YF010-B0i200004-200110
SEAT = TYPE A-*104,STONE,TRIM1#
main71074-YF010-E0i200004-200110
SEAT = TYPE A-*104,FAWN,TRIM4#
main71074-YF020-B0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE A-*104,STONE,TRIM1#
main71074-YF020-E0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE A-*104,FAWN,TRIM4#
main71074-YF030-B0i200004-200110
SEAT = TYPE B-*104,STONE,TRIM1#
main71074-YF030-E0i200004-200110
SEAT = TYPE B-*104,FAWN,TRIM4#
main71074-YF040-B0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE B-*104,STONE,TRIM1#
main71074-YF040-E0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE B-*104,FAWN,TRIM4#
main71074-YF050-B0i200004-200309
SEAT = TYPE C-*104,STONE,TRIM1#
main71074-YF050-E0i200004-200309
SEAT = TYPE C-*104,FAWN,TRIM4#
main71074-YF060-B0i200004-200309
W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1#
main71074-YF060-E0i200004-200309
W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4#
main71074-YF070-B0i200004-200309
SEAT = TYPE D-*104,STONE,TRIM1#
main71074-YF070-E0i200004-200309
SEAT = TYPE D-*104,FAWN,TRIM4#
main71074-YF080-B0i200110-200309
SEAT = TYPE A-*104,STONE,TRIM1#
main71074-YF080-E0i200110-200309
SEAT = TYPE A-*104,FAWN,TRIM4#
main71074-YF090-B0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE A-*104,STONE,TRIM1#
main71074-YF090-E0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE A-*104,FAWN,TRIM4#
main71074-YF100-B0i200110-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71074-YF100-E0i200110-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71074-YF110-B0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE B-*104,STONE,TRIM1#
main71074-YF110-E0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE B-*104,FAWN,TRIM4#
main71074-YF120-B0i200209-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71074-YF120-E0i200209-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71074-YF130-B0i200309-200506
LEATHER SEAT,STONE,TRIM1#
main71074-YF130-E0i200309-200506
LEATHER SEAT,FAWN,TRIM4#
main71074-YF140-B0i200309-200506
STONE,TRIM1#
main71074-YF150-B0i200309-200506
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YF170-B0i200309-200506
FABRIC SEAT,STONE,TRIM1#
main71074-YF170-E0i200309-200506
FABRIC SEAT,FAWN,TRIM4#
main71074-YF180-B0i200309-200506
SEAT = TYPE A-*104,STONE,TRIM1#
main71074-YF190-B0i200309-200506
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,STONE,TRIM1#
main71074-YF200-B0i200309-200506
SEAT = TYPE B-*104,STONE,TRIM1#
main71074-YF210-B0i200309-200506
W(SRS SIDE AIR BAG) & SEAT = TYPE B-*104,STONE,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-YF010-B0i200004-200110
SEAT = TYPE A-*104,STONE,TRIM1#
main71410-YF010-E0i200004-200110
SEAT = TYPE A-*104,FAWN,TRIM4#
main71410-YF020-B0i200004-200110
SEAT = TYPE B-*104,STONE,TRIM1#
main71410-YF020-E0i200004-200110
SEAT = TYPE B-*104,FAWN,TRIM4#
main71410-YF030-B0i200004-200309
SEAT = TYPE C-*104,STONE,TRIM1#
main71410-YF030-E0i200004-200309
SEAT = TYPE C-*104,FAWN,TRIM4#
main71410-YF040-B0i200004-200309
SEAT = TYPE D-*104,STONE,TRIM1#
main71410-YF040-E0i200004-200309
SEAT = TYPE D-*104,FAWN,TRIM4#
main71410-YF090-B0i200110-200309
SEAT = TYPE A-*104,STONE,TRIM1#
main71410-YF090-E0i200110-200309
SEAT = TYPE A-*104,FAWN,TRIM4#
main71410-YF110-B0i200110-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71410-YF110-E0i200110-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71410-YF130-B0i200209-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71410-YF130-E0i200209-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-YF050-B0i200004-200110
SEAT = TYPE A-*104,STONE,TRIM1#
main71410-YF050-E0i200004-200110
SEAT = TYPE A-*104,FAWN,TRIM4#
main71410-YF060-B0i200004-200110
SEAT = TYPE B-*104,STONE,TRIM1#
main71410-YF060-E0i200004-200110
SEAT = TYPE B-*104,FAWN,TRIM4#
main71410-YF070-B0i200004-200309
SEAT = TYPE C-*104,STONE,TRIM1#
main71410-YF070-E0i200004-200309
SEAT = TYPE C-*104,FAWN,TRIM4#
main71410-YF080-B0i200004-200309
SEAT = TYPE D-*104,STONE,TRIM1#
main71410-YF080-E0i200004-200309
SEAT = TYPE D-*104,FAWN,TRIM4#
main71410-YF100-B0i200110-200309
SEAT = TYPE A-*104,STONE,TRIM1#
main71410-YF100-E0i200110-200309
SEAT = TYPE A-*104,FAWN,TRIM4#
main71410-YF120-B0i200110-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71410-YF120-E0i200110-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71410-YF140-B0i200209-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71410-YF140-E0i200209-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-YF010-B0i200004-200110
SEAT = TYPE A-*104,STONE,TRIM1#
main71430-YF010-E0i200004-200110
SEAT = TYPE A-*104,FAWN,TRIM4#
main71430-YF020-B0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE A-*104,STONE,TRIM1#
main71430-YF020-E0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE A-*104,FAWN,TRIM4#
main71430-YF030-B0i200004-200110
SEAT = TYPE B-*104,STONE,TRIM1#
main71430-YF030-E0i200004-200110
SEAT = TYPE B-*104,FAWN,TRIM4#
main71430-YF040-B0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE B-*104,STONE,TRIM1#
main71430-YF040-E0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE B-*104,FAWN,TRIM4#
main71430-YF050-B0i200004-200309
SEAT = TYPE C-*104,STONE,TRIM1#
main71430-YF050-E0i200004-200309
SEAT = TYPE C-*104,FAWN,TRIM4#
main71430-YF060-B0i200004-200309
W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1#
main71430-YF060-E0i200004-200309
W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4#
main71430-YF070-B0i200004-200309
SEAT = TYPE D-*104,STONE,TRIM1#
main71430-YF070-E0i200004-200309
SEAT = TYPE D-*104,FAWN,TRIM4#
main71430-YF080-B0i200110-200309
SEAT = TYPE A-*104,STONE,TRIM1#
main71430-YF080-E0i200110-200309
SEAT = TYPE A-*104,FAWN,TRIM4#
main71430-YF090-B0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE A-*104,STONE,TRIM1#
main71430-YF090-E0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE A-*104,FAWN,TRIM4#
main71430-YF100-B0i200110-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71430-YF100-E0i200110-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71430-YF110-B0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE B-*104,STONE,TRIM1#
main71430-YF110-E0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE B-*104,FAWN,TRIM4#
main71430-YF120-B0i200209-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71430-YF120-E0i200209-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71430-YF130-B0i200309-200506
LEATHER SEAT,STONE,TRIM1#
main71430-YF130-E0i200309-200506
LEATHER SEAT,FAWN,TRIM4#
main71430-YF150-B0i200309-200506
STONE,TRIM1#
main71430-YF170-B0i200309-200506
FABRIC SEAT,STONE,TRIM1#
main71430-YF170-E0i200309-200506
FABRIC SEAT,FAWN,TRIM4#
main71430-YF190-B0i200309-200506
SEAT = TYPE A-*104,STONE,TRIM1#
main71430-YF210-B0i200309-200506
W(POWER SEAT),STONE,TRIM1#
main71430-YF230i200309-200506
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-YF010-B0i200004-200110
SEAT = TYPE A-*104,STONE,TRIM1#
main71440-YF010-E0i200004-200110
SEAT = TYPE A-*104,FAWN,TRIM4#
main71440-YF020-B0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE A-*104,STONE,TRIM1#
main71440-YF020-E0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE A-*104,FAWN,TRIM4#
main71440-YF030-B0i200004-200110
SEAT = TYPE B-*104,STONE,TRIM1#
main71440-YF030-E0i200004-200110
SEAT = TYPE B-*104,FAWN,TRIM4#
main71440-YF040-B0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE B-*104,STONE,TRIM1#
main71440-YF040-E0i200004-200110
W(SIDE AIR BAG) & SEAT = TYPE B-*104,FAWN,TRIM4#
main71440-YF050-B0i200004-200309
SEAT = TYPE C-*104,STONE,TRIM1#
main71440-YF050-E0i200004-200309
SEAT = TYPE C-*104,FAWN,TRIM4#
main71440-YF060-B0i200004-200309
W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1#
main71440-YF060-E0i200004-200309
W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4#
main71440-YF070-B0i200004-200309
SEAT = TYPE D-*104,STONE,TRIM1#
main71440-YF070-E0i200004-200309
SEAT = TYPE D-*104,FAWN,TRIM4#
main71440-YF080-B0i200110-200309
SEAT = TYPE A-*104,STONE,TRIM1#
main71440-YF080-E0i200110-200309
SEAT = TYPE A-*104,FAWN,TRIM4#
main71440-YF090-B0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE A-*104,STONE,TRIM1#
main71440-YF090-E0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE A-*104,FAWN,TRIM4#
main71440-YF100-B0i200110-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71440-YF100-E0i200110-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71440-YF110-B0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE B-*104,STONE,TRIM1#
main71440-YF110-E0i200110-200309
W(SIDE AIR BAG) & SEAT = TYPE B-*104,FAWN,TRIM4#
main71440-YF120-B0i200209-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71440-YF120-E0i200209-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71440-YF130-B0i200309-200506
LEATHER SEAT,STONE,TRIM1#
main71440-YF130-E0i200309-200506
LEATHER SEAT,FAWN,TRIM4#
main71440-YF150-B0i200309-200506
STONE,TRIM1#
main71440-YF170-B0i200309-200506
FABRIC SEAT,STONE,TRIM1#
main71440-YF170-E0i200309-200506
FABRIC SEAT,FAWN,TRIM4#
main71440-YF190-B0i200309-200506
SEAT = TYPE A-*104,STONE,TRIM1#
main71440-YF210-B0i200309-200506
SEAT = TYPE B-*104,STONE,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-YF010i200004-200309
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-YF010i200004-200309
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-YF010i200004-200309
main71551-YF030i200004-200309
W(LUMBER SUPPORT) & W/O(SIDE AIR BAG)
main71551-YF030i200309
W(POWER SEAT)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-YF010i200004-200309
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71011-YC040i200004-200309
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71011-YC040i200004-200309
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71013-YC040i200004-200309
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71013-YC040i200004-200309
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-33020-B1i200004-200506
STONE,TRIM1#
sub71861-33020
main71861-33020-E1i200004-200506
FAWN,TRIM4#
sub71861-33020
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-33030-B1i200004-200506
STONE,TRIM1#
sub71862-33030
main71862-33030-E1i200004-200506
FAWN,TRIM4#
sub71862-33030
71910AHEADREST ASSY, FRONT SEAT
main71910-YF010-B1i200004-200110
SEAT = TYPE A-*104,STONE,TRIM1#
main71910-YF010-E1i200004-200110
SEAT = TYPE A-*104,FAWN,TRIM4#
main71910-YF020-B1i200004-200110
SEAT = TYPE B-*104,STONE,TRIM1#
main71910-YF020-E1i200004-200110
SEAT = TYPE B-*104,FAWN,TRIM4#
main71910-YF030-B2i200004-200309
SEAT = TYPE C-*104,STONE,TRIM1#
main71910-YF030-E2i200004-200309
SEAT = TYPE C-*104,FAWN,TRIM4#
main71910-YF040-B1i200004-200309
SEAT = TYPE D-*104,STONE,TRIM1#
main71910-YF040-E1i200004-200309
SEAT = TYPE D-*104,FAWN,TRIM4#
main71910-YF050-B1i200110-200309
SEAT = TYPE A-*104,STONE,TRIM1#
main71910-YF050-E1i200110-200309
SEAT = TYPE A-*104,FAWN,TRIM4#
main71910-YF060-B1i200110-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71910-YF060-E1i200110-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71910-YF070-B0i200209-200309
SEAT = TYPE B-*104,STONE,TRIM1#
main71910-YF070-E0i200209-200309
SEAT = TYPE B-*104,FAWN,TRIM4#
main71910-YF080-B0i200309-200506
LEATHER SEAT,STONE,TRIM1#
main71910-YF080-E0i200309-200506
LEATHER SEAT,FAWN,TRIM4#
main71910-YF090-B0i200309-200506
STONE,TRIM1#
main71910-YF100-B0i200309-200506
FABRIC SEAT,STONE,TRIM1#
main71910-YF100-E0i200309-200506
FABRIC SEAT,FAWN,TRIM4#
main71910-YF110-B0i200309-200506
SEAT = TYPE A-*104,STONE,TRIM1#
main71910-YF120-B0i200401-200506
SEAT = TYPE B-*104,STONE,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-32020-L1i200004-200506
W(LOCK),FAWN,TRIM4#
sub71930-32020
main71930-32020-P3i200004-200506
W(LOCK),STONE,TRIM1#
sub71930-32020
main71931-32020-L2i200004-200506
W/O(LOCK),FAWN,TRIM4#
sub71931-32020
main71931-32020-P8i200004-200506
W/O(LOCK),STONE,TRIM1#
sub71931-32020
72583ABRACKET, SEAT SIDE GARNISH, RH
main72583-33020i200004-200309
72584ABRACKET, SEAT SIDE GARNISH, LH
main72584-33010i200004-200309
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-33030i200309
W(POWER SEAT)
main72750-33030i200004-200309
main72750-YC010i200004-200309
sub72750-33020
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-YC010i200004-200309
72791LEVER, LUMBAR SUPPORT
main72791-YC010-B1i200309-200506
W(POWER SEAT),STONE,TRIM1#
main72791-YC010-B1i200004-200506
STONE,TRIM1#
main72791-YC010-E1i200004-200506
FAWN,TRIM4#
9008946005
main90089-46005
9016740044
main90167-40044
9418560600
main94185-60600

28 parts on this diagram · 5 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
