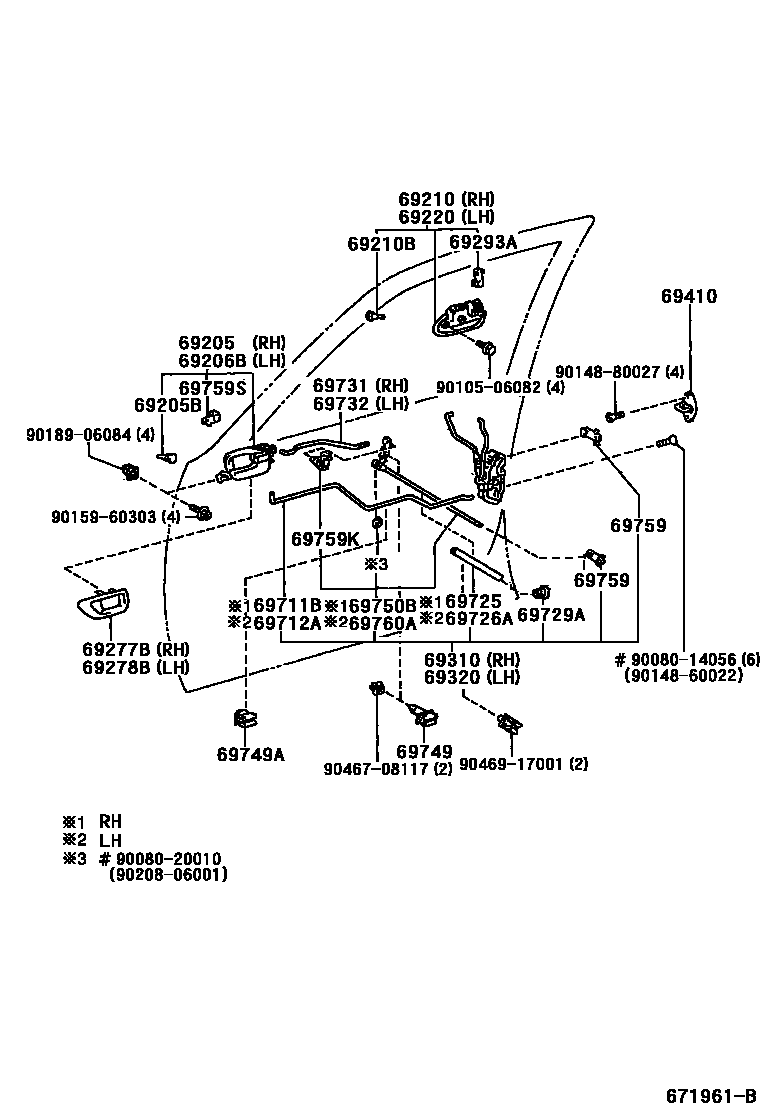

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-07010-B0iMCX10..CONQ,CSX200004-200211

DK. STONE,TRIM1#

sub69205-YF020

main69205-07010-C0iMCX10..GD,VXI200004-200211

BLACK,TRIM1#,4#

sub69205-YF020

main69205-07010-E3iMCX10..CONQ,CSX200004-200211

SANDAL WOOD,TRIM4#

sub69205-YF020

main69205-YF010iMCX10..GD,VXI200309-200506

main69205-YF020-B0iMCX10..CONQ,CSX200211-200309

DK. STONE,TRIM1#

main69205-YF020-C0iMCX10..GD,VXI200211-200309

BLACK,TRIM1#,4#

main69205-YF020-C0iMCX10..CONQ,CSX200309-200506

BLACK,TRIM1#

main69205-YF020-E0iMCX10..CONQ,CSX200211-200309

SANDAL WOOD,TRIM4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005iMCX10200004-200309

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-07010-B0iMCX10..CONQ,CSX200004-200211

DK. STONE,TRIM1#

sub69206-YF020

main69206-07010-C0iMCX10..GD,VXI200004-200211

BLACK,TRIM1#,4#

sub69206-YF020

main69206-07010-E3iMCX10..CONQ,CSX200004-200211

SANDAL WOOD,TRIM4#

sub69206-YF020

main69206-YF010iMCX10..GD,VXI200309-200506

main69206-YF020-B0iMCX10..CONQ,CSX200211-200309

DK. STONE,TRIM1#

main69206-YF020-C0iMCX10..CONQ,CSX200309-200506

BLACK,TRIM1#

main69206-YF020-C0iMCX10..GD,VXI200211-200309

BLACK,TRIM1#,4#

main69206-YF020-E0iMCX10..CONQ,CSX200211-200309

SANDAL WOOD,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-YF010-A0iMCX10..CSX,GD,VXI200004-200506

DIAMOND WHITE,061

main69210-YF010-B0iMCX10..CSX,GD,VXI200004-200506

SILVER M,173

main69210-YF010-C0iMCX10..CSX,GD,VXI200402-200506

BLACK MC.,209

main69210-YF010-D0iMCX10..GD200108-200309

DK. RED MC.,2HR ,2HW ,3N6

main69210-YF010-D0iMCX10..VXI200004-200506

DK. RED MC.,3N6

main69210-YF010-D1iMCX10..GD,VXI200107-200309

DK.RED MC.,3N4

main69210-YF010-D2iMCX10..CSX,GD,VXI200309-200506

RED M.M.,3N8

main69210-YF010-E0iMCX10..VXI200004-200309

LT.BEIGE ME.OP.,4N5

main69210-YF010-E0iMCX10..GD200108-200309

LT.BEIGE ME.OP.,2HS ,4N5

main69210-YF010-F0iMCX10..CSX,GD,VXI200208-200506

CHAMPAGNE ME.,583

main69210-YF010-G0iMCX10..GD200004-200107

DK. GREEN M.M.,2GH ,6P3

main69210-YF010-G0iMCX10..GD,VXI200107-200208

DK. GREEN M.M.,6P3

main69210-YF010-G1iMCX10..CSX,VXI200004-200309

LT.GREEN ME.OP.,6P7

main69210-YF010-G1iMCX10..GD200004-200208

LT.GREEN ME.OP.,2GN ,6P7

main69210-YF010-G2iMCX10..GD,VXI200004-200309

MD.GREEN ME.,6P8

main69210-YF010-G3iMCX10200208-200309

DARK GREEN MC.,6R4

main69210-YF010-G4iMCX10..CSX,GD,VXI200309-200506

LT.GREEN M.M.,6S8

main69210-YF010-J0iMCX10..GD,VXI200004-200208

DK.BLUE M.M.,8L3

main69210-YF010-J1iMCX10..CSX,GD,VXI200004-200208

DK.BLUE ME.,8N3

main69210-YF010-J2iMCX10..CSX,GD,VXI200208-200309

DK.BLUE MC.,8N8

main69210-YF010-J3iMCX10..CSX,GD,VXI200208-200506

DK.BLUE M.M.,8P4

main69210-YF010-J4iMCX10..CSX,GD,VXI200309-200506

PALE BLUE M.M.,8R0

main69210-YF020iMCX10..CONQ,CSX200004-200506

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90089-54015iMCX10200004-200309

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-YF010-A0iMCX10..CSX,GD,VXI200004-200506

DIAMOND WHITE,061

main69220-YF010-B0iMCX10..CSX,GD,VXI200004-200506

SILVER M,173

main69220-YF010-C0iMCX10..CSX,GD,VXI200402-200506

BLACK MC.,209

main69220-YF010-D0iMCX10..GD200108-200309

DK. RED MC.,2HR ,2HW ,3N6

main69220-YF010-D0iMCX10..VXI200004-200506

DK. RED MC.,3N6

main69220-YF010-D1iMCX10..GD,VXI200107-200309

DK.RED MC.,3N4

main69220-YF010-D2iMCX10..CSX,GD,VXI200309-200506

RED M.M.,3N8

main69220-YF010-E0iMCX10..GD200004-200309

LT.BEIGE ME.OP.,4N5

main69220-YF010-E0iMCX10..GD200108-200309

LT.BEIGE ME.OP.,2HS ,4N5

main69220-YF010-F0iMCX10..CSX,GD,VXI200208-200506

CHAMPAGNE ME.,583

main69220-YF010-G0iMCX10..GD200004-200107

DK. GREEN M.M.,2GH ,6P3

main69220-YF010-G0iMCX10..GD,VXI200107-200208

DK. GREEN M.M.,6P3

main69220-YF010-G1iMCX10..GD200004-200208

LT.GREEN ME.OP.,2GN ,6P7

main69220-YF010-G1iMCX10..VXI200004-200309

LT.GREEN ME.OP.,6P7

main69220-YF010-G2iMCX10..CSX,GD,VXI200004-200309

MD.GREEN ME.,6P8

main69220-YF010-G3iMCX10..CSX,GD,VXI200208-200309

DARK GREEN MC.,6R4

main69220-YF010-G4iMCX10..CSX,GD,VXI200309-200506

LT.GREEN M.M.,6S8

main69220-YF010-J0iMCX10..GD,VXI200004-200208

DK.BLUE M.M.,8L3

main69220-YF010-J1iMCX10..GD,VXI200004-200208

DK.BLUE ME.,8N3

main69220-YF010-J2iMCX10200208-200309

DK.BLUE MC.,8N8

main69220-YF010-J3iMCX10..CSX,GD,VXI200208-200506

DK.BLUE M.M.,8P4

main69220-YF010-J4iMCX10..CSX,GD,VXI200309-200506

PALE BLUE M.M.,8R0

main69220-YF020iMCX10..CONQ200004-200506

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-07011iMCX10..GD,VXI200004-200309

main69277-07020-B0iMCX10..CSX200004-200209

DK. STONE,TRIM1#

main69277-07020-B0iMCX10..CONQ,CSX200209-200309

W(TWEETER SPEAKER),DK. STONE,TRIM1#

main69277-07020-E3iMCX10..CONQ,CSX200209-200309

W(TWEETER SPEAKER),SANDAL WOOD,TRIM4#

main69277-07020-E3iMCX10..CSX200004-200209

SANDAL WOOD,TRIM4#

main69277-07030-B0iMCX10..CONQ200004-200309

DK. STONE,TRIM1#

main69277-07030-E3iMCX10..CONQ200004-200309

SANDAL WOOD,TRIM4#

main69277-YF010iMCX10..CONQ,CSX200309

W(TWEETER SPEAKER)

main69277-YF020iMCX10..CONQ200309

main69277-YF030iMCX10..GD,VXI200309

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-07011iMCX10..GD,VXI200004-200309

main69278-07020-B0iMCX10..CONQ,CSX200209-200309

W(TWEETER SPEAKER),DK. STONE,TRIM1#

main69278-07020-B0iMCX10..CSX200004-200209

DK. STONE,TRIM1#

main69278-07020-E3iMCX10..CSX200004-200209

SANDAL WOOD,TRIM4#

main69278-07020-E3iMCX10..CONQ,CSX200209-200309

W(TWEETER SPEAKER),SANDAL WOOD,TRIM4#

main69278-07030-B0iMCX10..CONQ200004-200309

DK. STONE,TRIM1#

main69278-07030-E3iMCX10..CONQ200004-200309

SANDAL WOOD,TRIM4#

main69278-YF010iMCX10..CONQ,CSX200309

W(TWEETER SPEAKER)

main69278-YF020iMCX10..CONQ200309

main69278-YF030iMCX10..GD,VXI200309

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-YA010iMCX10200004-200309

RH

sub69293-12030

main69293-YA020iMCX10200004-200309

LH

sub69293-12040

69310LOCK ASSY, FRONT DOOR, RH

main69030-07010iMCX10200004-200309

69320LOCK ASSY, FRONT DOOR, LH

main69040-07010iMCX10200004-200309

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-AC010iMCX10200004-200309

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-AC010iMCX10200004-200309

sub69711-AC011

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-AC010iMCX10200004-200309

sub69712-AC011

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-AC020iMCX10200004-200309

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69725-AC020iMCX10200004-200309

69729ARETAINER, DOOR LOCKING LINK PROTECTOR

main69729-AA010iMCX10200004-200309

69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-AC010iMCX10200004-200309

69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-AC010iMCX10200004-200309

69749CLAMP, FRONT DOOR LOCK LINK

main69749-33010iMCX10200004-200309

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-50010iMCX10200004-200309

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-AC010iMCX10200004-200309

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-AA010iMCX10200004-200309

GREEN

main69759-AA020iMCX10200004-200309

GRAY

main69759-AA030iMCX10200004-200309

YELLOW

main69759-AA040iMCX10200004-200309

BEIGE

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-AC010iMCX10200004-200309

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-03020iMCX10200004-200309

LH

main69759-06030iMCX10200004-200309

RH

sub69759-24070

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-AC010iMCX10200004-200309

9008014056

main90080-14056

9008020010

main90080-20010

9010506082

main90105-06082

9014860022

main90148-60022

9014880027

main90148-80027

9015960303

main90159-60303

9018906084

main90189-06084

9020806001

main90208-06001

9046708117

main90467-08117

9046917001

main90469-17001

36 parts on this diagram · 1 diagram in section
