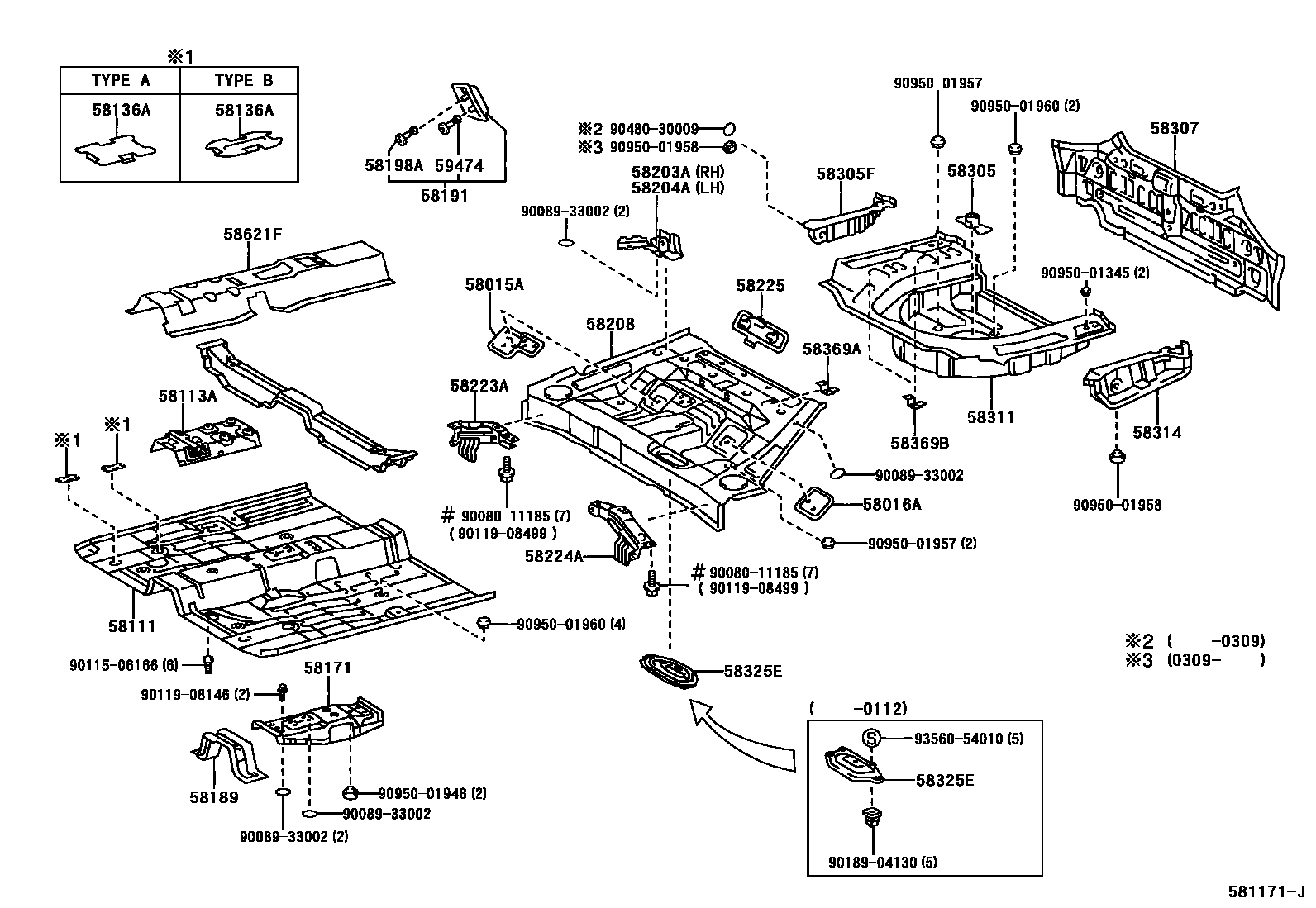

FLOOR PAN & LOWER BACK PANEL

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-YF010iMCX10200004-200309

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-YC010iMCX10200004-200309

sub58016-33010

58111PAN, FRONT FLOOR

main58111-YF010iMCX10200004-200101

sub58111-YF011

main58111-YF011iMCX10200101-200202

main58111-YF012iMCX10200202-200309

58113APANEL, FRONT FLOOR, CENTER

main58013-33040iMCX10200004-200309

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-06010iMCX10200309-200506

TYPE A:REFER ILLUST.

main58136-06010iMCX10200208-200309

TYPE A:REFER TO ILLUSTRATION

main58136-06020iMCX10200309-200506

TYPE B:REFER ILLUST.

sub58136-33010

main58136-06020iMCX10200208-200309

TYPE B:REFER TO ILLUSTRATION

sub58136-33010

main58136-12020iMCX10200004-200208

TYPE A:REFER TO ILLUSTRATION

main58136-33010iMCX10200004-200208

TYPE B:REFER TO ILLUSTRATION

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-06030iMCX10200202-200309

main58107-33030iMCX10200004-200202

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-06030iMCX10200208-200309

sub58189-33020

main58189-33020iMCX10200004-200208

58191FOOTREST, FRONT FLOOR

main58191-YF010iMCX10200004-200309

58198ACLIP, FOOTREST, NO.1

main58198-YC010iMCX10200004-200309

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58213-33010iMCX10200004-200309

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58214-33010iMCX10200004-200309

58208PAN, CENTER FLOOR

main58211-YF010iMCX10200004-200110

main58211-YF011iMCX10200110-200309

58223AREINFORCEMENT, FLOOR SIDE PANEL, RH

main58223-06020iMCX10200208-200309

sub58223-33010

main58223-33010iMCX10200004-200208

58224AREINFORCEMENT, FLOOR SIDE PANEL, LH

main58224-06020iMCX10200208-200309

sub58224-33010

main58224-33010iMCX10200004-200208

58225HOLDER, REAR SEAT CUSHION

main58225-YF010iMCX10200004-200309

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-YC010iMCX10200004-200309

sub58351-33010

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-YF010iMCX10200004-200106

sub58305-YF020

main58305-YF020iMCX10200106-200309

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-YF010iMCX10200004-200506

58311PAN, REAR FLOOR

main58311-YF010iMCX10200004-200110

sub58311-YF011

main58311-YF011iMCX10200110-200309

58314PANEL, REAR FLOOR SIDE, LH

main58314-YF010iMCX10200004-200309

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-33010iMCX10200004-200112

main58325-YC020iMCX10200112-200309

58369ABRACKET, FUEL TUBE, NO.3

main58369-YB010iMCX10200004-200309

sub58369-32010

58369BBRACKET, FUEL TUBE, NO.3

main58369-YB010iMCX10200004-200309

sub58369-32010

58621FSILENCER, CENTER CONSOLE, NO.1

main58621-41010iMCX10200004-200210

main58621-YC020iMCX10200210-200309

59474CAP, FRONT FLOOR FOOTREST NO.2

main59474-YC010iMCX10200004-200309

9008011185

main90080-11185

9008933002

main90089-33002

9011506166

main90115-06166

9011908146

main90119-08146

9011908499

main90119-08499

9018904130

main90189-04130

9048030009

main90480-30009

9095001345

main90950-01345

9095001948

main90950-01948

9095001957

main90950-01957

9095001958

main90950-01958

9095001960

main90950-01960

9356054010

main93560-54010

38 parts on this diagram · 1 diagram in section
