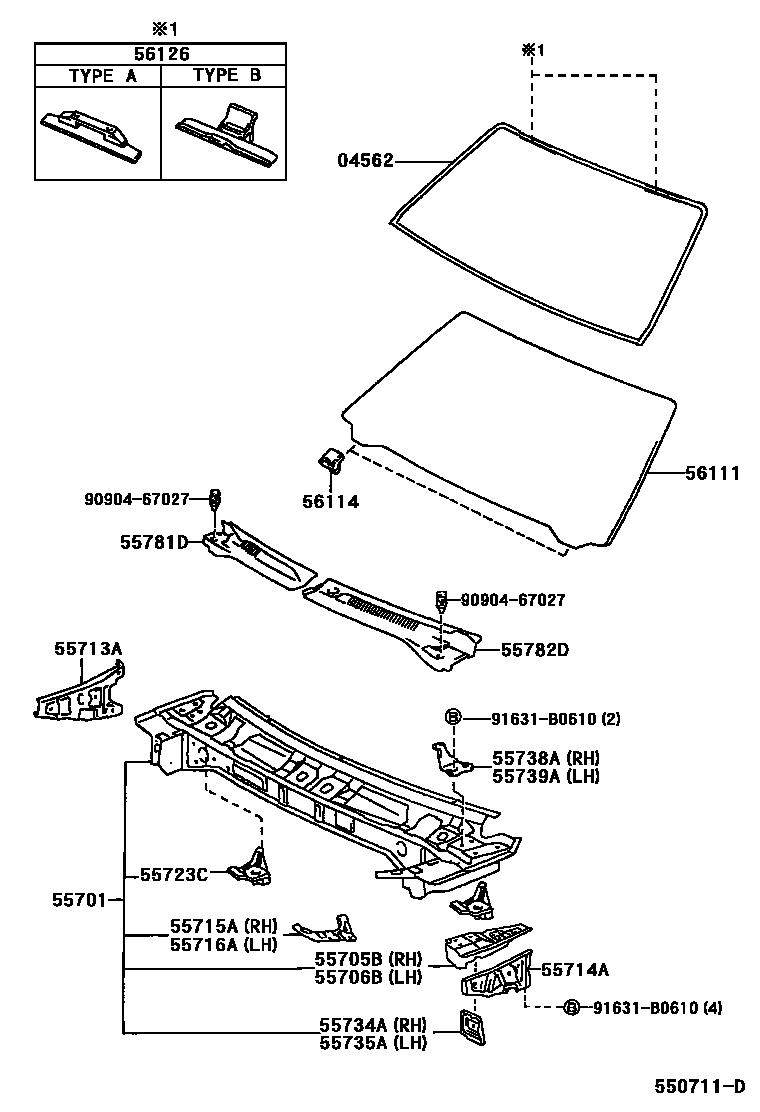

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iMCX10200004-200309

55701PANEL SUB-ASSY, COWL

main55700-07020iMCX10200004-200506

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-07010iMCX10200004-200309

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-07010iMCX10200004-200309

55713APANEL, COWL TOP SIDE, RH

main55713-YF010iMCX10200004-200506

55714APANEL, COWL TOP SIDE, LH

main55714-YF010iMCX10200004-200506

55715ABRACE, COWL TOP TO APRON, RH

main55715-33010iMCX10200004-200309

55716ABRACE, COWL TOP TO APRON, LH

main55716-33010iMCX10200004-200309

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-07010iMCX10200004-200309

55734APLATE, WATER GUARD, RH

main55734-06010iMCX10200004-200309

main55734-06010iMCX10200309

(L)

main55734-33010iMCX10200309

(J)

55735APLATE, WATER GUARD, LH

main55735-06010iMCX10200309

(L)

main55735-06010iMCX10200004-200309

main55735-33010iMCX10200309

(J)

55738ASTOPPER, HOOD, RH

main55738-07010iMCX10200004-200309

55739ASTOPPER, HOOD, LH

main55739-07010iMCX10200004-200309

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-YF010iMCX10200004-200309

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-YF010iMCX10200004-200309

56111GLASS, WINDSHIELD

main56101-YF010iMCX10200004-200110

*LAM,T=4.9,GREEN

main56101-YF020iMCX10200110-200309

*LAM,T=4.7,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-33010iMCX10200004-200309

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-22030iMCX10200004-200309

TYPE A

main56126-30010iMCX10200004-200309

TYPE B

9090467027

main90904-67027

91631B0610

main91631-B0610

20 parts on this diagram · 1 diagram in section
