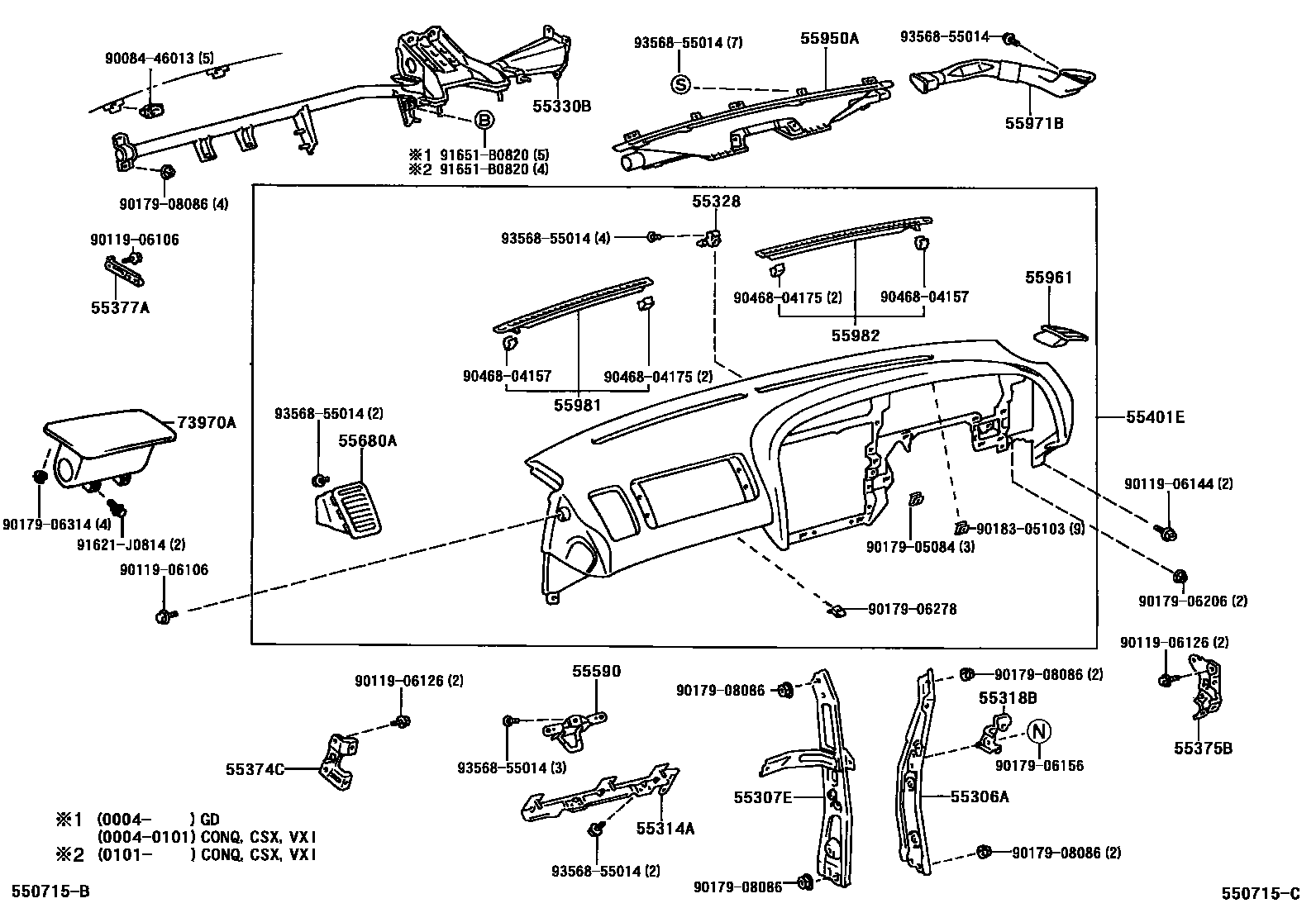

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55351-41010iMCX10200004-200309

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-41010iMCX10200004-200309

55314APANEL, INSTRUMENT, LOWER CENTER

main55314-41010iMCX10200004-200309

55318BEXTENSION, INSTRUMENT PANEL

main55319-41010iMCX10200309

55328PIN, INSTRUMENT PANEL, NO.1

main55346-YF010×4iMCX10200004-200309

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-YF010iMCX10..CONQ,CSX,VXI200004-200101

main55330-YF020iMCX10..GD200004-200309

main55330-YF030iMCX10..CONQ,CSX,VXI200309

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-AC020iMCX10200004-200309

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-AC010iMCX10200004-200309

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-41010iMCX10200004-200309

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-YF010-B0iMCX10200309-200506

DK. STONE,TRIM1#

main55401-YF010-E0iMCX10..GD,VXI200309-200506

SANDAL WOOD,TRIM4#

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-YF010iMCX10200004-200309

55680AREGISTER ASSY, INSTRUMENT PANEL, NO.4

main55680-AC020-B0iMCX10200309-200506

DK. STONE,TRIM1#

main55680-AC020-E3iMCX10..GD,VXI200309-200506

SANDAL WOOD,TRIM4#

55950ANOZZLE ASSY, DEFROSTER

main55950-YF010iMCX10200004-200309

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-AC020-B0iMCX10200004-200309

DK. STONE,TRIM1#

main55961-AC020-E2iMCX10200004-200309

SANDAL WOOD,TRIM4#

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-YF010iMCX10200004-200309

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-AC010iMCX10200004-200309

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-AC010iMCX10200004-200309

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-07020-B0iMCX10200004-200102

DK. STONE,TRIM1#

main73970-07020-E1iMCX10200004-200102

SANDAL WOOD,TRIM4#

main73970-07021-B0iMCX10200102-200309

DK. STONE,TRIM1#

main73970-07021-E1iMCX10..GD,VXI200309-200506

SANDAL WOOD,TRIM4#

9008446013

main90084-46013

9011906106

main90119-06106

9011906126

main90119-06126

9011906144

main90119-06144

9017905084

main90179-05084

9017906156

main90179-06156

9017906206

main90179-06206

9017906278

main90179-06278

9017906314

main90179-06314

9017908086

main90179-08086

9018305103

main90183-05103

9046804157

main90468-04157

9046804175

main90468-04175

91621J0814

main91621-J0814

91651B0820

main91651-B0820

9356855014

main93568-55014

34 parts on this diagram · 2 diagrams in section
