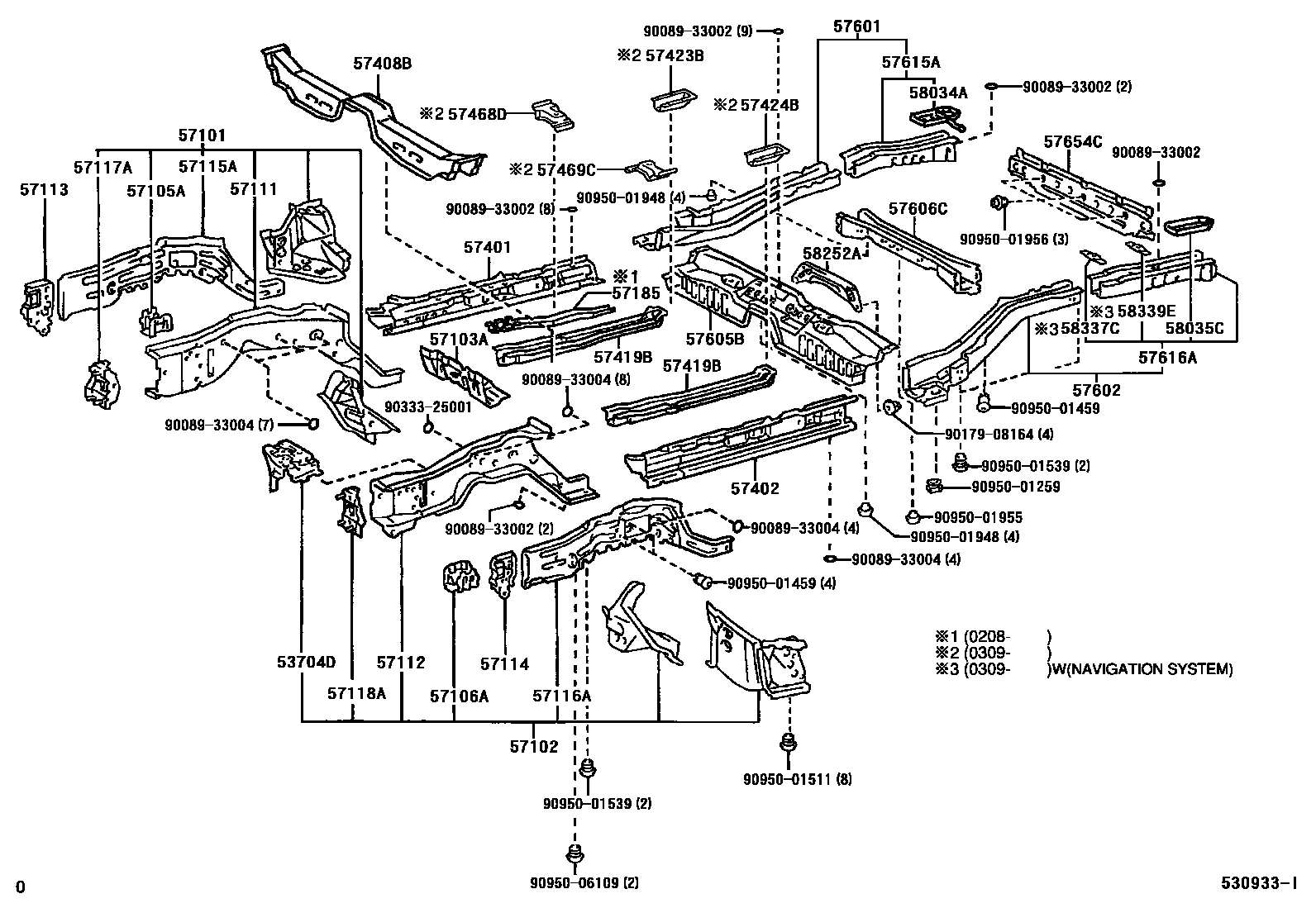

FLOOR SIDE MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-YC010iMCX10200309

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-YC022iMCX10200004-200101

main57101-YF010iMCX10200101-200208

main57101-YF011iMCX10200208-200309

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-YC022iMCX10200004-200208

main57102-YC023iMCX10200208-200309

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-06030iMCX10200309-200506

main57103-YC010iMCX10200004-200202

main57103-YC011iMCX10200202-200208

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-06020iMCX10200208-200309

main57105-33020iMCX10200004-200208

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-06020iMCX10200208-200309

main57106-33020iMCX10200004-200208

57111MEMBER, FRONT SIDE, RH

main57111-YC011iMCX10200004-200208

main57111-YC012iMCX10200208-200309

57112MEMBER, FRONT SIDE, LH

main57112-YC011iMCX10200004-200208

main57112-YC012iMCX10200208-200309

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-33030iMCX10200004-200309

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-33030iMCX10200004-200309

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-YC010iMCX10200004-200309

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-YC010iMCX10200004-200309

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57033-YC010iMCX10200004-200208

main57033-YC011iMCX10200208-200309

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57034-YC010iMCX10200004-200208

main57034-YC011iMCX10200208-200309

57185REINFORSEMENT, FRONT SIDE MEMBER, REAR NO.1 INNER RH

main57185-06010iMCX10200309

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-YF010iMCX10200309-200506

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-YF010iMCX10200004-200309

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57451-YC020iMCX10200309

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-06050×2iMCX10200208-200309

main57419-YC020×2iMCX10200004-200101

main57419-YC021×2iMCX10200101-200208

57423BREINFORCEMENT, FRONT FLOOR UNDER, INNER RH

main57423-YF010iMCX10200309

57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH

main57423-YF010iMCX10200309

57468DBRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-YC020iMCX10200309

57469CBRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-YC020iMCX10200309

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-YF010iMCX10200309

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-YF010iMCX10200004-200309

main57602-YF020iMCX10..GD200110-200309

W(NAVIGATION SYSTEM)

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-YF010iMCX10200004-200309

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-YF010iMCX10200309

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-07900iMCX10200004-200309

sub57615-07901

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-07902iMCX10200004-200309

main57616-07903iMCX10..GD200309

W(NAVIGATION SYSTEM)

sub57616-07904

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-YC010iMCX10200309

sub57654-33010

58034ABRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR

main58034-41010iMCX10200004-200309

58035CEXTENSION SUB-ASSY, REAR FLOOR, FRONT

main58035-41010iMCX10200004-200309

58252ABRACE, FLOOR PANEL, REAR

main58252-33010iMCX10200004-200309

58337CREINFORCEMENT, REAR FLOOR PAN, NO.1 LH

main58337-33010iMCX10..GD200309

58339EREINFORCEMENT, REAR FLOOR PAN, NO.2 LH

main58339-33010iMCX10..GD200309

9008933002

main90089-33002

9008933004

main90089-33004

9017908164

main90179-08164

9033325001

main90333-25001

9095001259

main90950-01259

9095001459

main90950-01459

9095001511

main90950-01511

9095001539

main90950-01539

9095001948

main90950-01948

9095001955

main90950-01955

9095001956

main90950-01956

9095006109

main90950-06109

47 parts on this diagram · 1 diagram in section
