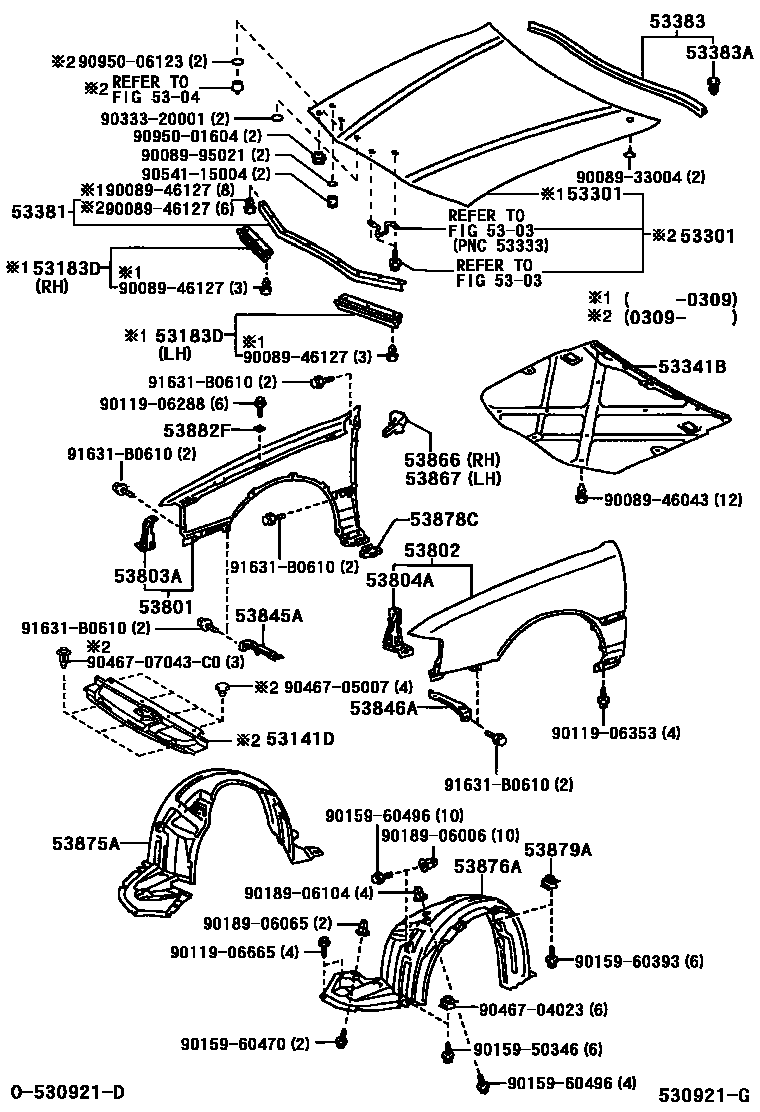

HOOD & FRONT FENDER
5303
5304
53141DCOVER, RADIATOR
53183DSEAL, HEADLAMP COVER TO HOOD
53341BINSULATOR, HOOD
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53803ABRACKET SUB-ASSY, FRONT SIDE PANEL, RH
53804ABRACKET SUB-ASSY, FRONT SIDE PANEL, LH
53845ABRACE, FRONT WHEEL OPENING APRON, RH
53846ABRACE, FRONT WHEEL OPENING APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
sub53866-41020
53867SEAL, FRONT FENDER TO COWL SIDE, LH
sub53867-41020
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
53882FSEAL, FRONT FENDER
9008933004
main90089-33004
9008946043
main90089-46043
9008946127
main90089-46127
9008995021
main90089-95021
9011906288
main90119-06288
9011906353
main90119-06353
9011906665
main90119-06665
9015950346
main90159-50346
9015960393
main90159-60393
9015960470
main90159-60470
9015960496
main90159-60496
9018906006
main90189-06006
9018906065
main90189-06065
9018906104
main90189-06104
9033320001
main90333-20001
9046704023
main90467-04023
9046705007
main90467-05007
9046707043C0
main90467-07043C0
9054115004
main90541-15004
9095001604
main90950-01604
9095006123
main90950-06123
91631B0610
main91631-B0610
44 parts on this diagram · 1 diagram in section
