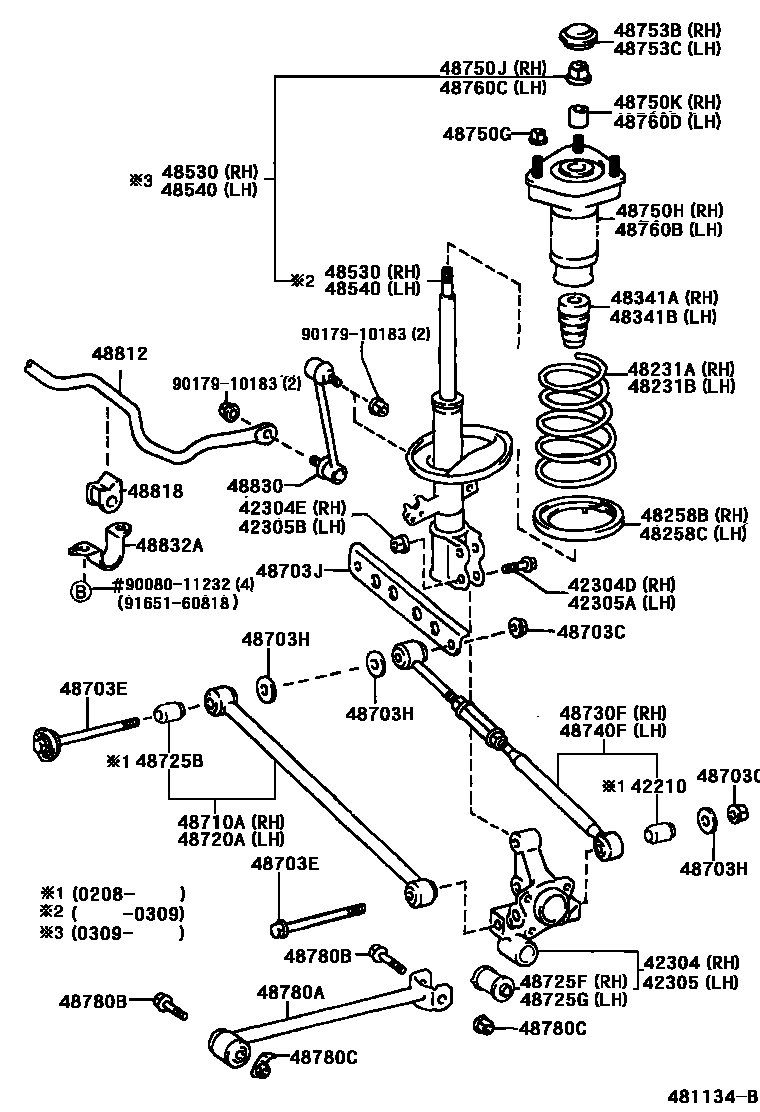

REAR SPRING & SHOCK ABSORBER
42210BUSH ASSY, LOWER BALL
42304CARRIER SUB-ASSY, REAR AXLE, RH
W(ABS)
42304DBOLT (FOR REAR AXLE CARRIER RH)
42304ENUT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
W(ABS)
42305ABOLT (FOR REAR AXLE CARRIER LH)
42305BNUT (FOR REAR AXLE CARRIER LH)
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
sub48258-06030
48258CINSULATOR, REAR COIL SPRING, LOWER LH
sub48258-06030
48341ABUMPER, REAR SPRING, NO.1 RH
sub48341-32054
48341BBUMPER, REAR SPRING, NO.1 LH
sub48341-32054
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-07080
MARK 48530-07090
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-07080
MARK 48540-07090
48703CNUT(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.50PX260-26,BODY SIDE
*14-1.50PX260-26,CARRIER SIDE
48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)
48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)
48725BBUSH, REAR SUSPENSION ARM, NO.1
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
BODY SIDE
CARRIER SIDE
48818BUSH, STABILIZER, REAR
sub48818-33050
48830LINK ASSY, REAR STABILIZER
48832ABRACKET, REAR STABILIZER BAR, NO.1
9008011232
main90080-11232
9017910183
main90179-10183
9165160818
main91651-60818
45 parts on this diagram · 1 diagram in section
