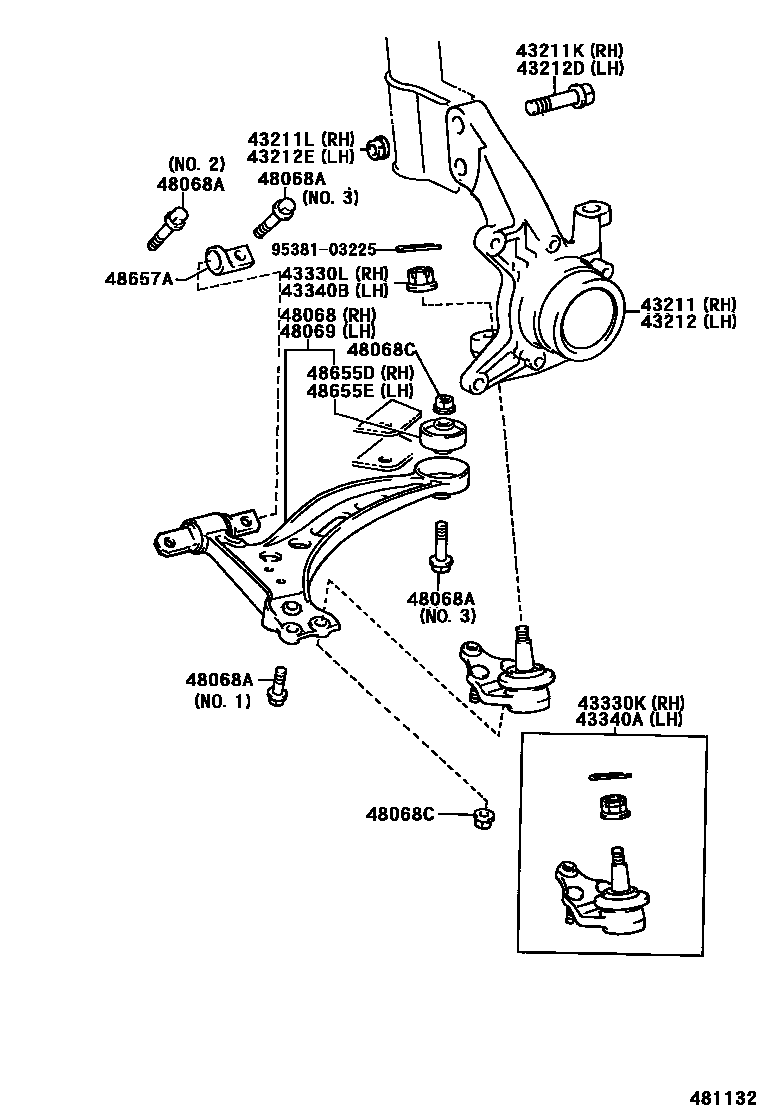

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-06080iMCX10..CONQ,VXI200004-200105

sub43211-06081

main43211-06081iMCX10..CONQ,VXI200105-200506

main43211-06090iMCX10200004-200105

W(ABS)

sub43211-06091

main43211-06091iMCX10200105-200506

W(ABS)

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17001iMCX10200004-200208

OD=17

main90105-17008iMCX10200208-200309

OD=17

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001iMCX10200208-200309

main90179-17001iMCX10200004-200208

43212KNUCKLE, STEERING, LH

main43212-06080iMCX10..CONQ,VXI200004-200105

sub43212-06081

main43212-06081iMCX10..CONQ,VXI200105-200506

main43212-06090iMCX10200004-200105

W(ABS)

sub43212-06091

main43212-06091iMCX10200105-200506

W(ABS)

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17001iMCX10200004-200208

OD=17

main90105-17008iMCX10200208-200309

OD=17

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001iMCX10200208-200309

main90179-17001iMCX10200004-200208

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09140iMCX10200004-200309

main43330-39435iMCX10200309

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iMCX10200004-200309

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09140iMCX10200004-200309

main43330-39435iMCX10200309

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iMCX10200004-200309

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-06060iMCX10200004-200210

main48068-06090iMCX10200210-200309

sub48068-07030

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12122iMCX10200210-200309

NO.1

main90105-12216iMCX10200004-200210

NO.1

main90105-14081iMCX10200004-200309

NO.2

main90105-14084iMCX10200004-200309

NO.3

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90179-12052iMCX10200210-200309

BALL JOINT SIDE

main90179-12103iMCX10200004-200210

BALL JOINT SIDE

main90179-14048iMCX10200004-200309

BODY SIDE

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-06060iMCX10200004-200210

main48069-06090iMCX10200210-200309

sub48069-07030

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-06030iMCX10200004-200210

sub48655-33040

main48655-06060iMCX10200210-200309

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-06030iMCX10200004-200210

sub48655-33040

main48655-06060iMCX10200210-200309

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-06030iMCX10200208-200309

sub48657-33020

main48657-33020iMCX10200004-200208

9538103225

main95381-03225

18 parts on this diagram · 1 diagram in section
