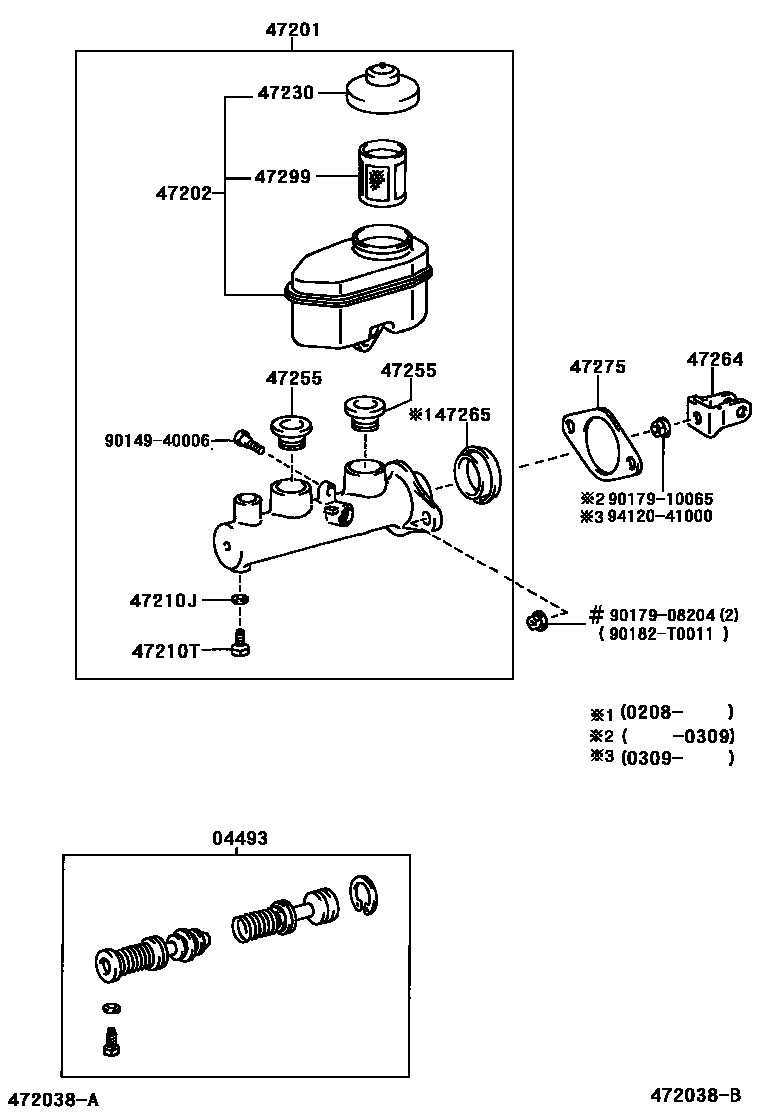

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-33050iMCX10..CONQ,VXI200004-200309

main04493-33060iMCX10..CSX,GD200004-200309

W(ABS)

sub04493-33160

main04493-33150iMCX10..CONQ200309

main04493-33160iMCX10..CONQ200309

W(ABS)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33110iMCX10..CONQ,VXI200004-200309

main47201-33130iMCX10..CONQ200004-200309

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33011iMCX10200004-200309

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iMCX10200004-200309

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCX10200004-200309

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iMCX10200004-200309

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iMCX10200004-200309

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20060iMCX10200004-200309

main47264-63020iMCX10200309

47265BOOT, MASTER CYLINDER

main47265-20050iMCX10200208-200309

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iMCX10200004-200309

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iMCX10200004-200309

9014940006

main90149-40006

9017908204

main90179-08204

9017910065

main90179-10065

90182T0011

main90182-T0011

9412041000

main94120-41000

16 parts on this diagram · 1 diagram in section
