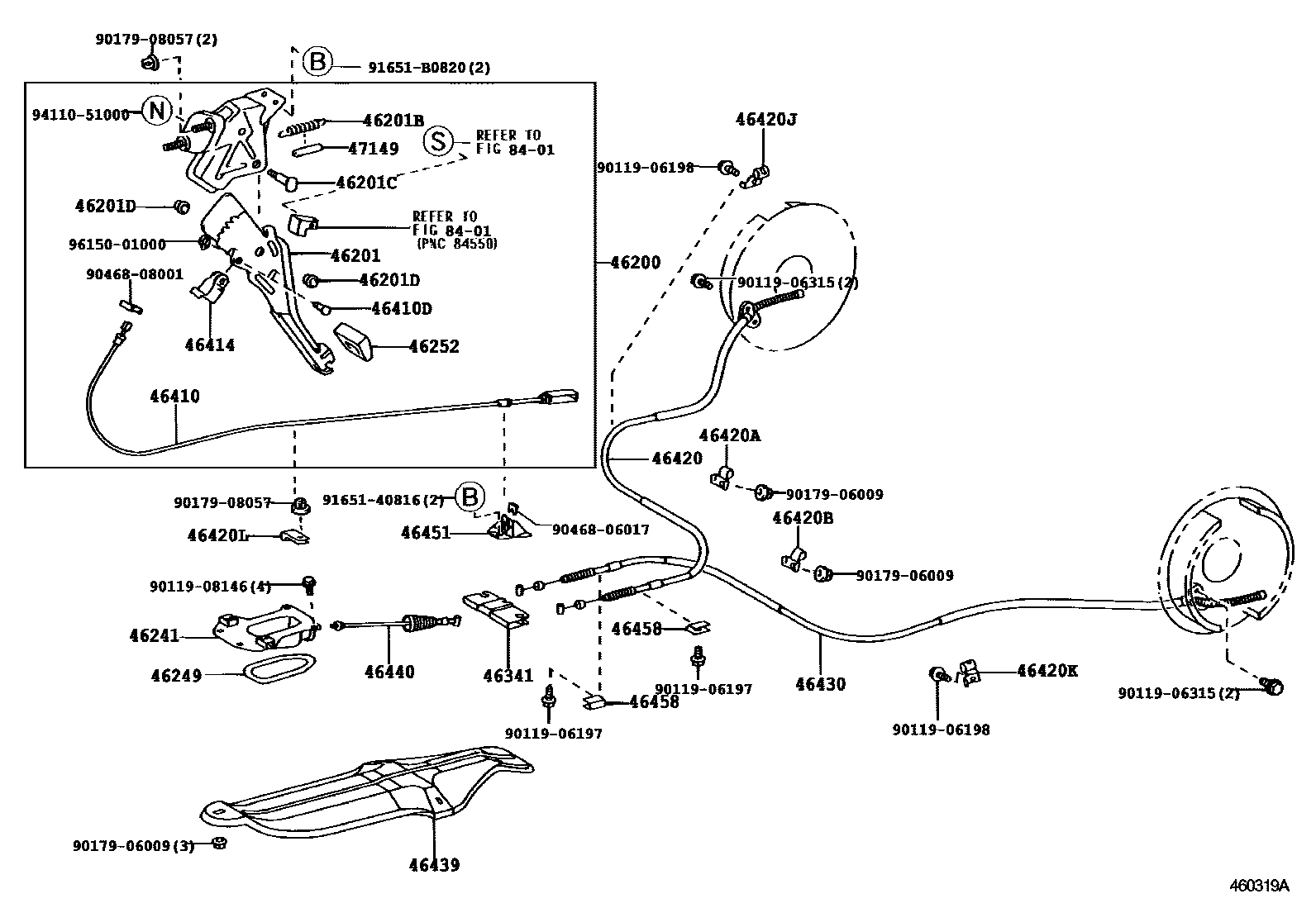

PARKING BRAKE & CABLE
46200PEDAL ASSY, PARKING BRAKE CONTROL
46201PEDAL SUB-ASSY, PARKING BRAKE
46201BSPRING, TENSION
46201CSHAFT, PEDAL
46201DBUSH(FOR PARKING BRAKE PEDAL)
46241BOOT, PARKING BRAKE LEVER
46249SHIELD, PARKING BRAKE HOLE
46252PAD, PARKING PEDAL
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46410DPIN(FOR PARKING BRAKE FRONT CABLE)
46414CLEVIS, PARKING CABLE
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)
46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)
46439INSULATOR, PARKING BRAKE CABLE HEAT
46440CABLE ASSY, PARKING BRAKE, NO.4
46451BRACKET, CABLE SUPPORT
46458RETAINER, CABLE
47149DAMPER, RETURN SPRING
8401
9011906197
main90119-06197
9011906198
main90119-06198
9011906315
main90119-06315
9011908146
main90119-08146
9017906009
main90179-06009
9017908057
main90179-08057
9046806017
main90468-06017
9046808001
main90468-08001
9165140816
main91651-40816
91651B0820
main91651-B0820
9411051000
main94110-51000
9615001000
main96150-01000
37 parts on this diagram · 4 diagrams in section
