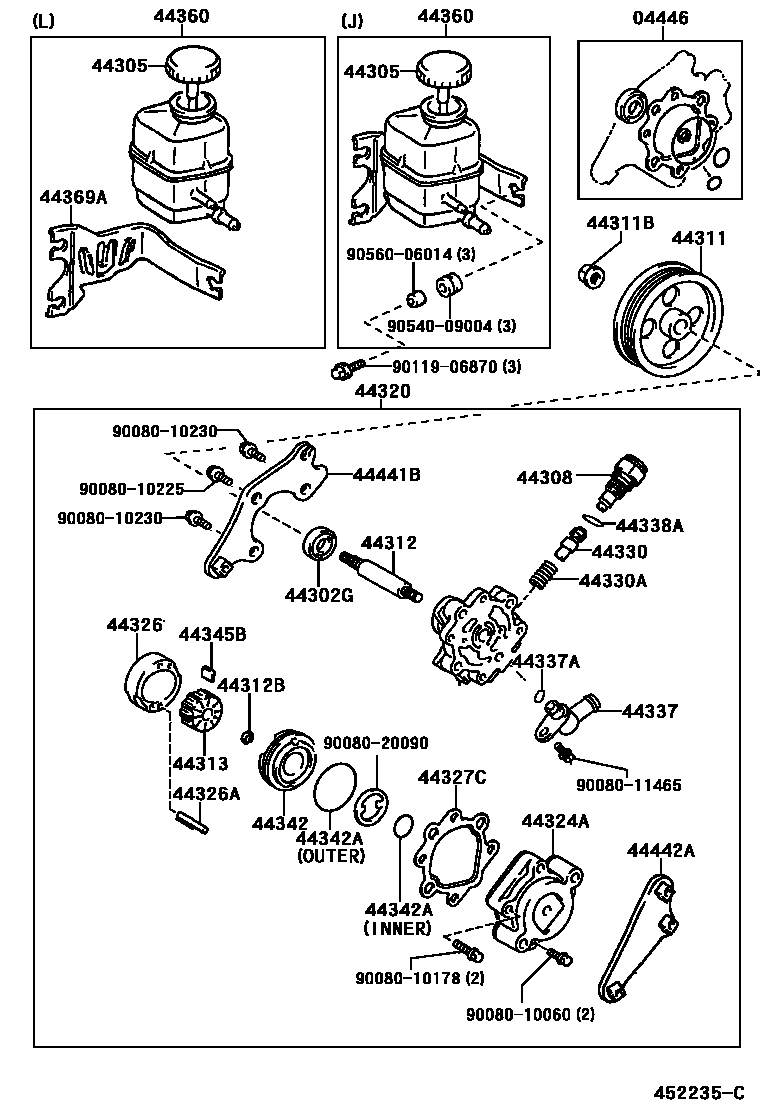

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-0B030iMCX10200309

main04446-34010iMCX10¥2,320200004-200309

sub04446-53030¥1,360

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18015iMCX10¥210200004-200009

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-06010iMCX10¥2,170200004-200207

(L)

main44305-06030iMCX10200207-200309

(L)

sub44305-06050¥1,480

main44305-32020iMCX10¥1,470200004-200309

(J)

sub44305-32040¥1,010

44308UNION SUB-ASSY, PRESSURE PORT

main44308-33060iMCX10¥1,480200004-200309

44311PULLEY, VANE PUMP

main44311-06030iMCX10200009-200309

main44311-33020iMCX10¥6,700200004-200009

sub44311-28110¥6,700

44311BNUT(FOR VANE PUMP PULLEY)

main90080-17158iMCX10200309

main90178-12003iMCX10¥160200004-200309

44312SHAFT, VANE PUMP

main44312-32020iMCX10¥1,300200004-200202

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iMCX10¥140200004-200009

44313ROTOR, VANE PUMP

main44313-26060iMCX10¥7,700200004-200009

NO MARK

main44313-26070iMCX10¥7,700200004-200009

MARK 1

main44313-26080iMCX10¥7,700200004-200009

MARK 2

main44313-26090iMCX10¥7,700200004-200009

MARK 3

main44313-26100iMCX10¥7,700200004-200009

MARK 4

44320PUMP ASSY, VANE

main44320-06050iMCX10200004-200309

main44320-06080iMCX10200309

44324AHOUSING, PUMP, REAR

main44324-33030iMCX10¥3,990200004-200202

44326RING, CAM(FOR VANE PUMP)

main44325-32270iMCX10¥6,700200004-200010

NO MARK

main44325-32280iMCX10¥6,700200004-200010

MARK 1

main44325-32290iMCX10¥6,700200004-200010

MARK 2

main44325-32300iMCX10¥6,700200004-200010

MARK 3

main44325-32310iMCX10¥6,700200004-200010

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90080-25027iMCX10200009-200309

L=23.3,OD=4.0

main90250-04071iMCX10¥110200004-200009

L=23.3,OD=4.0

44327CGASKET, VANE PUMP HOUSING

main44327-04010iMCX10¥1,290200004-200309

44330VALVE ASSY, FLOW CONTROL

main44330-06010iMCX10200004-200309

MARK A

main44330-06020iMCX10200004-200309

MARK B

main44330-06030iMCX10200004-200309

MARK C

main44330-06040iMCX10200004-200309

MARK D

main44330-06050iMCX10200004-200309

MARK E

main44330-06060iMCX10200004-200309

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90080-50247iMCX10200004-200309

44337UNION, POWER STEERING SUCTION PORT

main44337-06030iMCX10200009-200309

main44337-33030iMCX10¥1,880200004-200009

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30049iMCX10200009-200309

main90301-11016iMCX10¥140200004-200009

44338ARING, O(FOR PRESSURE PORT UNION)

main90080-30074iMCX10200009-200309

ID=19.2,OD=22.3

main90301-19013iMCX10¥260200004-200009

ID=19.2,OD=22.3

sub90301-19018¥240

44342PLATE, VANE PUMP SIDE, REAR

main44342-26020iMCX10¥1,530200004-200309

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90080-30053iMCX10200004-200309

INNER

main90080-30054iMCX10200004-200309

OUTER

44345BPLATE, VANE PUMP

main44345-26010iMCX10¥700200004-200202

L=15.000

main44345-26020iMCX10¥700200004-200202

L=14.998

main44345-26030iMCX10¥700200004-200202

L=14.996

main44345-26040iMCX10¥700200004-200202

L=14.994

main44345-26050iMCX10¥700200004-200202

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-06010iMCX10¥11,300200004-200309

(L)

main44360-33020iMCX10¥10,400200004-200309

(J)

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-06010iMCX10200004-200309

44441BBRACKET, PUMP, FRONT

main44441-06030iMCX10200009-200309

main44441-33022iMCX10¥1,140200004-200009

44442ABRACKET, VANE PUMP, REAR

main44442-06030iMCX10200004-200309

9008010060

main90080-10060

9008010178

main90080-10178

9008010225

main90080-10225

9008010230

main90080-10230

9008011465

main90080-11465

9008020090

main90080-20090

9011906870

main90119-06870¥90

9054009004

main90540-09004¥160

9056006014

main90560-06014¥350
