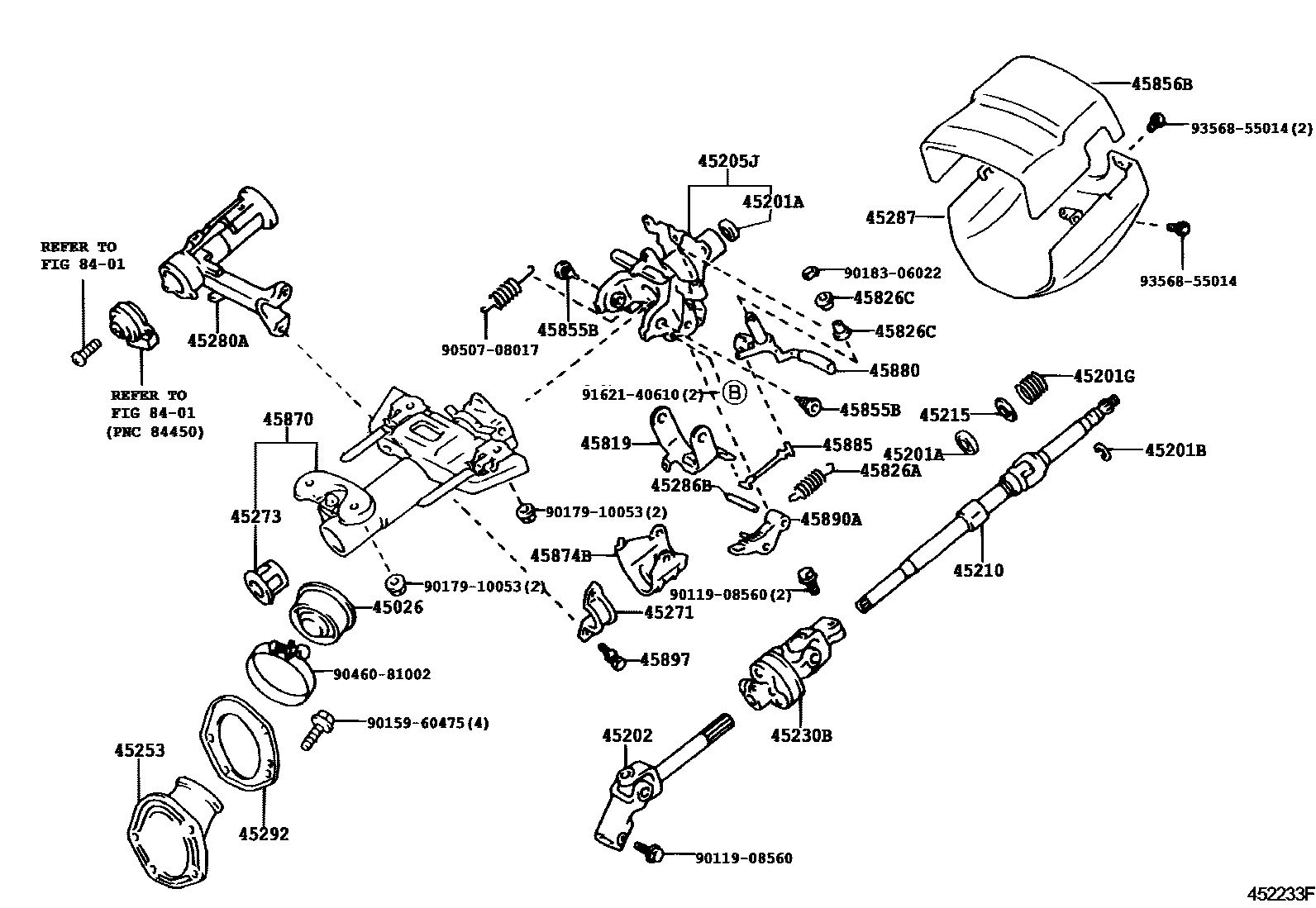

STEERING COLUMN & SHAFT
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=2.00,ID=15.3,NO.2
T=2.00,ID=15.3
T=1.20,NO.1
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45215COLLAR, MAIN SHAFT BEARING THRUST
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45253COVER, STEERING COLUMN HOLE
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
DK.STONE,TRIM1#
SANDAL WOOD,TRIM4#
45286BCOVER, STEERING COLUMN, UPR
DK. STONE,TRIM12
DK. STONE,TRIM1#
BLACK,TRIM12
SANDAL WOOD,TRIM4#
45287COVER, STEERING COLUMN, LWR
DK. STONE,TRIM1#
DK. STONE,TRIM12
BLACK,TRIM12
SANDAL WOOD,TRIM4#
45292SEAL, MAIN SHAFT LOWER DUST
45819RETAINER, TILT LEVER
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826CBUSH(FOR STEERING TILT LEVER)
45855BOLT, TILT STEERING, NO.1
OD=20
45855BSHAFT, T1LT STEERING, NO.1
45856BSHAFT, T1LT STEERING, NO.2
45870TUBE ASSY, STEERING COLUMN
45874BPROTECTOR, STEERING COLUMN, NO.1
45880LEVER ASSY, STEERING TILT
45885LINK, TILT LEVER
45890APAWL ASSY, TILT STEERING
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9015960475
main90159-60475
9017910053
main90179-10053
9018306022
main90183-06022
9046081002
main90460-81002
9050708017
main90507-08017
9162140610
main91621-40610
9356855014
main93568-55014
38 parts on this diagram · 2 diagrams in section
