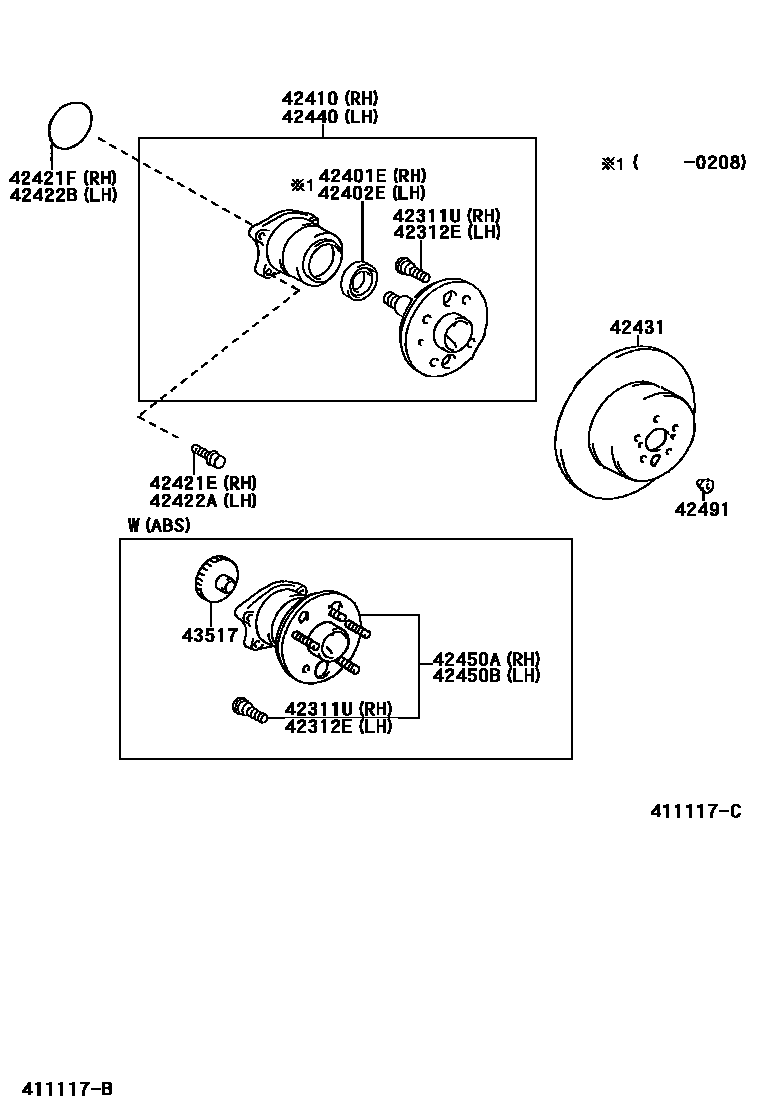

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90089-11034×5iMCX10200004-200309

42312EBOLT, HUB(FOR REAR AXLE LH)

main90089-11034×5iMCX10200004-200309

42401ESEAL, OIL (FOR REAR AXLE HUB RH)

main90311-42018iMCX10200004-200208

42402ESEAL, OIL (FOR REAR AXLE HUB LH)

main90311-42018iMCX10200004-200208

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-07010iMCX10..CONQ200309

main42410-YC020iMCX10..CONQ,VXI200004-200307

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124×4iMCX10200004-200309

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iMCX10200004-200108

main90301-63006iMCX10200108-200309

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124×4iMCX10200004-200309

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iMCX10200004-200108

main90301-63006iMCX10200108-200309

42431DISC, REAR

main42431-06090×2iMCX10200309-200506

main42431-07040×2iMCX10200004-200309

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-07010iMCX10..CONQ,VXI200307-200309

main42410-YC020iMCX10..CONQ,VXI200004-200307

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-07010iMCX10200309

main42410-YC040iMCX10200004-200309

sub42410-06091

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-07010iMCX10200309

main42410-YC040iMCX10200004-200309

sub42410-06091

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-06010×2iMCX10200212-200309

main47491-22020×2iMCX10200004-200212

43517ROTOR, SKID CONTROL, REAR

main43517-12021×2iMCX10200309

15 parts on this diagram · 1 diagram in section
