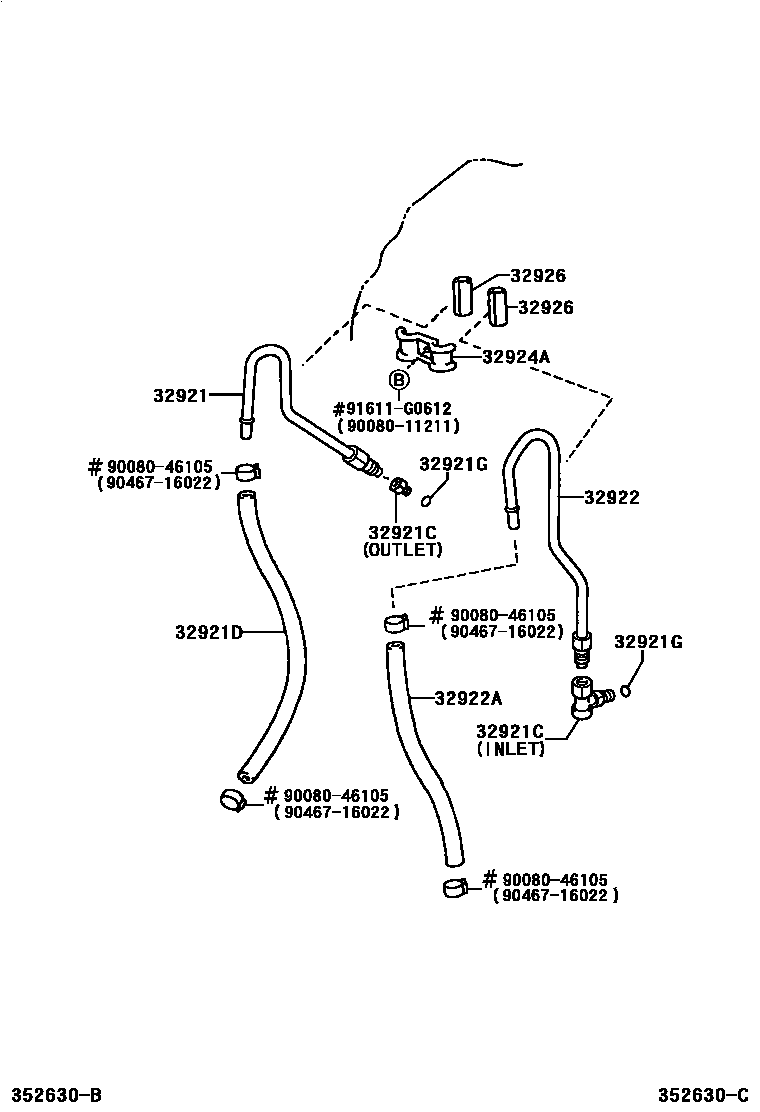

OIL COOLER & TUBE (ATM)

0001 1A541E 0002 1A541E 0003 1A541E

32921TUBE, OIL COOLER INLET, NO.1

main32921-YC020iMCX10200309

sub32921-33070

32921CUNION(FOR OIL COOLER TUBE)

main32901-32050iMCX10200004-200309

OUTLET

main90404-16031iMCX10200004-200309

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-YC010iMCX10200004-200309

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iMCX10200004-200309

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-YC020iMCX10200004-200309

32922AHOSE(FOR OIL COOLER OUTLET)

main90089-44033iMCX10200004-200309

sub90445-17069

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12074iMCX10200004-200309

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-06020×2iMCX10200004-200309

9008011211

main90080-11211

9008046105

main90080-46105

9046716022

main90467-16022

91611G0612

main91611-G0612

12 parts on this diagram · 3 diagrams in section
