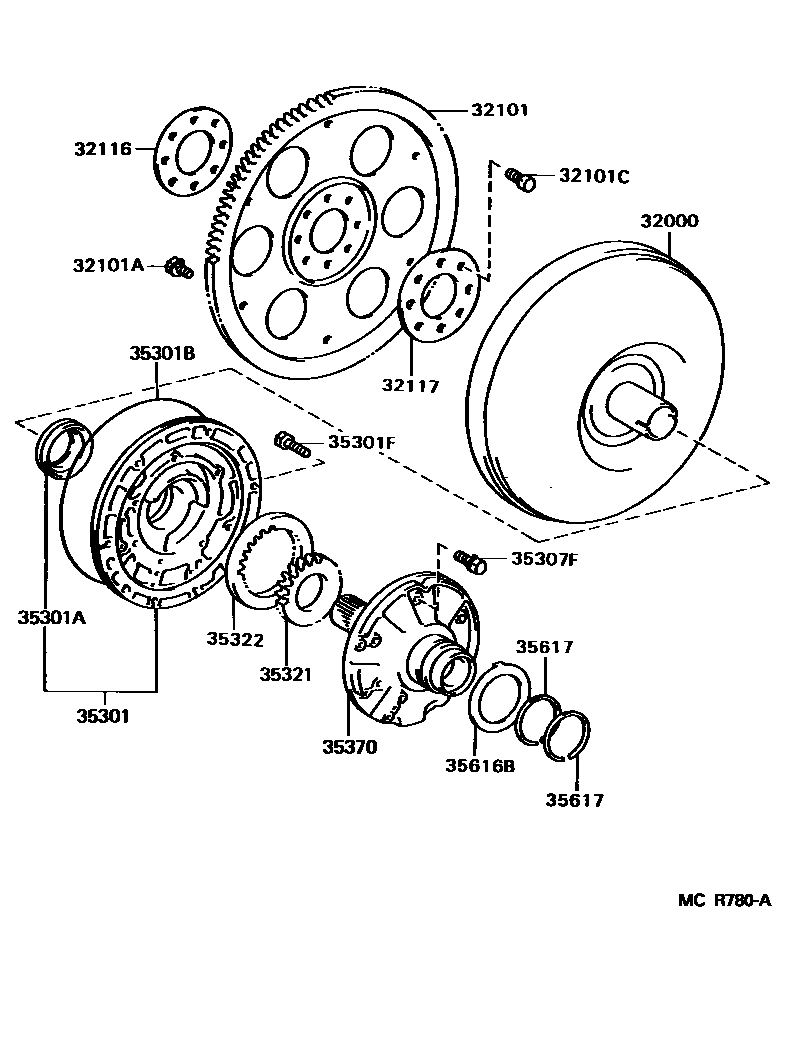

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-33070iMCX10200309-200506

main32000-41030iMCX10200004-200309

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06010iMCX10200004-200309

(L)

sub32101-48010

main32101-33010iMCX10200004-200211

sub32101-48010

main32101-48010iMCX10200211-200309

(J)

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMCX10200004-200309

*9-1.25PX12.4-7.3,GREEN

main90119-09025iMCX10200004-200309

*9-1.25PX12.4-8.4,YELLOW

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iMCX10200004-200309

*10-1.25PX18-13

32116SPACER, DRIVE PLATE, FRONT

main32116-32020iMCX10200004-200309

32117SPACER, DRIVE PLATE, REAR

main32117-32020iMCX10200004-200309

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-33010iMCX10200004-200309

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iMCX10200004-200011

main90311-38082iMCX10200011-200309

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99079iMCX10200004-200309

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iMCX10200004-200309

*8-1.25PX28-28

35307FBOLT (FOR STATOR SHAFT)

main90119-06559iMCX10200309

main90119-06808iMCX10200004-200309

sub90119-06559

35321GEAR, FRONT OIL PUMP DRIVE

main35321-33010iMCX10200004-200309

T=10.690-10.699

main35321-33030iMCX10200004-200309

T=10.710-10.720

main35321-33050iMCX10200004-200309

T=10.731-10.740

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-33010iMCX10200004-200309

T=10.690-10.699

main35322-33030iMCX10200004-200309

T=10.710-10.720

main35322-33050iMCX10200004-200309

T=10.731-10.740

35370SHAFT ASSY, STATOR

main35370-33020iMCX10200004-200309

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iMCX10200004-200309

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iMCX10200004-200309

16 parts on this diagram · 1 diagram in section
