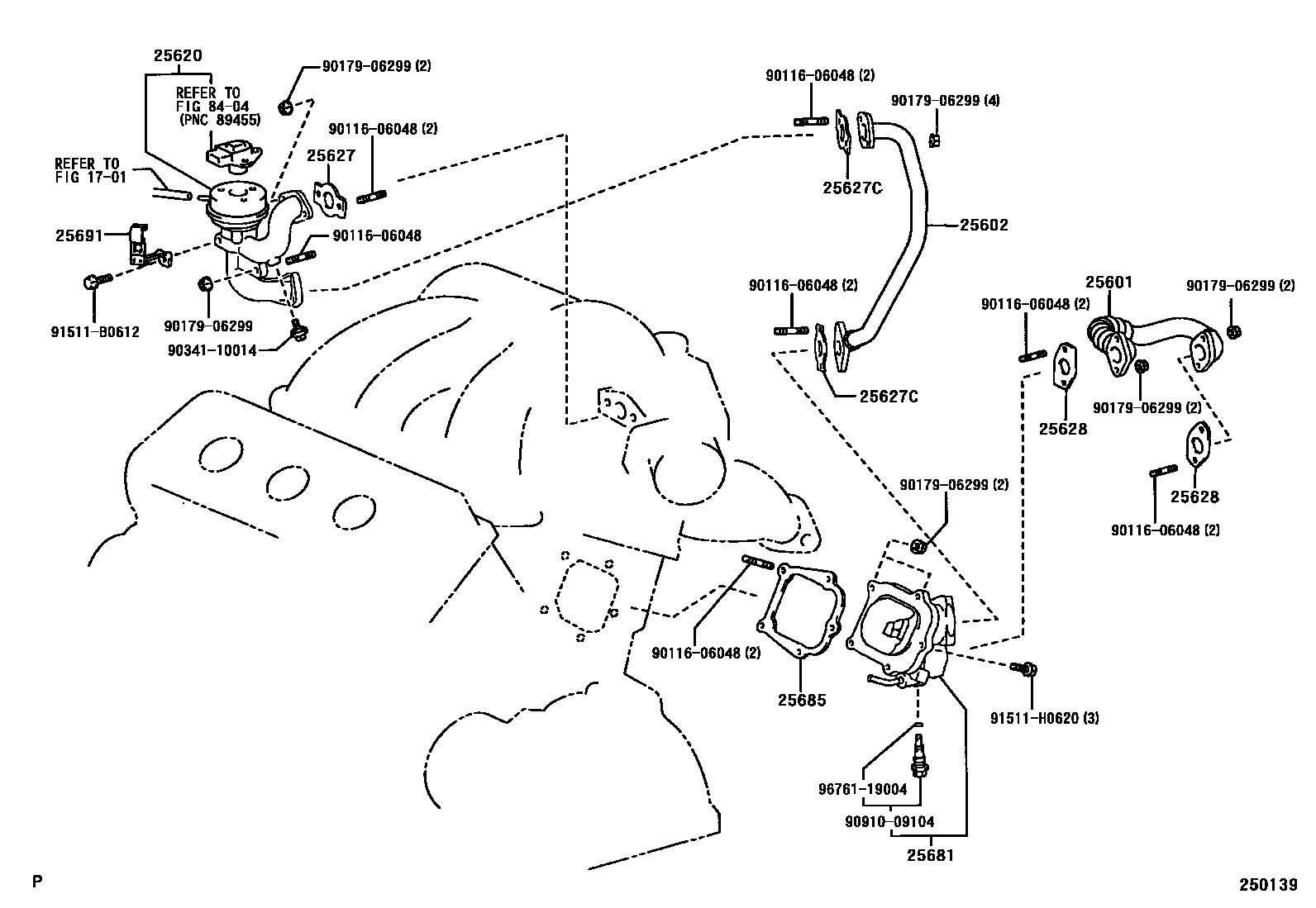

EXHAUST GAS RECIRCULATION SYSTEM

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25611-20040i1MZFE..MCX10200309

25602PIPE SUB-ASSY, EGR, NO.2

main25612-20030i1MZFE..MCX10200309

25620VALVE ASSY, EGR

main25620-20020i1MZFE..MCX10200309

25627GASKET, EGR VALVE

main25627-20010i1MZFE..MCX10200309

25627CGASKET(FOR EGR PIPE NO.2)

main25627-20010×2i1MZFE..MCX10200309

25628GASKET, EGR INLET

main25628-20010×2i1MZFE..MCX10200309

25681COOLER, EGR, NO.1

main25681-20020i1MZFE..MCX10200309

25685GASKET, EGR COOLER, NO.1

main25685-20010i1MZFE..MCX10200309

25691BRACKET, EGR VACUUM MODULATOR

main25691-20030i1MZFE..MCX10200309

8404

9011606048

main90116-06048

9017906299

main90179-06299

9034110014

main90341-10014

9091009104

main90910-09104

91511B0612

main91511-B0612

91511H0620

main91511-H0620

9676119004

main96761-19004

18 parts on this diagram · 1 diagram in section
