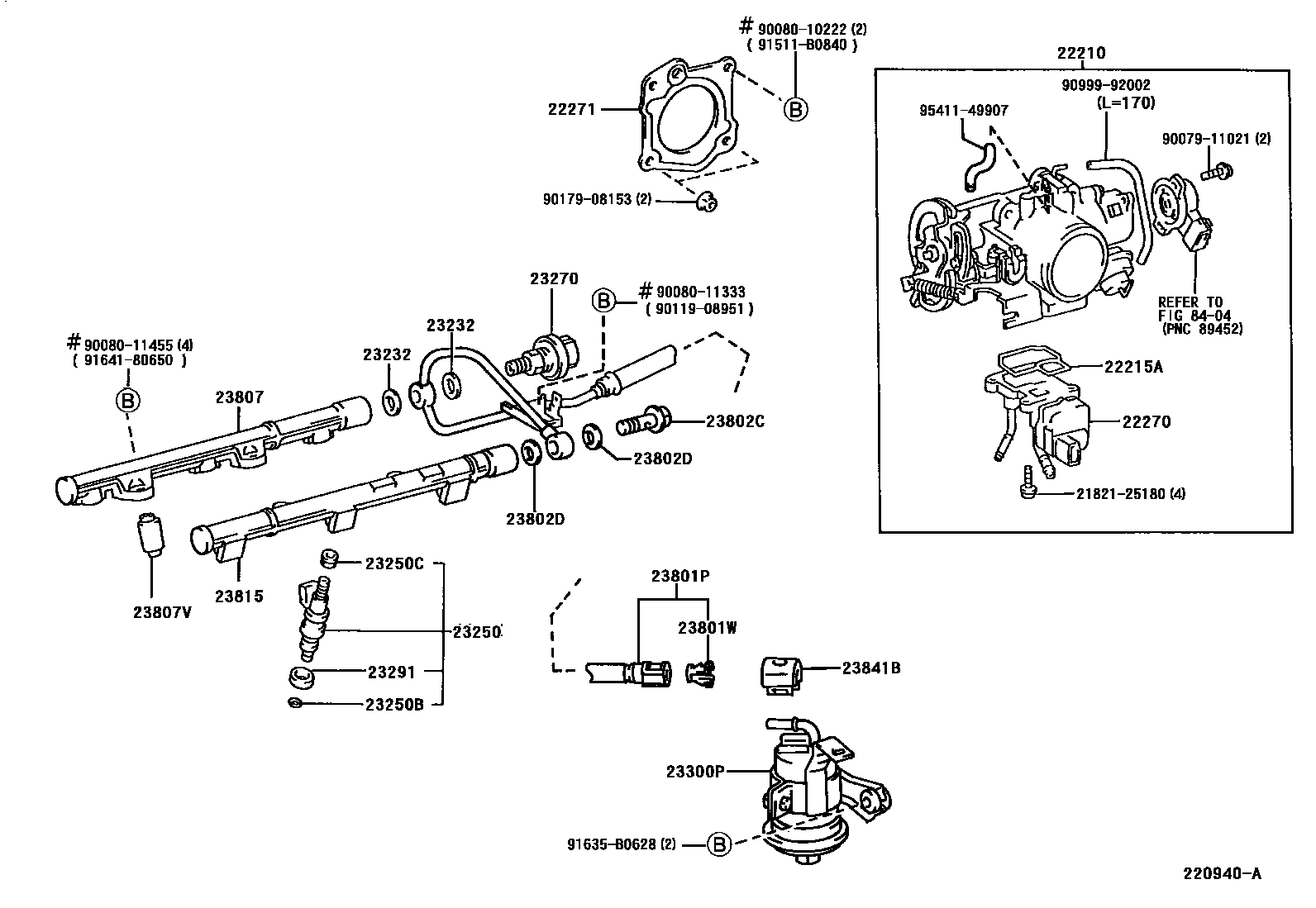

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

22210BODY ASSY, THROTTLE

main22210-20100i1MZFE..MCX10200004-200309

main22210-20120i1MZFE..MCX10200309

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-20010i1MZFE..MCX10200309

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-20020i1MZFE..MCX10200004-200309

main22270-20040i1MZFE..MCX10200309

22271GASKET, THROTTLE BODY

main22271-0A010i1MZFE..MCX10200012-200309

(L)

main22271-20010i1MZFE..MCX10200012-200309

(J)

23232GASKET(FOR FUEL PUMP HOSE)

main23232-41081×2i1MZFE..MCX10200004-200309

23250INJECTOR ASSY, FUEL

main23209-20010×6i1MZFE..MCX10200004-200309

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×12i1MZFE..MCX10200004-200309

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×6i1MZFE..MCX10200004-200309

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-62010i1MZFE..MCX10200004-200309

main23270-62011i1MZFE..MCX10200410

sub23207-20010

23291INSULATOR, INJECTOR VIBRATION

main23291-62010×6i1MZFE..MCX10200309

23300PFILTER, FUEL(FOR EFI)

main23300-20040i1MZFE..MCX10200004-200309

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-20041i1MZFE..MCX10200004-200309

main23801-20200i1MZFE..MCX10200309

23801WCLIP, FUEL TUBE CONNECTOR

main90923-07010i1MZFE..MCX10200004-200309

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12015i1MZFE..MCX10200004-200309

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-12026×2i1MZFE..MCX10200004-200309

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-20020i1MZFE..MCX10200004-200309

main23814-20021i1MZFE..MCX10200401

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020×4i1MZFE..MCX10200004-200309

23815PIPE, FUEL DELIVERY, NO.2

main23815-20020i1MZFE..MCX10200004-200309

main23815-20021i1MZFE..MCX10200401

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-20020i1MZFE..MCX10200004-200309

main23841-28010i1MZFE..MCX10200309

sub23841-21050

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911021

main90079-11021

9008010222

main90080-10222

9008011333

main90080-11333

9008011455

main90080-11455

9011908951

main90119-08951

9017908153

main90179-08153

9099992002

main90999-92002

91511B0840

main91511-B0840

91635B0628

main91635-B0628

9164180650

main91641-80650

9541149907

main95411-49907

32 parts on this diagram · 4 diagrams in section
