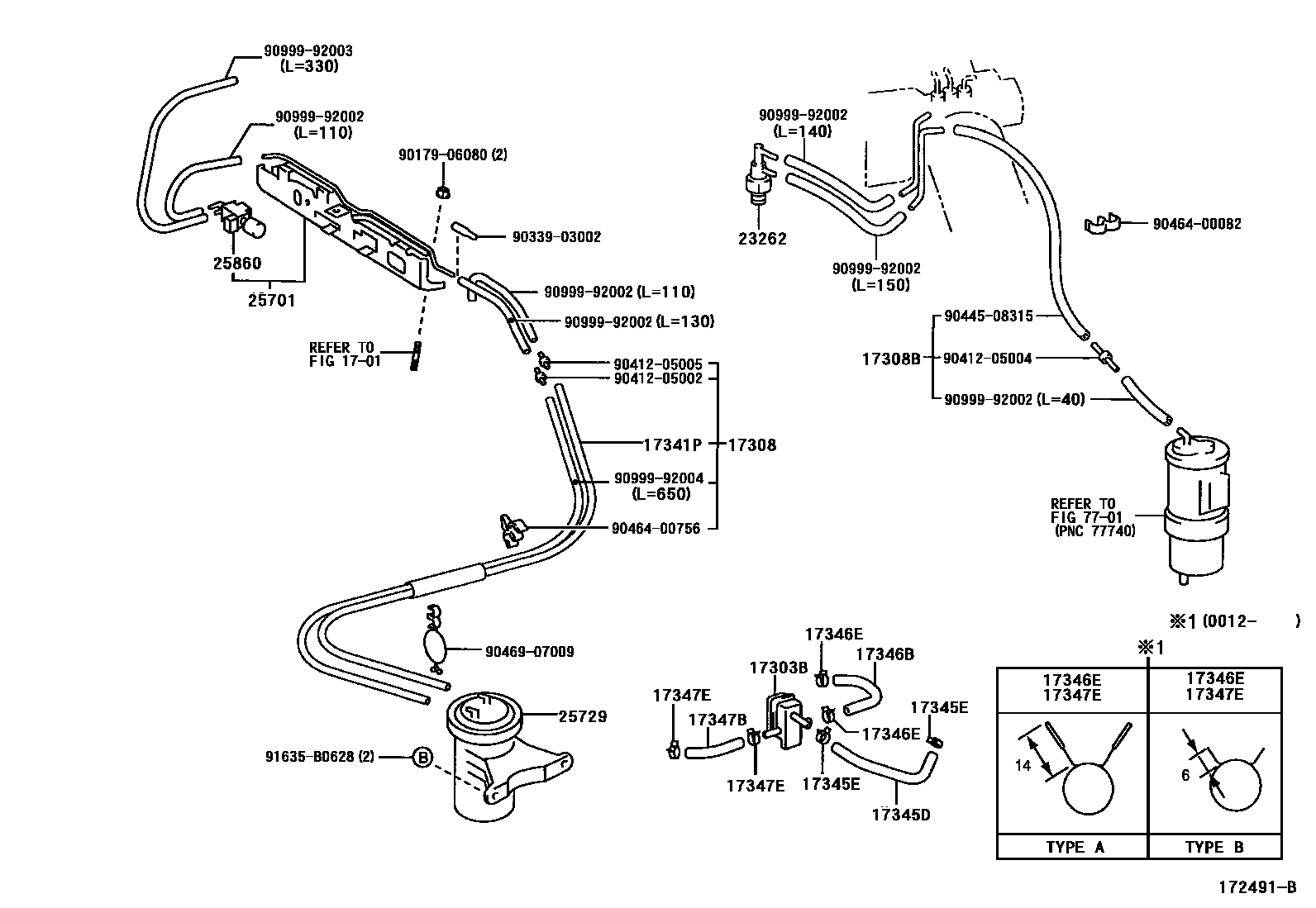

VACUUM PIPING
1701
17303BPIPE SUB-ASSY, AIR, NO.1
(L)
17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308BHOSE SUB-ASSY, VACUUM
17341PHOSE, AIR
sub90999-92004
17345DHOSE, AIR, NO.5
(L)
(J)
17345ECLAMP OR CLIP(FOR AIR HOSE, NO.5)
17346BHOSE, AIR, NO.6
(L)
(J)
17346ECLIP(FOR AIR HOSE NO.6)
TYPE B:REFER TO ILLUSTRATION
17347BHOSE, AIR, NO.7
(L)
17347ECLIP(FOR AIR HOSE NO.7)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
23262VALVE, BIMETAL VACUUM SWITCHING, NO.1
25701VALVE SET, EMISSION CONTROL
25729TANK, VACUUM SURGE W/BRACKET
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7701
9017906080
main90179-06080
9033903002
main90339-03002
9041205002
main90412-05002
9041205004
main90412-05004
9041205005
main90412-05005
9044508315
main90445-08315
9046400082
main90464-00082
9046400756
main90464-00756
9046907009
main90469-07009
9099992002
main90999-92002
9099992003
main90999-92003
9099992004
main90999-92004
91635B0628
main91635-B0628
29 parts on this diagram · 2 diagrams in section
