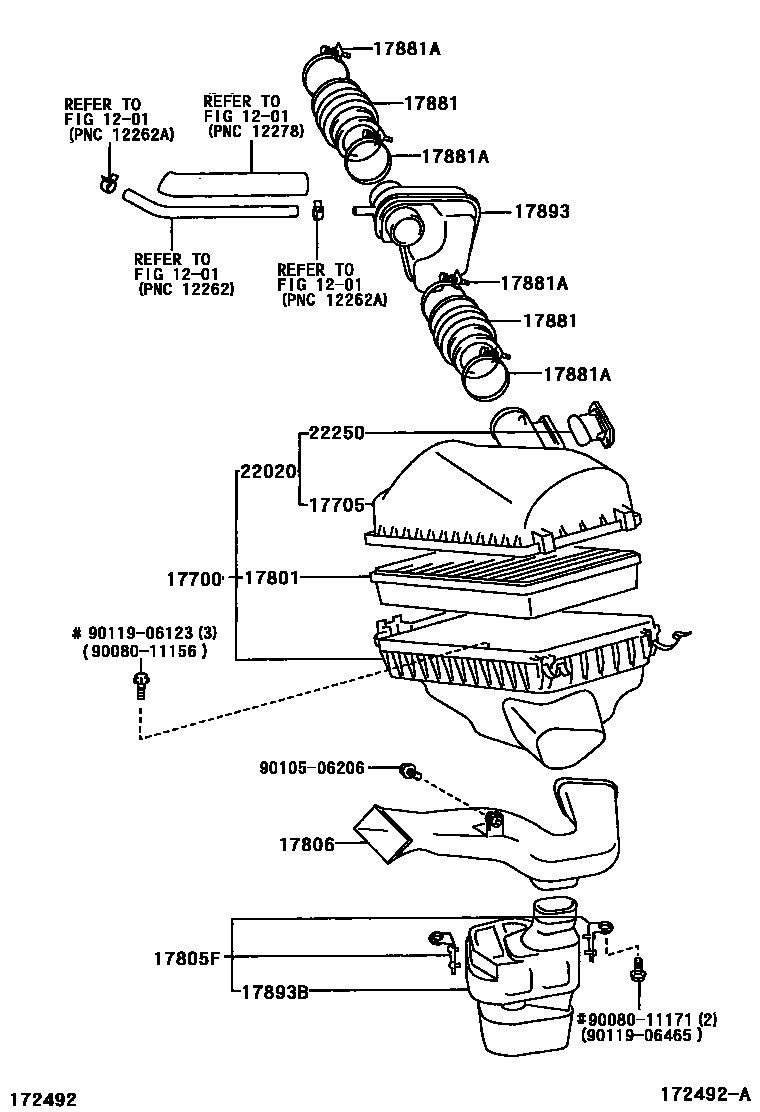

AIR CLEANER

0001 1 0002 1

1201

17700CLEANER ASSY, AIR

main17700-0A031i1MZFE..MCX10200004-200309

main17700-0A220i1MZFE..MCX10200309

17705CAP SUB-ASSY, AIR CLEANER

main17705-0A061i1MZFE..MCX10200004-200309

main17705-0A180i1MZFE..MCX10200309

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74060i1MZFE..MCX10200004-200309

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-YC010i1MZFE..MCX10200004-200309

sub17805-74100

17806PIPE SUB-ASSY, AIR CLEANER, NO.2

main17806-0A040i1MZFE..MCX10200004-200309

17881HOSE, AIR CLEANER, NO.1

main17881-20090×2i1MZFE..MCX10200004-200309

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10830×4i1MZFE..MCX10200004-200309

17893RESONATOR, INTAKE AIR

main17893-20031i1MZFE..MCX10200004-200309

17893BRESONATOR, INTAKE AIR, NO.2

main17893-YC010i1MZFE..MCX10200004-200309

22020METER ASSY, AIR FLOW W/AIR CLEANER

main22020-0A081i1MZFE..MCX10200004-200309

22250METER ASSY, INTAKE AIR FLOW

main22204-20010i1MZFE..MCX10200004-200309

9008011156

main90080-11156

9008011171

main90080-11171

9010506206

main90105-06206

9011906123

main90119-06123

9011906465

main90119-06465

17 parts on this diagram · 2 diagrams in section
