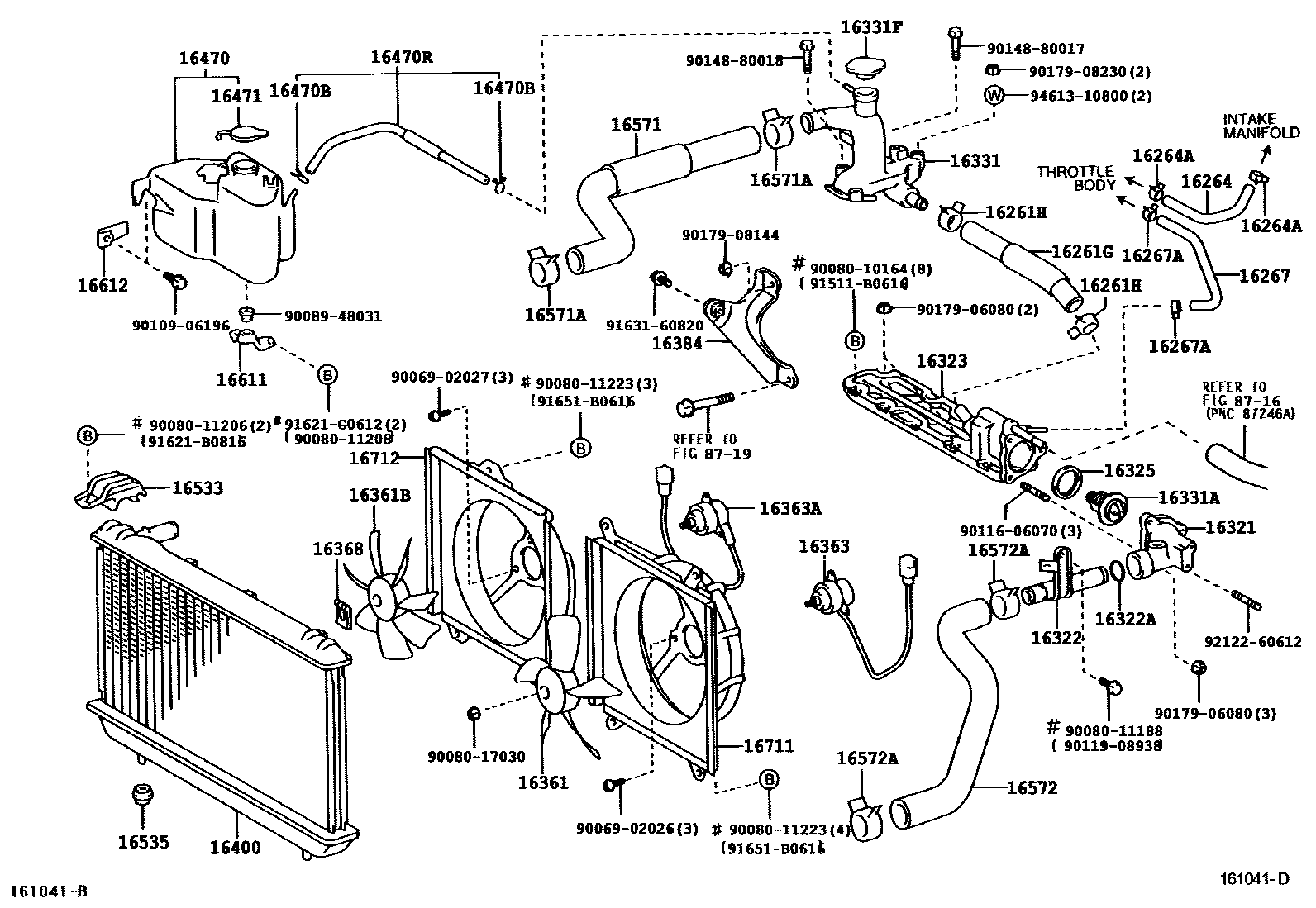

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
(L)
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16264HOSE, WATER BY-PASS, NO.2
(L)
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
(L)
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16321INLET, WATER
(L)
16322PIPE, WATER INLET
(L)
(J)
16322ARING, O(FOR WATER INLET)
16323HOUSING, WATER INLET
(L)
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
16331FCAP SUB-ASSY(FOR WATER OUTLET)
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16368BRACKET, COOLING MOTOR
16384BRACKET, FAN BELT ADJUSTING BAR
16400RADIATOR ASSY
16470TANK ASSY, RADIATOR RESERVE
sub16470-03062
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
sub16472-0A030
16471CAP SUB-ASSY, RESERVE TANK
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
sub16535-62031
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611BRACKET, RADIATOR RESERVE TANK
16612BRACKET, RADIATOR RESERVE TANK, NO.2
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
8716
8719
9006902026
main90069-02026
9006902027
main90069-02027
9008010164
main90080-10164
9008011188
main90080-11188
9008011206
main90080-11206
9008011208
main90080-11208
9008011223
main90080-11223
9008017030
main90080-17030
9008948031
main90089-48031
9010906196
main90109-06196
9011606070
main90116-06070
9011908938
main90119-08938
9014880017
main90148-80017
9014880018
main90148-80018
9017906080
main90179-06080
9017908144
main90179-08144
9017908230
main90179-08230
91511B0616
main91511-B0616
91621B0816
main91621-B0816
91621G0612
main91621-G0612
9163160820
main91631-60820
91651B0616
main91651-B0616
9212260612
main92122-60612
9461310800
main94613-10800
61 parts on this diagram · 2 diagrams in section
