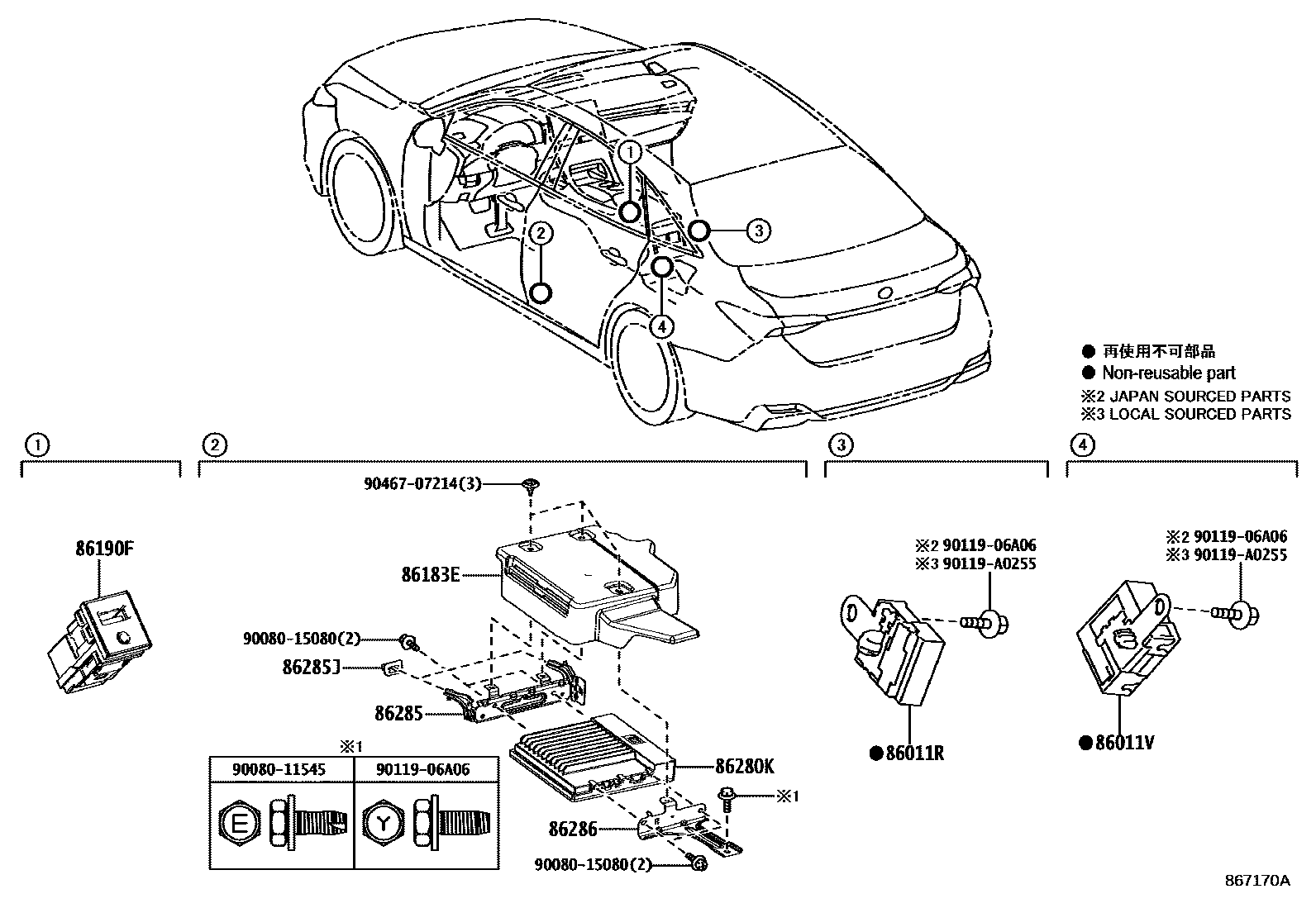

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011RCONDENSER, RADIO SETTING

main90980-04189iGSX50201806-202008

86011VCONDENSER, RADIO SETTING

main90980-04204iGSX50201806-202008

86183ECOVER, AUDIO AMPLIFIER

main86183-07030iGSX50..LIMD201806-202008

86190FADAPTER ASSY, STEREO JACK

main86190-06060iGSX50201806-202008

main86190-12060iGSX50202008-202009

sub86190-12061

main86190-12061iGSX50202009

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-07090iGSX50..LIMD201806-202008

86285BRACKET, AMPLIFIER, NO.1

main86285-07030iGSX50..LIMD201806-202008

86285JRETAINER, AMPLIFIER BRACKET

main55217-32010iGSX50..LIMD201806-202008

86286BRACKET, AMPLIFIER, NO.2

main86286-07030iGSX50..LIMD201806-202008

9008011545

main90080-11545

9008015080

main90080-15080

9011906A06

main90119-06A06

90119A0255

main90119-A0255

9046707214

main90467-07214

13 parts on this diagram · 1 diagram in section
