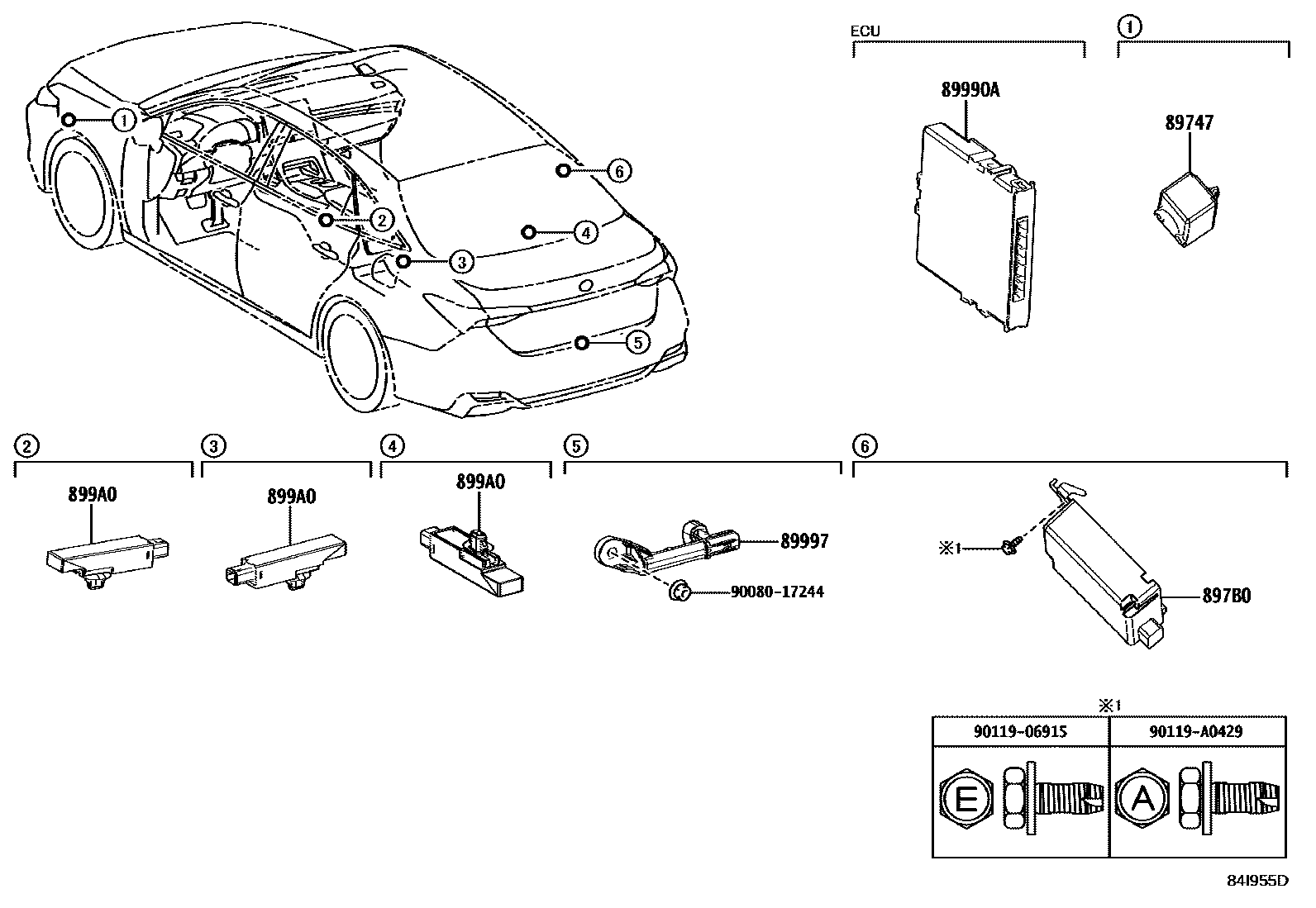

WIRELESS DOOR LOCK

89747BUZZER, WIRELESS DOOR LOCK

main89747-0R020iGSX50201806-202008

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-07050iGSX50201806-202008

89990ACOMPUTER ASSY, SMART KEY

main899H0-07020iGSX50201806-201908

main899H0-07021iGSX50201908-202008

89997ANTENNA, ELECTRICAL KEY

main89997-0E050iGSX50201806-202008

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-06030×3iGSX50201806-202008

9008017244

main90080-17244

9011906915

main90119-06915

90119A0429

main90119-A0429

8 parts on this diagram · 1 diagram in section
