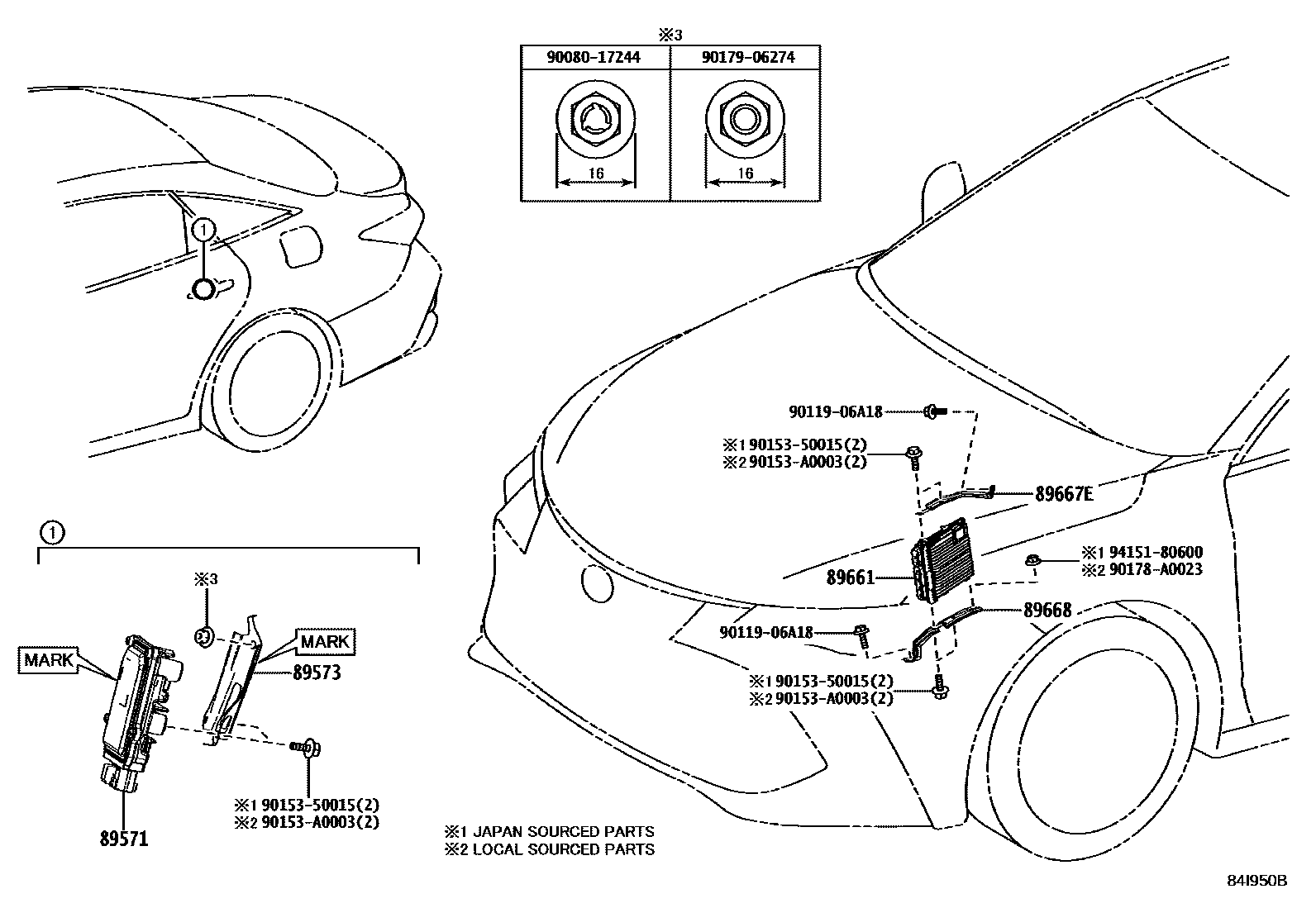

ELECTRONIC FUEL INJECTION SYSTEM

89571COMPUTER, FUEL PUMP CONTROL

main89571-06020iGSX50201908-202004

(L),MARK 89571-06020

main89571-06020iGSX50201806-201908

(L)

main89571-08010iGSX50202004-202008

(L),MARK 89571-08010

main89571-08010iGSX50202008

(L)

main89571-58010iGSX50¥10,300201806-201908

(J)

main89571-58010iGSX50¥10,300201908-202004

(J),MARK 89571-58010

main89571-58020iGSX50¥10,300202004-202008

(J),MARK 89571-58020

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-33040iGSX50¥540201806-202004

MARK K

main89573-33070iGSX50¥410202004-202008

MARK C

89661COMPUTER, ENGINE CONTROL

main89661-07680iGSX50201806-201908

DENSO

main89661-07770iGSX50201908-202108

DENSO

main89661-07840iGSX50202108

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-06260iGSX50202001-202103

(L)

sub89667-33210

main89667-06260iGSX50201806-202001

sub89667-33210

main89667-33210iGSX50202103

(L)

main89667-33210iGSX50202001-202008

(J)

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06260iGSX50201806-201911

sub89668-33260

main89668-06260iGSX50201911-202103

(L)

sub89668-33260

main89668-33260iGSX50201911-202008

(J)

main89668-33260iGSX50202103

(L)

9008017244

main90080-17244¥80

9011906A18

main90119-06A18¥80

9015350015

main90153-50015¥60

90153A0003

main90153-A0003

90178A0023

main90178-A0023

9017906274

main90179-06274¥70

9415180600

main94151-80600¥60

12 parts on this diagram · 1 diagram in section
