SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-04040-B1iGSX50..LIMD202008

NEUTRAL WARM GRAY,TRIM1#,2#

main73023-04040-B1iGSX50..LIMD201806-202008

NEUTRAL WARM GRAY,TRIM1#,43

main73023-04040-E0iGSX50..XLE202008

NEUTRAL BEIGE,TRIM4#

main73023-04040-E0iGSX50..LIMD201806-202008

NEUTRAL BEIGE,TRIM40

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-04040-B1iGSX50..LIMD201806-202008

NEUTRAL WARM GRAY,TRIM1#,43

main73024-04040-B1iGSX50..LIMD202008

NEUTRAL WARM GRAY,TRIM1#,2#

main73024-04040-E0iGSX50..LIMD201806-202008

NEUTRAL BEIGE,TRIM40

main73024-04040-E0iGSX50..XLE202008

NEUTRAL BEIGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0C020iGSX50201806-202008

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06420-C3iGSX50..LIMD201806-202008

BLACK/GRAY,TRIM1#,2#

sub73210-06420

main73210-06420-E1iGSX50..XLE201806-202008

IVORY/BEIGE,TRIM4#

sub73210-06420

73219STOPPER, TONGUE PLATE

main73219-02010iGSX50201806-202008

BLACK

main73219-02020iGSX50201806-202008

GRAY

main73219-02030iGSX50201806-202008

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06390-C4iGSX50..LIMD201806-202008

BLACK/GRAY,TRIM1#,2#

sub73220-06390

main73220-06390-E1iGSX50..LIMD201806-202008

IVORY/BEIGE,TRIM4#

sub73220-06390

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06B20-C0iGSX50..LIMD201806-202008

BLACK,TRIM1#,2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-C1iGSX50..LIMD201806-202008

BLACK,TRIM1#,2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-06760-C0iGSX50..XLE201806-202008

BLACK,TRIM1#,2#,4#

main73230-07060-C0iGSX50..LIMD201806-202008

BLACK,TRIM1#,4#

main73230-07060-C0iGSX50..LIMD202008

BLACK,TRIM1#,2#,4#

9008017195

main90080-17195

9008450025

main90084-50025

9010510523

main90105-10523

9010511053

main90105-11053

90105A0082

main90105-A0082

90105A0163

main90105-A0163

90105A0186

main90105-A0186

9010911066

main90109-11066

90109A0049

main90109-A0049

9017811002

main90178-11002

90178A0081

main90178-A0081

9017911010

main90179-11010

9155380612

main91553-80612

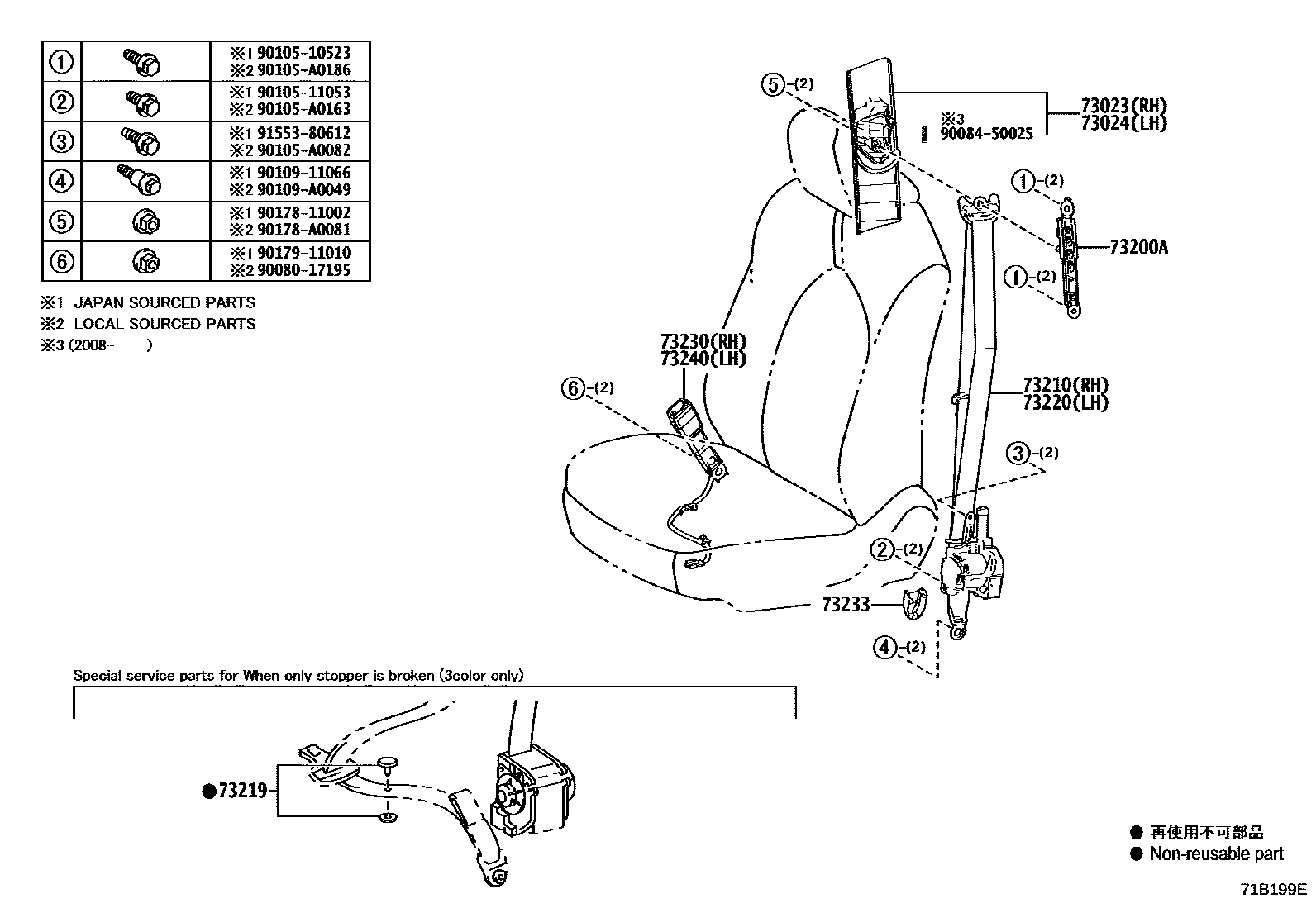

22 parts on this diagram · 2 diagrams in section
