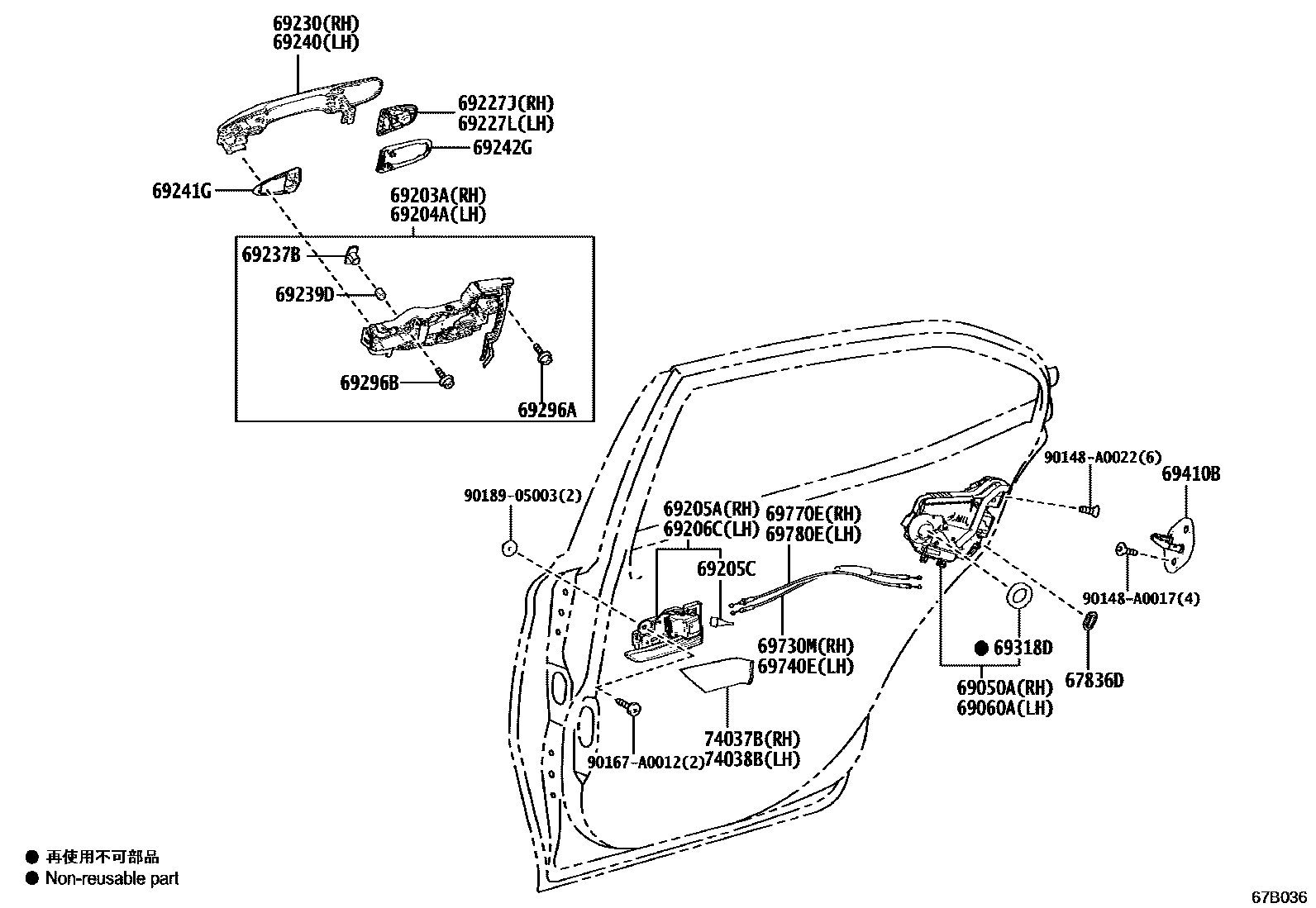

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1J9
SLATE GRAY ME.,1K4
ATTITUDE BLACK MC.,218
RED MC.,3T3
GRAPHITE ME.,4X7
BLACKISH BROWN MC.,4X9
DK.BLUE M.M.,8W6
PLATED
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1J9
SLATE GRAY ME.,1K4
ATTITUDE BLACK MC.,218
RED MC.,3T3
GRAPHITE ME.,4X7
BLACKISH BROWN MC.,4X9
DK.BLUE M.M.,8W6
PLATED
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69296ASCREW, DOOR INSIDE HANDLE
69296BSCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
74037BCOVER SUB-ASSY, REAR DOOR ARMREST, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
74038BCOVER SUB-ASSY, REAR DOOR ARMREST, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
90148A0017
main90148-A0017
90148A0022
main90148-A0022
90167A0012
main90167-A0012
9018905003
main90189-05003
30 parts on this diagram · 1 diagram in section
