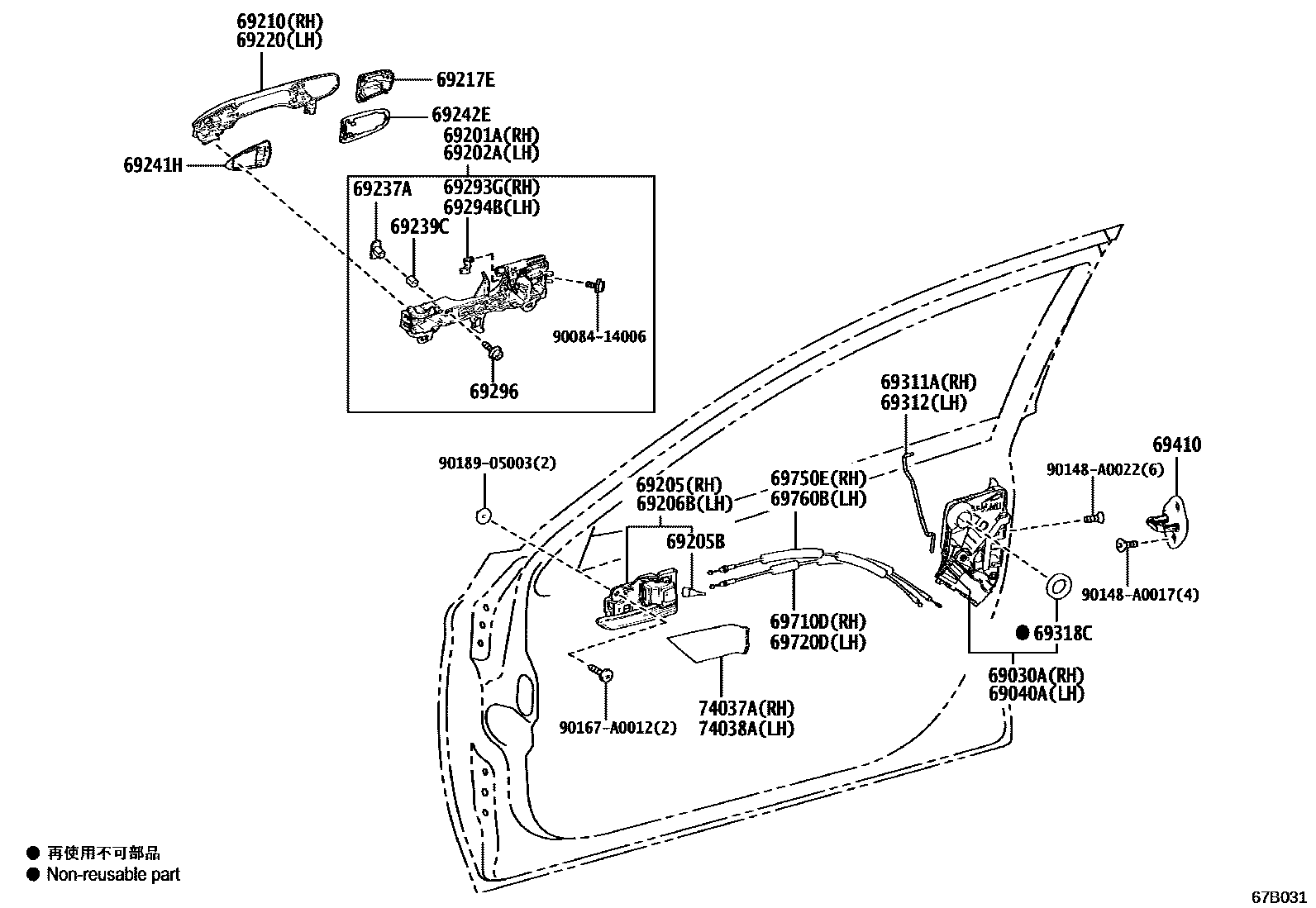

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1J9
SLATE GRAY ME.,1K4
ATTITUDE BLACK MC.,218
RED MC.,3T3
GRAPHITE ME.,4X7
BLACKISH BROWN MC.,4X9
DK.BLUE M.M.,8W6
PLATED
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1J9
SLATE GRAY ME.,1K4
ATTITUDE BLACK MC.,218
RED MC.,3T3
GRAPHITE ME.,4X7
BLACKISH BROWN MC.,4X9
DK.BLUE M.M.,8W6
PLATED
69237ANUT, FRONT DOOR HANDLE
sub69237-0E010
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
74037ACOVER SUB-ASSY, FRONT DOOR ARMREST, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
74038ACOVER SUB-ASSY, FRONT DOOR ARMREST, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
9008414006
main90084-14006
90148A0017
main90148-A0017
90148A0022
main90148-A0022
90167A0012
main90167-A0012
9018905003
main90189-05003
32 parts on this diagram · 1 diagram in section
