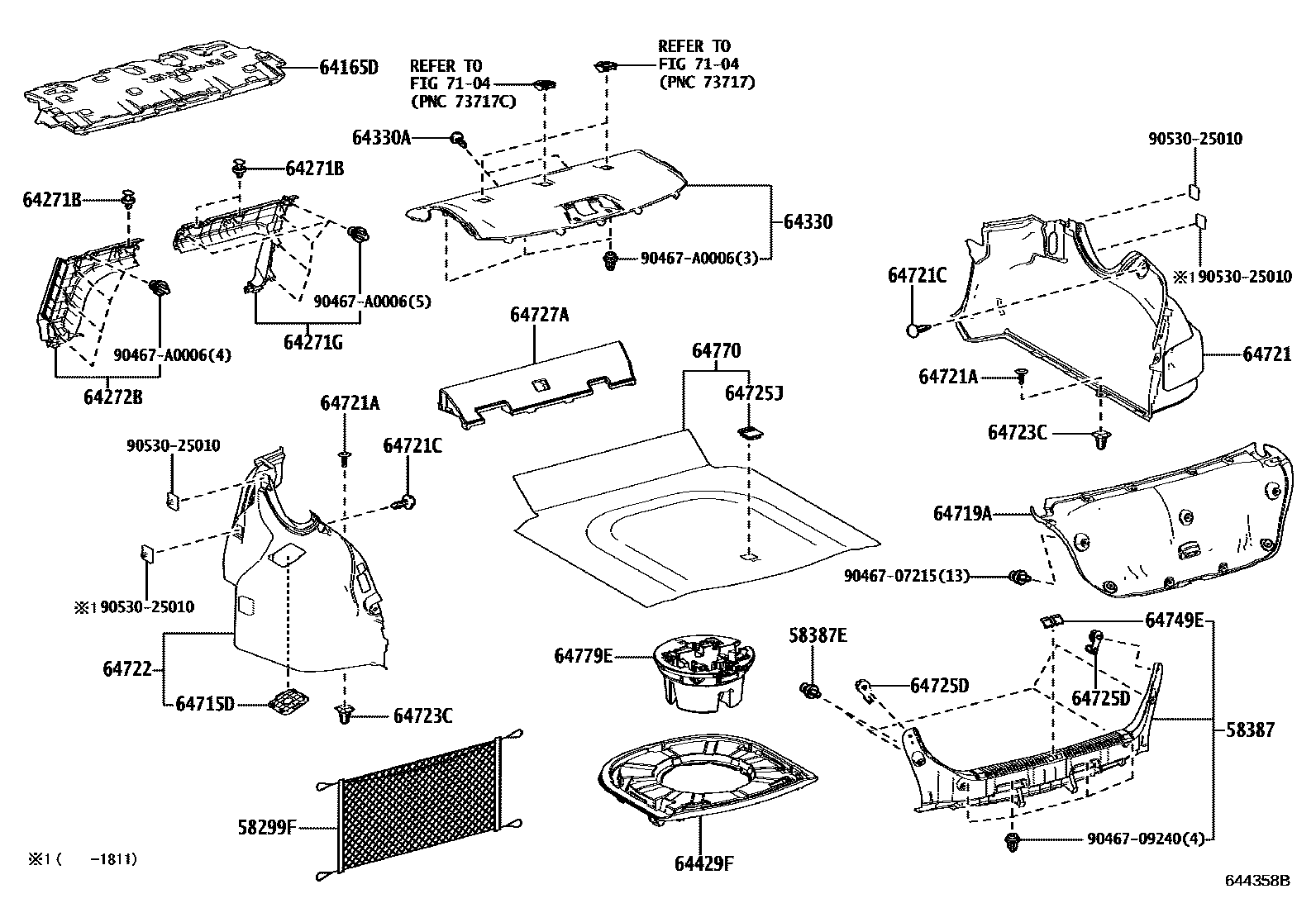

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58299FNET, BAGGAGE HOLDER
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
64165DCOVER, UPPER BACK PANEL HOLE, NO.1
64271BCLIP(FOR ROOM PARTITION BOARD)
64271GBOARD, ROOM PARTITION, RH
BLACK,TRIM1#,4#
BLACK,TRIM1#,2#,4#
64272BBOARD, ROOM PARTITION, LH
BLACK,TRIM1#,4#
BLACK,TRIM1#,2#,4#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64429FBOX, LUGGAGE COMPARTMENT TRIM
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM1#,4#
BLACK,TRIM1#,2#,4#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,4#
BLACK,TRIM1#,2#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
64721CCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
64723CCLIP, LUGGAGE COMPARTMENT TRIM COVER
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
64770COVER ASSY, SPARE WHEEL
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
64779ETRAY, SPARE WHEEL COVER
7104
9046707215
main90467-07215
9046709240
main90467-09240
90467A0006
main90467-A0006
9053025010
main90530-25010
28 parts on this diagram · 1 diagram in section
