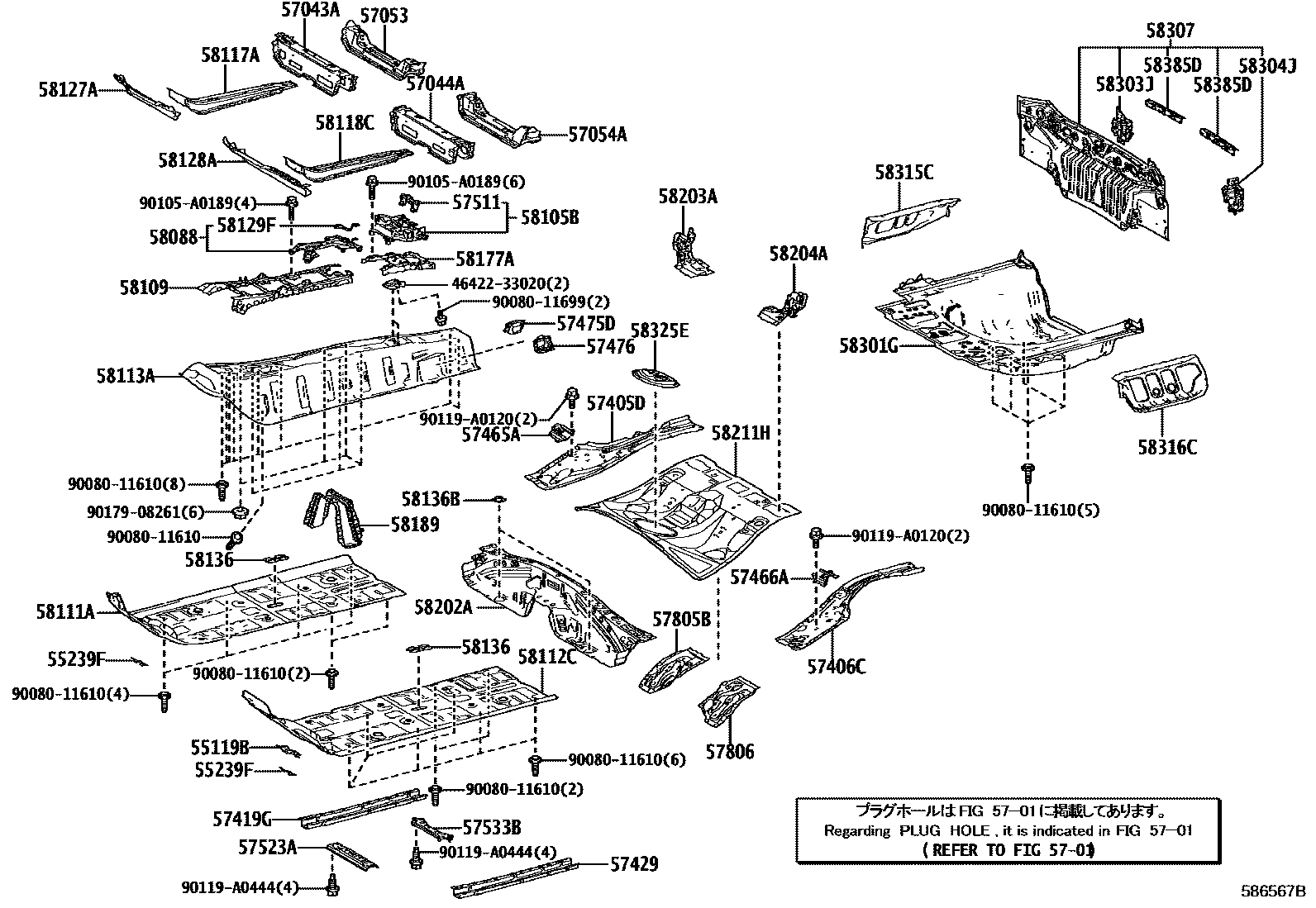

FLOOR PAN & LOWER BACK PANEL

55119BEXTENSION, DASH PANEL, LH

main55119-06010i201806-202008

55239FPLATE, DASH PANEL INSULATOR, NO.3

main55239-06050i201806-202008

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-06060i201806-202008

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-06060i201806-202008

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-06040i201806-202008

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-06090i201806-202008

57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH

main57405-06010i201806-202008

57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH

main57406-06010i201806-202008

sub57406-06060

sub90950-01919¥100

57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-07060i201806-202008

57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57419-07060i201806-202008

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-06010i201806-202008

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-06010i201806-202008

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-06060i201806-202008

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-06050i201806-202008

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-06060i201806-202008

57523ABRACE, CENTER FLOOR CROSSMEMBER

main57523-06010i201806-202008

57533BBRACE, FRONT FLOOR, CENTER

main57533-06070i201806-202008

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-06030i201806-202008

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-06030i201806-202008

58088BRACKET SUB-ASSY, FLOOR SHIFT LINK

main58088-06060i201806-202008

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06060i201806-202008

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-06010i201806-202008

58111APAN, FRONT FLOOR, RH

main58111-07050i201806-202001

sub58111-07051

main58111-07051i202002-202008

58112CPAN, FRONT FLOOR, LH

main58112-07010i201806-202001

sub58112-07011

main58112-07011i202002-202008

58113APANEL, FRONT FLOOR, CENTER

main58113-07010i201806-202008

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-06010i201806-202008

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58117-06010i201806-202008

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-06070i202008

main58127-33030i201806-202008

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-06070i202008-202107

sub58128-06071

main58128-06071i202108

main58128-33010i¥4,520201806-202008

sub58128-33040¥4,190

58129FCLAMP, SHIFT & SELECT CABLE

main58129-06010i201806-202008

58136COVER, FRONT FLOOR HOLE

main58136-06050i201806-202008

58136BCOVER, CENTER FLOOR HOLE

main58136-06070i201806-202008

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-06010i201806-202008

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-06140i201806-202008

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-06100i201806-202008

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-06020i201806-202008

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-06050i201806-202008

58211HPAN, CENTER FLOOR

main58211-06230i201806-201812

sub58211-06231

main58211-06231i201901-202008

58301GPAN SUB-ASSY, REAR FLOOR

main58301-06904i201806-202008

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-07020i201806-202008

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-07020i201806-202008

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-07050i201806-202008

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-06020i201806-202008

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-06040i201806-202008

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06080i201806-202008

58385DBRACKET, REAR BUMPER COVER

main58385-06150i201806-202008

4642233020CAP, PARKING BRAKE CABLE, CASING

main46422-33020

9008011610

main90080-11610

9008011699

main90080-11699¥110

90105A0189

main90105-A0189

90119A0120

main90119-A0120

90119A0444

main90119-A0444

9017908261

main90179-08261¥260

54 parts on this diagram · 1 diagram in section
