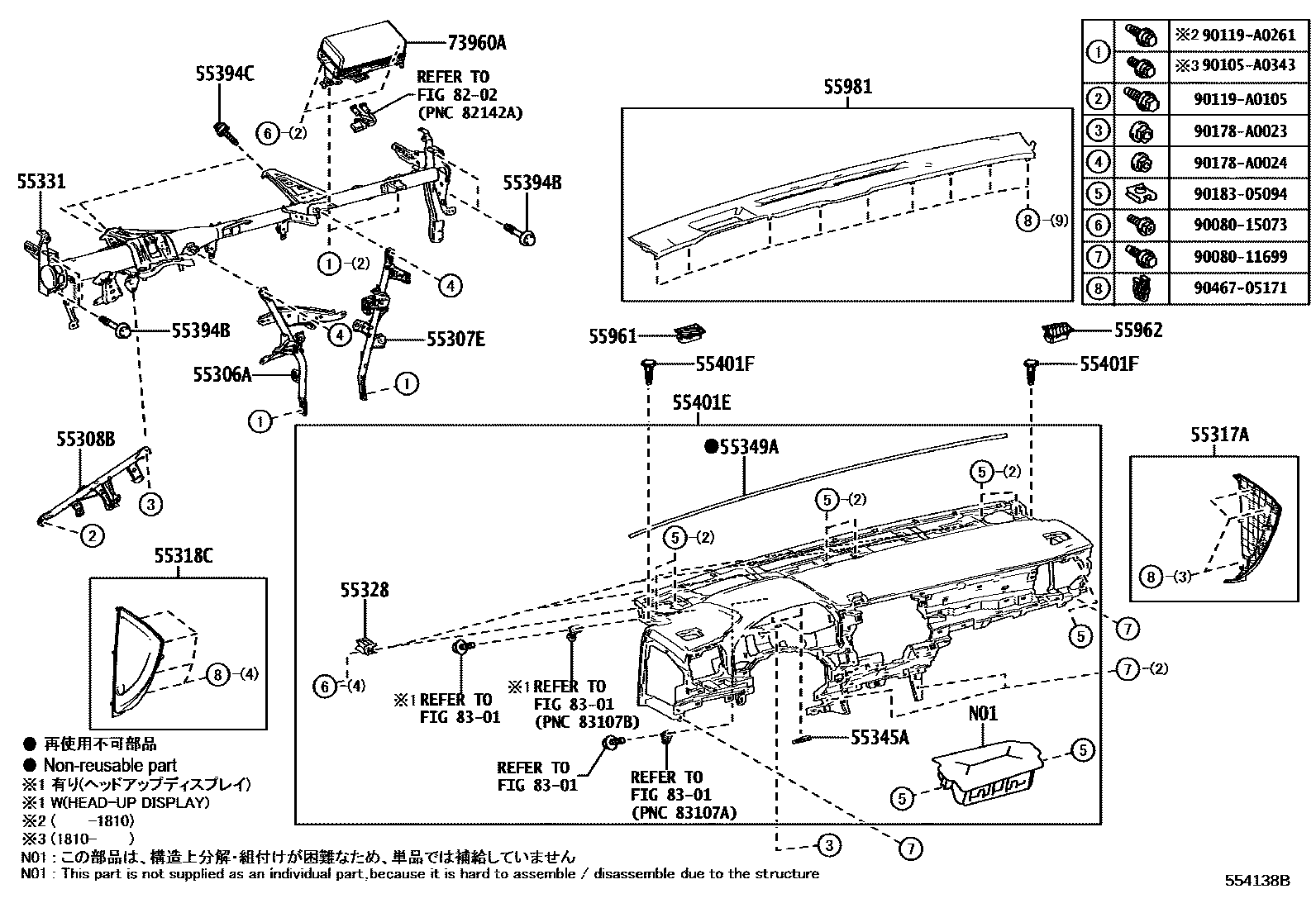

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-07060iGSX50201806-202008

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-07050iGSX50201806-202008

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-06160iGSX50201806-202008

55317APANEL, INSTRUMENT SIDE, RH

main55317-07050-C0iGSX50..XLE201806-202008

BLACK,TRIM1#,2#,4#

main55317-07050-C0iGSX50..XLE201806-202008

BLACK,TRIM1#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-07050-C0iGSX50..XLE201806-202008

BLACK,TRIM1#,2#,4#

main55318-07050-C0iGSX50..XLE201806-202008

BLACK,TRIM1#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iGSX50201806-202008

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-07080iGSX50201806-202008

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iGSX50201806-202008

55349ACUSHION, INSTRUMENT PANEL

main55349-06170iGSX50201806-202008

55394BBOLT, INSTRUMENT PANEL

main90105-A0280iGSX50201806-202008

55394CBOLT, INSTRUMENT PANEL

main90119-A0312iGSX50201806-202008

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-07120-B0iGSX50..XLE201806-202008

NEUTRAL WARM GRAY,TRIM1#

main55401-07120-C2iGSX50..XLE201806-202008

SOFT BLACK,TRIM2#,4#

main55401-07130-B0iGSX50..LIMD202008

NEUTRAL WARM GRAY,TRIM1#,4#

main55401-07130-B0iGSX50..LIMD201806-202008

NEUTRAL WARM GRAY,TRIM1#,43

main55401-07130-C2iGSX50..LIMD201806-202008

SOFT BLACK,TRIM40

main55401-07130-C2iGSX50..LIMD202008

SOFT BLACK,TRIM2#

55401FCLIP(FOR SAFETY PAD)

main52161-02020iGSX50201806-202008

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-07040-B0iGSX50..XLE201806-202008

NEUTRAL WARM GRAY,TRIM1#

main55961-07040-B0iGSX50..XLE201806-202008

NEUTRAL WARM GRAY,TRIM1#,43

main55961-07040-B0iGSX50..LIMD202008

NEUTRAL WARM GRAY,TRIM1#,4#

main55961-07040-C0iGSX50..LIMD201806-202008

BLACK,TRIM2#,4#

main55961-07040-C0iGSX50..XLE201806-202008

BLACK,TRIM40

main55961-07040-C0iGSX50..XLE202008

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-07040-B0iGSX50..XLE201806-202008

NEUTRAL WARM GRAY,TRIM1#,43

main55962-07040-B0iGSX50..XLE201806-202008

NEUTRAL WARM GRAY,TRIM1#

main55962-07040-B0iGSX50..XLE202008

NEUTRAL WARM GRAY,TRIM1#,4#

main55962-07040-C0iGSX50..LIMD201806-202008

BLACK,TRIM40

main55962-07040-C0iGSX50..LIMD202008

BLACK,TRIM2#

main55962-07040-C0iGSX50..XLE201806-202008

BLACK,TRIM2#,4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-07040-B0iGSX50..XLE201806-202008

NEUTRAL WARM GRAY,TRIM1#

main55981-07040-C0iGSX50..XLE201806-202008

BLACK,TRIM2#,4#

main55981-07060-B0iGSX50..LIMD201806-202008

NEUTRAL WARM GRAY,TRIM1#,43

main55981-07060-B0iGSX50..LIMD202008

NEUTRAL WARM GRAY,TRIM1#,4#

main55981-07060-C0iGSX50..LIMD201806-202008

BLACK,TRIM40

main55981-07060-C0iGSX50..LIMD202008

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-07100iGSX50201806-201809

main73960-07111iGSX50201809-202008

8202

8301

9008011699

main90080-11699

9008015073

main90080-15073

90105A0343

main90105-A0343

90119A0105

main90119-A0105

90119A0261

main90119-A0261

90178A0023

main90178-A0023

90178A0024

main90178-A0024

9018305094

main90183-05094

9046705171

main90467-05171

28 parts on this diagram · 4 diagrams in section
