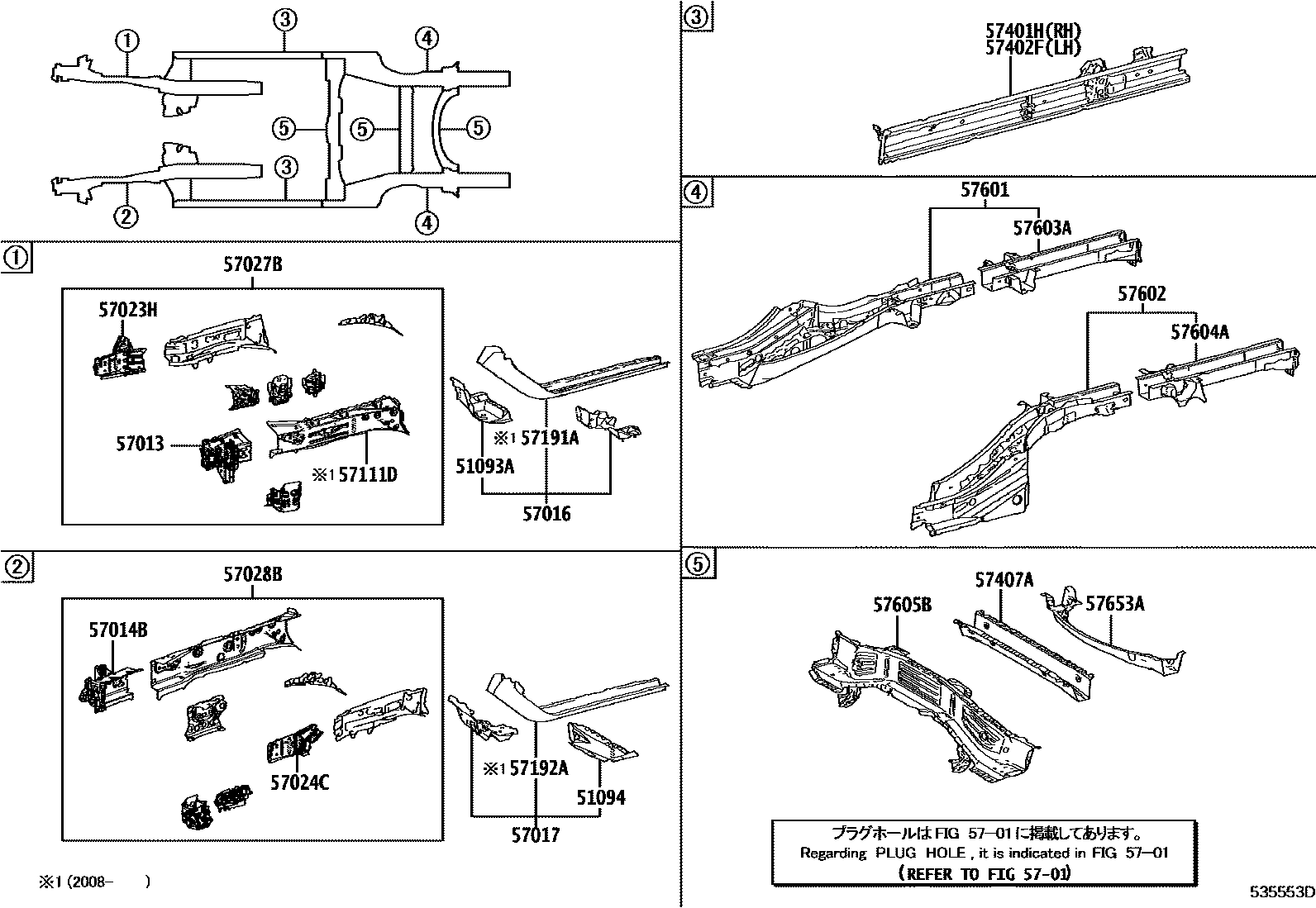

FLOOR SIDE MEMBER

51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH

main51093-06010iGSX50201806-202008

main57197-06081iGSX50202008

51094HOOK SUB-ASSY, TRANSPORT, FRONT LH

main51094-06010iGSX50201806-202008

main57198-06081iGSX50202008

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-06020iGSX50201806-202008

sub57013-06021

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-06020iGSX50201806-202008

sub57014-06021

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-06160iGSX50201806-202008

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-06140iGSX50201806-202008

57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-06010iGSX50201806-202008

57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-06010iGSX50201806-202008

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-06906iGSX50201806-202008

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-06906iGSX50201806-202008

57111DMEMBER, FRONT SIDE, INNER RH

main57111-06040iGSX50202008

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-33020iGSX50202008

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-33020iGSX50202008

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-07060iGSX50201806-202008

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-07060iGSX50201806-202008

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-06020iGSX50201806-202008

main57407-06021iGSX50202012

sub57407-06022

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06430iGSX50201806-202008

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06260iGSX50201806-202008

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-06020iGSX50201806-202008

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-06050iGSX50201806-202008

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06200iGSX50201806-202008

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-06090iGSX50201806-202008

23 parts on this diagram · 1 diagram in section
