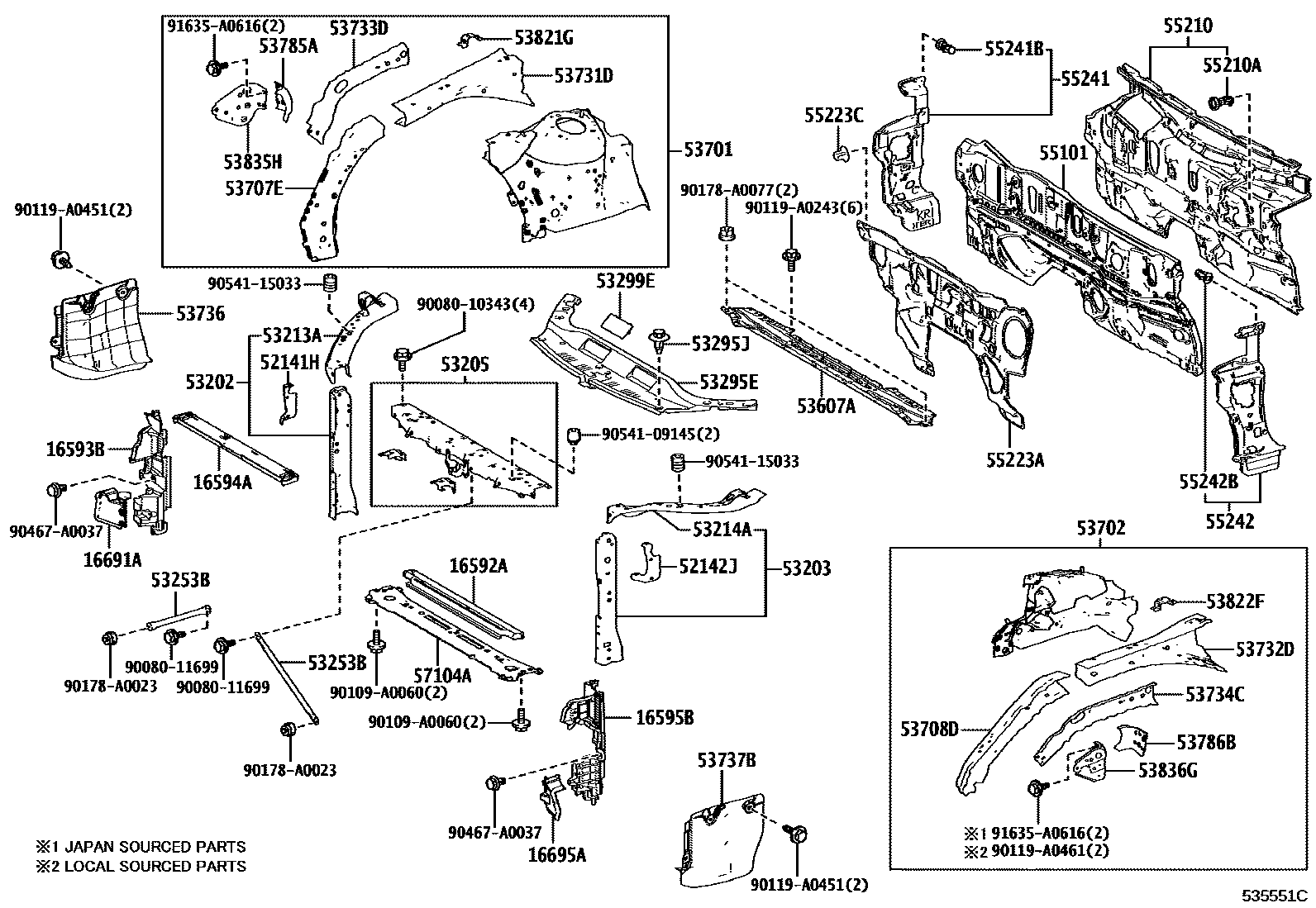

FRONT FENDER APRON & DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0010i2GRFKS..GSX50201806-202008

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0120i2GRFKS..GSX50201806-202008

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0010i2GRFKS..GSX50201806-202008

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0120i2GRFKS..GSX50201806-202008

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-F0110i2GRFKS..GSX50201806-202008

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-F0110i2GRFKS..GSX50201806-202004

main16695-F0111i2GRFKS..GSX50202005-202008

52141HARM, FRONT BUMPER, UPPER RH

main52141-07040iGSX50201806-202008

52142JARM, FRONT BUMPER, UPPER LH

main52142-07040iGSX50201806-202008

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-07040iGSX50201806-202008

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-07040iGSX50201806-202008

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-06905iGSX50201806-202008

53213ASUPPORT, RADIATOR, UPPER RH

main53213-07901iGSX50201806-202008

53214ASUPPORT, RADIATOR, UPPER LH

main53214-07901iGSX50201806-202008

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-06010×2iGSX50201806-202008

53295ESEAL, COOL AIR INTAKE DUCT

main53295-07040iGSX50201806-202008

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-07217×7iGSX50201806-202008

53299EPLATE, COOL AIR INTAKE DUCT

main53299-06010iGSX50201806-202008

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-06010iGSX50201806-202008

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-07050iGSX50201806-202008

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-07050iGSX50201806-202008

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-06060iGSX50201806-202008

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-06010iGSX50201806-202008

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-06190iGSX50201806-202008

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-06180iGSX50201806-202008

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-06150iGSX50201806-202008

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-06150iGSX50201806-202008

53736SEAL, FRONT FENDER APRON, RH

main53736-06070iGSX50201806-202008

53737BSEAL, FRONT FENDER APRON, LH

main53737-06130iGSX50201806-202008

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-06010iGSX50201806-202008

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-06010iGSX50201806-202008

53821GBRACKET, FRONT FENDER, REAR RH

main53821-07040iGSX50201806-202008

53822FBRACKET, FRONT FENDER, REAR LH

main53822-07020iGSX50201806-202008

53835HBRACE, FRONT FENDER TO EXTENSION, RH

main53835-07030iGSX50201806-202008

53836GBRACE, FRONT FENDER TO EXTENSION, LH

main53836-07040iGSX50201806-202008

55101PANEL SUB-ASSY, DASH

main55101-06440iGSX50201806-202008

55210INSULATOR ASSY, DASH PANEL

main55210-06420iGSX50201806-202002

main55210-06421iGSX50202002-202008

55210ACLIP

main90467-11122×6iGSX50201806-202008

55223AINSULATOR, DASH PANEL, OUTER

main55223-06500iGSX50201806-202008

55223CCLIP

main90467-06197×5iGSX50201806-202008

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-06010iGSX50201806-202008

55241BCLIP, FRONT PANEL SIDE SILENCER

main90467-13079×3iGSX50201806-202008

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-06020iGSX50201806-202008

55242BCLIP, FRONT PANEL SIDE SILENCER

main90467-13079×3iGSX50201806-202008

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-06060iGSX50201806-202008

9008010343

main90080-10343

9008011699

main90080-11699

90109A0060

main90109-A0060

90119A0243

main90119-A0243

90119A0451

main90119-A0451

90119A0461

main90119-A0461

90178A0023

main90178-A0023

90178A0077

main90178-A0077

90467A0037

main90467-A0037

9054109145

main90541-09145

9054115033

main90541-15033

91635A0616

main91635-A0616

56 parts on this diagram · 1 diagram in section
