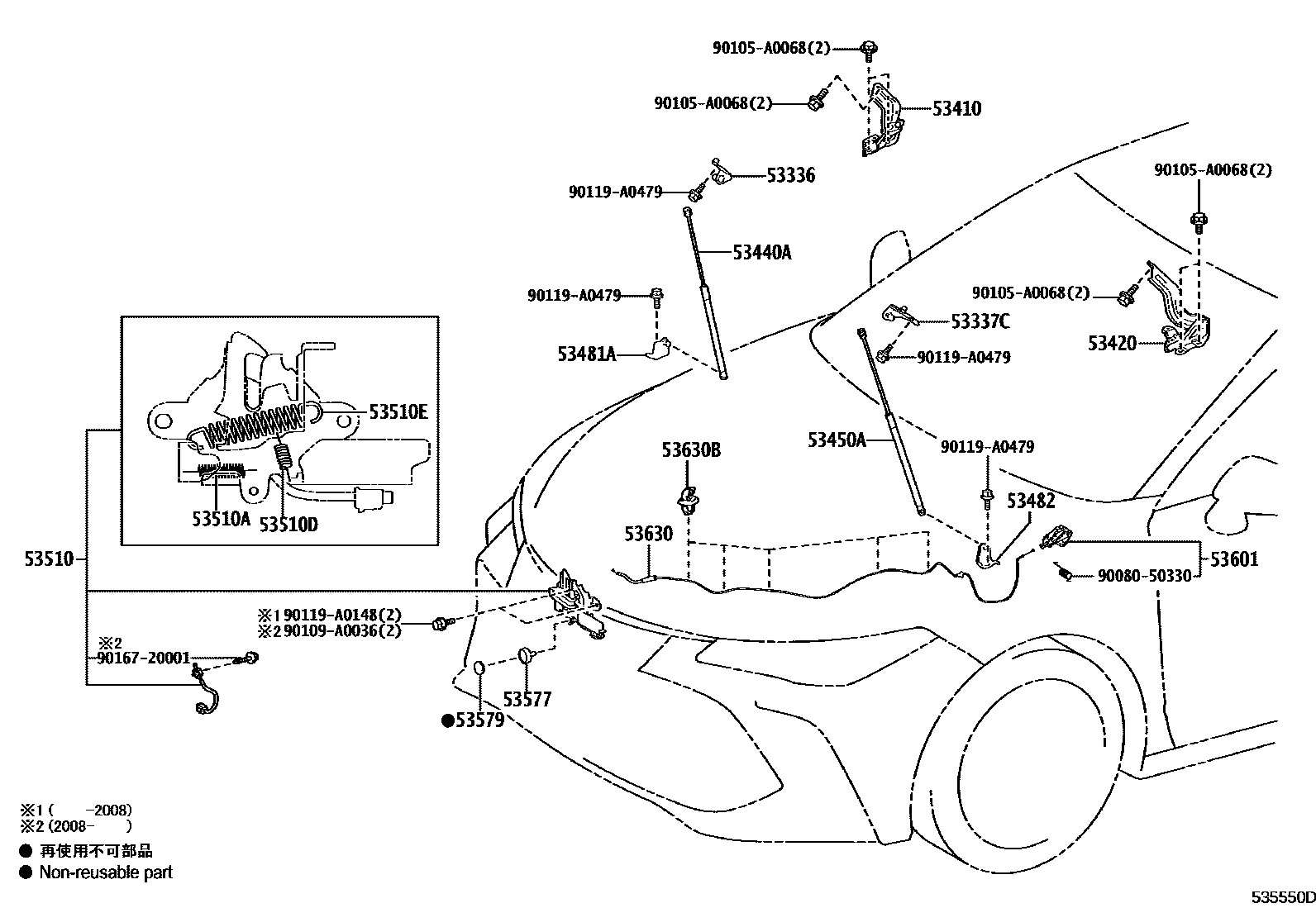

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-06080iGSX50201806-202008

53337CBRACKET, HOOD STAY, LH

main53337-06070iGSX50201806-202008

53410HINGE ASSY, HOOD, RH

main53410-07020iGSX50201806-202008

53420HINGE ASSY, HOOD, LH

main53420-07020iGSX50201806-202008

53440ASUPPORT ASSY, HOOD, RH

main53440-07010iGSX50201806-202008

53450ASUPPORT ASSY, HOOD, LH

main53440-07010iGSX50201806-202008

53481ABRACKET, HOOD SUPPORT, RH

main53481-07020iGSX50201806-202008

53482BRACKET, HOOD SUPPORT, LH

main53482-07020iGSX50201806-202008

53510LOCK ASSY, HOOD

main53510-07030iGSX50201806-202008

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iGSX50201806-202008

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iGSX50201806-202008

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iGSX50201806-202008

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-0E010iGSX50201806-202008

53579CAP, HOOD LOCK NUT

main53579-0E010iGSX50201806-202008

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02020-C3iGSX50..LIMD201806-201905

BLACK,TRIM1#,2#,4#

main53601-02040-C0iGSX50..LIMD201905-202008

BLACK,TRIM1#,2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-06230iGSX50201806-201905

main53630-06231iGSX50201905-202008

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×5iGSX50201806-202008

9008050330

main90080-50330

90105A0068

main90105-A0068

90109A0036

main90109-A0036

90119A0148

main90119-A0148

90119A0479

main90119-A0479

9016720001

main90167-20001

23 parts on this diagram · 1 diagram in section
