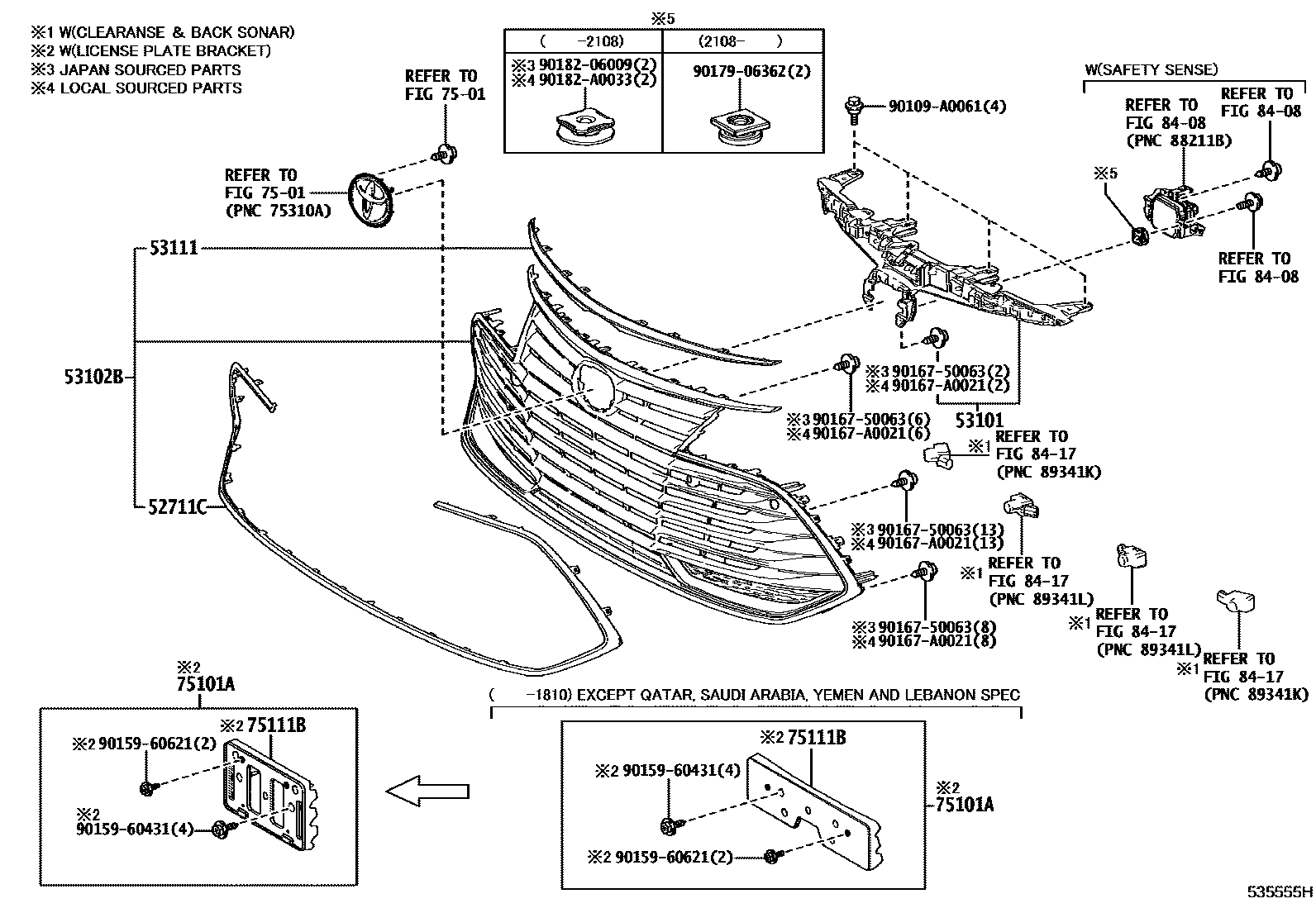

RADIATOR GRILLE

52711CMOULDING, FRONT BUMPER

main52711-07060iGSX50201806-202008

53101GRILLE SUB-ASSY, RADIATOR

main53101-07120iGSX50202108

NO PAINT REQ.

main53101-07200iGSX50201806-202108

NO PAINT REQ.

53102BGRILLE SUB-ASSY, RADIATOR, LOWER

main53102-07070iGSX50201806-202008

53111GRILLE, RADIATOR

main53111-07100iGSX50201806-202008

PLATED

7501

75101ABRACKET SUB-ASSY, FRONT LICENSE PLATE

main75101-07090iGSX50201806-201810

main75101-07100iGSX50201810-202008

75111BBRACKET, FRONT LICENSE PLATE

main75111-07110iGSX50201806-201810

main75111-07120iGSX50201810-202008

8408

8417

90109A0061

main90109-A0061

9015960431

main90159-60431

9015960621

main90159-60621

9016750063

main90167-50063

90167A0021

main90167-A0021

9017906362

main90179-06362

9018206009

main90182-06009

90182A0033

main90182-A0033

17 parts on this diagram · 1 diagram in section
