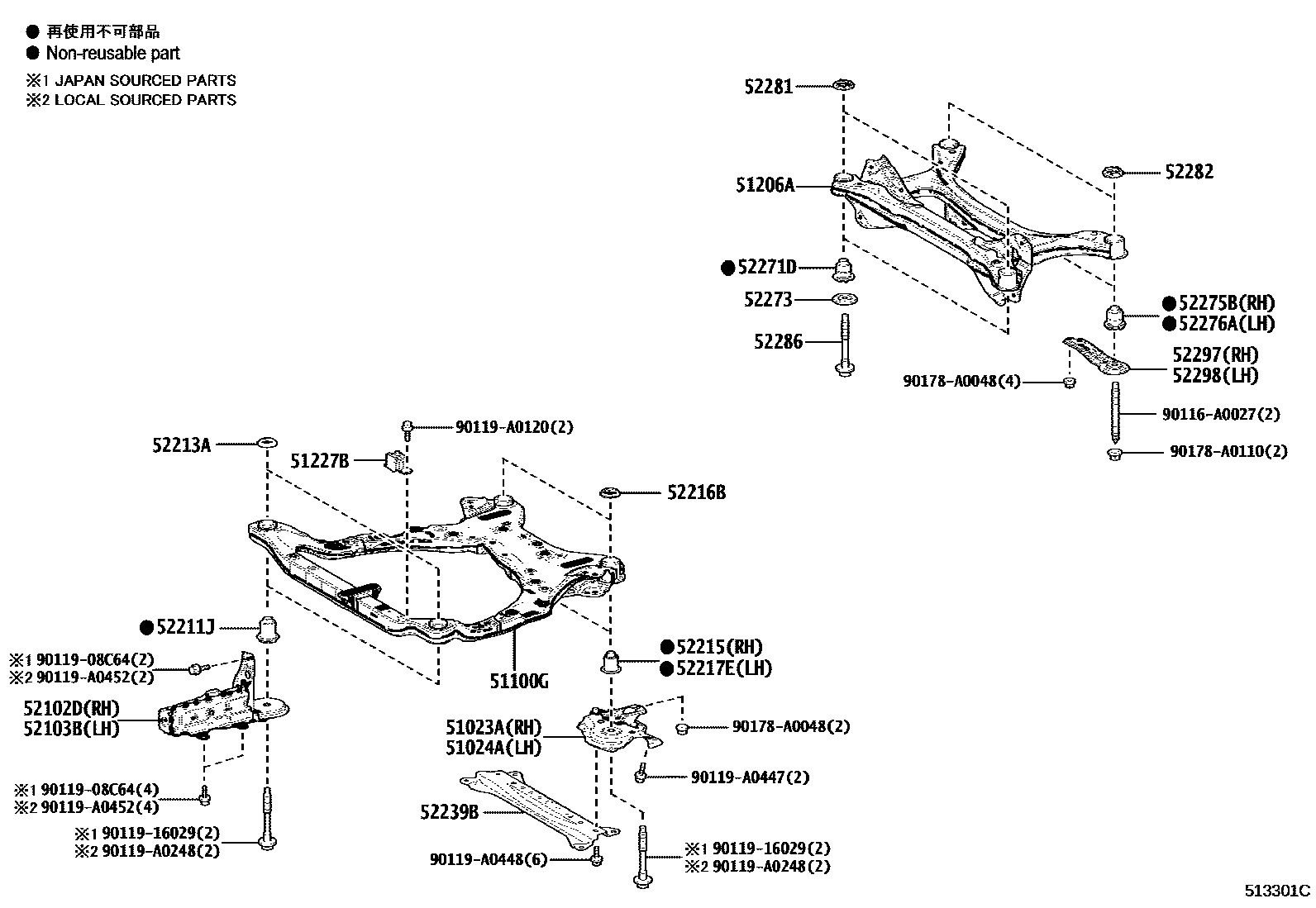

SUSPENSION CROSSMEMBER & UNDER COVER
51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51100GFRAME ASSY, FRONT
sub51100-06290
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC
52102DEXTENSION SUB-ASSY, FRONT BUMPER, RH
52103BEXTENSION SUB-ASSY, FRONT BUMPER, LH
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH
52239BPLATE, BODY MOUNTING
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52273STOPPER, REAR SUSPENSION MEMBER, LOWER
52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH
52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52281CUSHION, DIFFERENTIAL SUPPORT MEMBER
52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH
90116A0027
main90116-A0027
9011908C64
main90119-08C64
9011916029
main90119-16029
90119A0120
main90119-A0120
90119A0248
main90119-A0248
90119A0447
main90119-A0447
90119A0448
main90119-A0448
90119A0452
main90119-A0452
90178A0048
main90178-A0048
90178A0110
main90178-A0110
32 parts on this diagram · 2 diagrams in section
