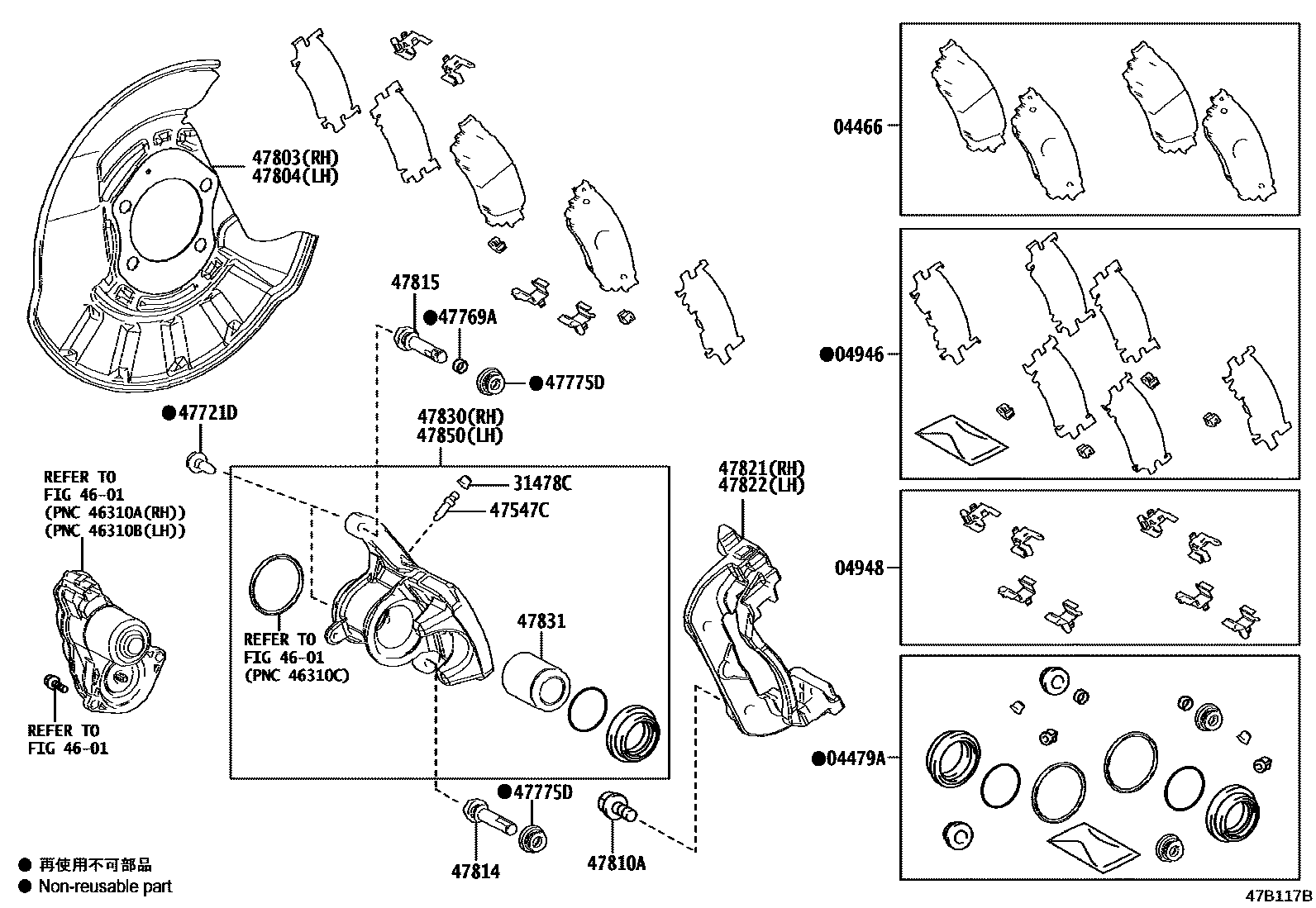

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0E070iGSX50201806-202008

MARK AK NS554

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0E110iGSX50201806-202008

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02120iGSX50¥1,550202008

main04946-33090iGSX50¥1,550201806-202008

04948FITTING KIT, DISC BRAKE, REAR

main04948-33060iGSX50¥1,730201806-202008

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGSX50¥160201806-202008

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGSX50¥200201806-202008

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iGSX50¥270201806-201812

*8-1.00PX23-12.5

sub90016-AA614¥270

main90016-AA614iGSX50¥270201812-202008

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iGSX50¥50201806-202008

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-06170iGSX50201806-202205

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-06010iGSX50201806-202008

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-06010iGSX50201806-202008

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90080-10395iGSX50201806-202008

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-0R050iGSX50201812-202008

main47814-78010iGSX50¥510201806-201812

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0R050iGSX50201812-202008

main47815-78010iGSX50¥510201806-201812

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-06170iGSX50201806-202008

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-06160iGSX50201806-202008

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-06170iGSX50201806-202008

47831PISTON, REAR DISC BRAKE

main47831-06171iGSX50202107-202207

main47831-06180iGSX50202008-202107

main47831-06180iGSX50201903-202008

MADE IN CHINA

main47831-78010iGSX50¥1,060201806-201903

MADE IN TMMNA

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-06160iGSX50201806-202008

20 parts on this diagram · 1 diagram in section
