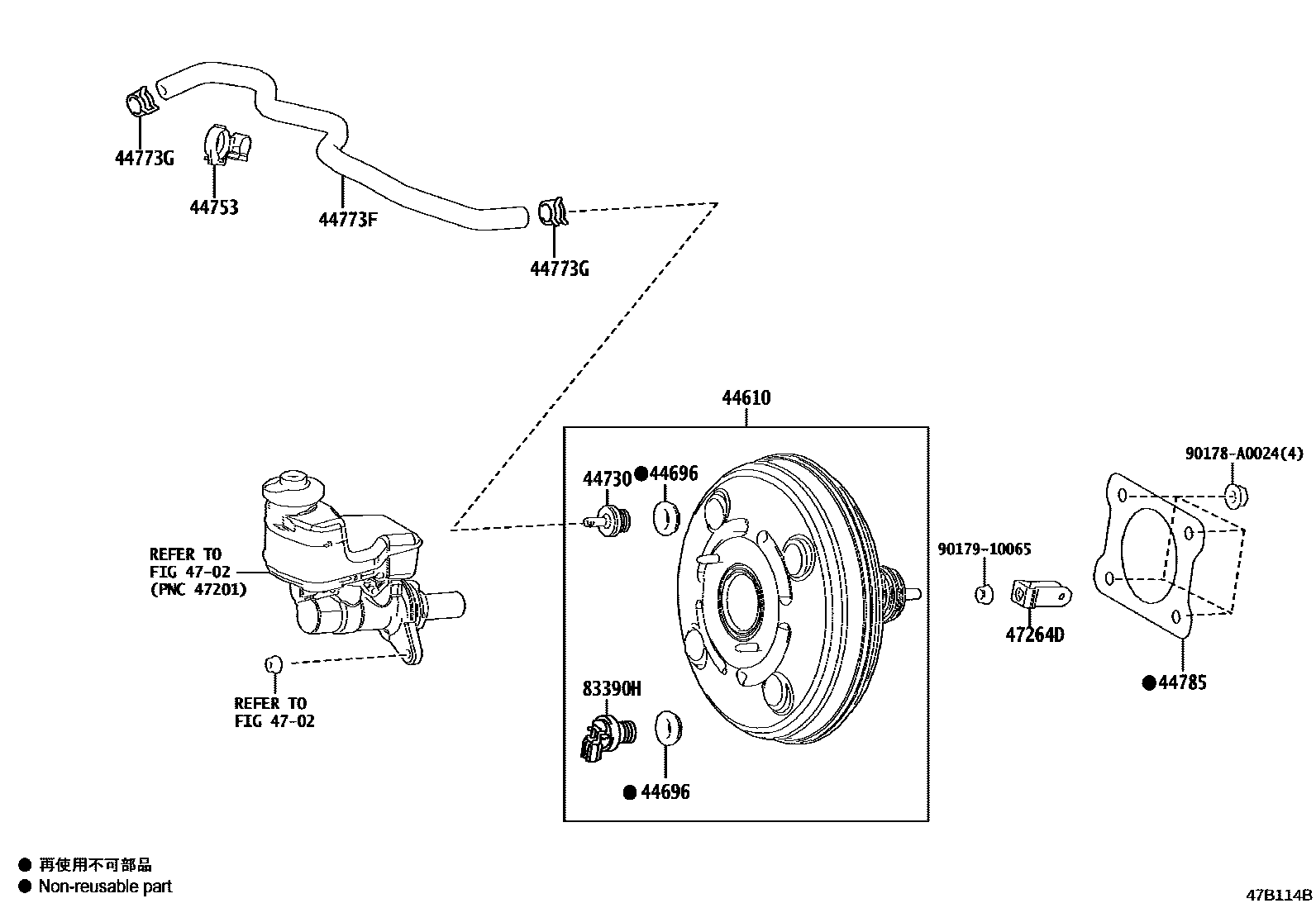

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-07150iGSX50201806-202008

44696GROMMET, CHECK VALVE

main90080-48071iGSX50201806-202008

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iGSX50201806-202008

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-48340iGSX50201806-202008

44773FHOSE, UNION TO CHECK VALVE

main44773-06180iGSX50201806-202008

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGSX50201806-202008

44785GASKET, BRAKE BOOSTER

main44785-02060iGSX50201806-202008

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iGSX50201806-202008

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGSX50201806-202008

90178A0024

main90178-A0024

9017910065

main90179-10065

12 parts on this diagram · 1 diagram in section
