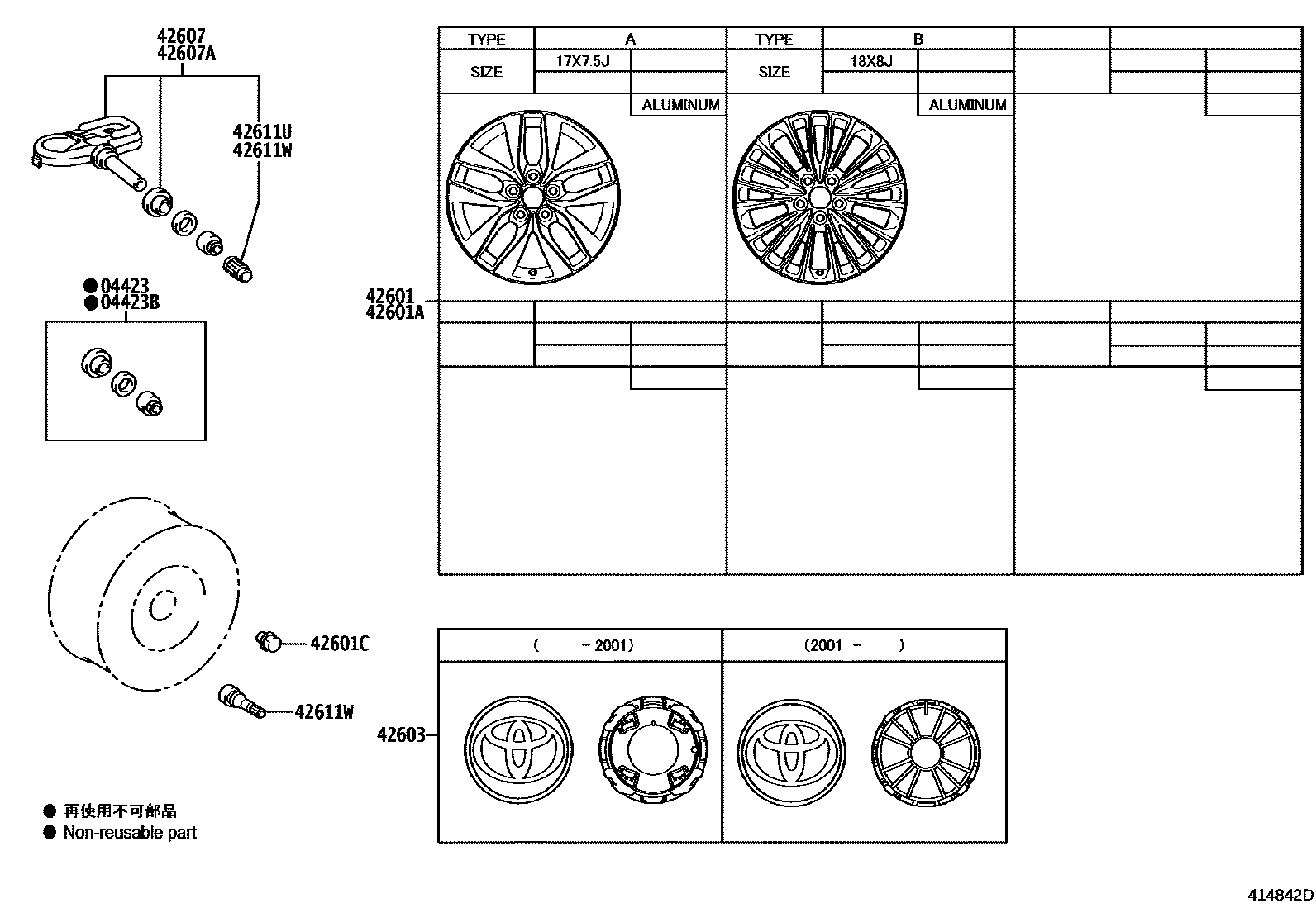

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0E010iGSX50201806-202008

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

main04423-0E010iGSX50201806-202008

42601WHEEL, DISC

main42611-07140iGSX50..XLE201806-202002

17X7.5J,#,TYPE A:REFER ILLUST.

sub42611-07141

main42611-07141iGSX50..XLE202003-202008

17X7.5J,#,TYPE A:REFER ILLUST.

main4261A-07030iGSX50..LIMD201806-202008

18X8J, #,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-07140iGSX50..XLE201806-202002

17X7.5J,#,TYPE A:REFER ILLUST.

sub42611-07141

main42611-07141iGSX50..XLE202003-202008

17X7.5J,#,TYPE A:REFER ILLUST.

main4261A-07030iGSX50..LIMD201806-202008

18X8J, #,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90084-94001iGSX50201806-202008

sub90942-A1009

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-06150iGSX50201806-202001

*ALU

main42603-06160iGSX50201806-202001

*ALU,COLOR:BLACK METALIC

sub42603-06150

main42603-08010iGSX50202001-202008

*ALU

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-07010iGSX50201806-202008

main42607-07010iGSX50202008

TYPE A:REFER ILLUST.

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-07010iGSX50201806-202008

TYPE A:REFER ILLUST.

42611UCAP, TIRE VALVE

main90942-A5002iGSX50201806-202008

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-A5002iGSX50201806-202008

10 parts on this diagram · 1 diagram in section
