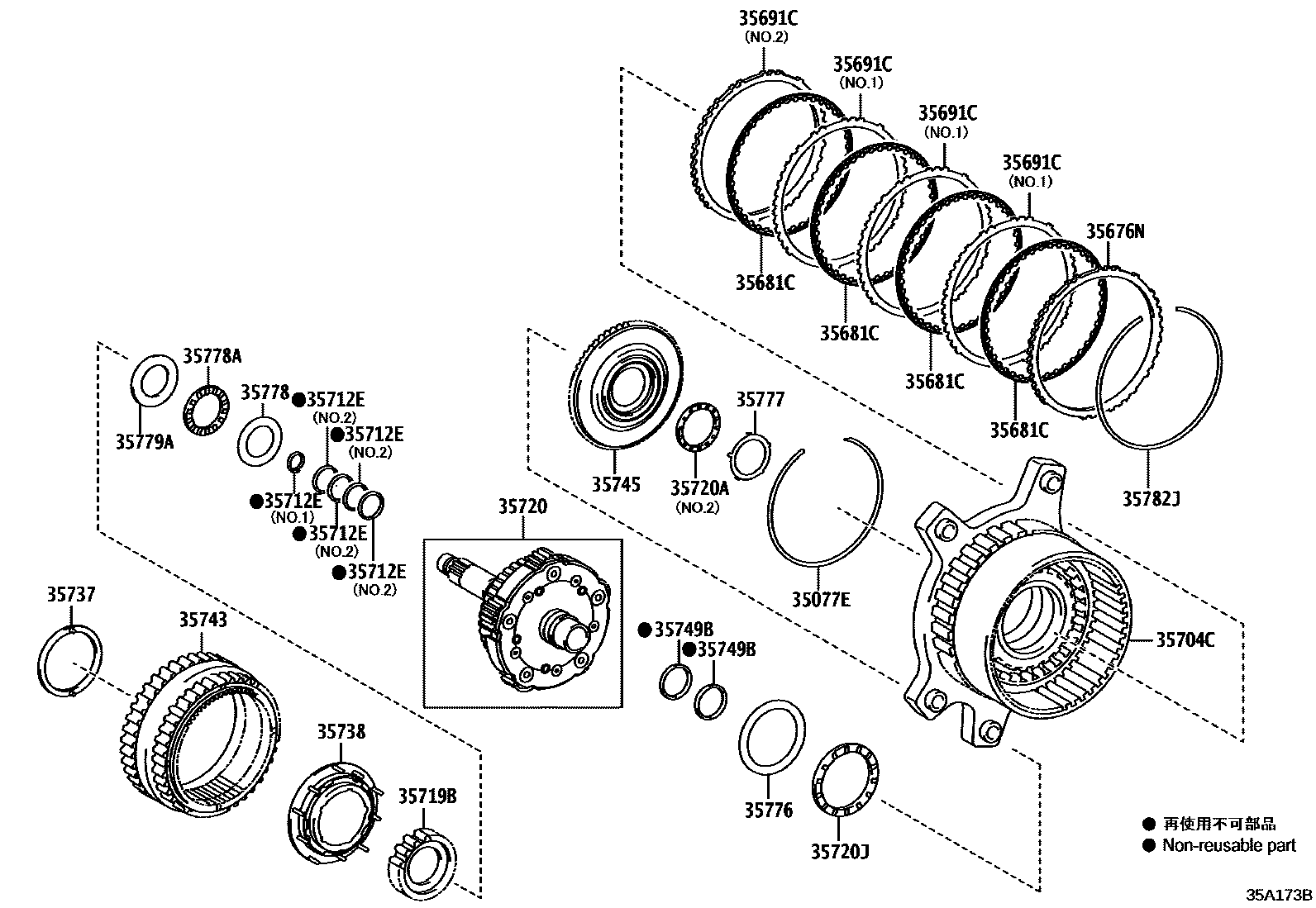

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35676NFLANGE, BRAKE, NO.1
T=3.5,MARK 0,TYPE B:REFER 35-01
T=3.5,MARK 0,TMMWV:REFER 35-01
T=3.6,MARK 1,TYPE B:REFER 35-01
T=3.6,MARK 1,TMMWV:REFER 35-01
T=3.7,MARK 2,TMMWV:REFER 35-01
T=3.7,MARK 2,TYPE B:REFER 35-01
T=3.8,MARK 3,TMMWV:REFER 35-01
T=3.8,MARK 3,TYPE B:REFER 35-01
T=3.9,MARK 4,TYPE B:REFER 35-01
T=3.9,MARK 4,TMMWV:REFER 35-01
T=4.0,MARK 5,TMMWV:REFER 35-01
T=4.0,MARK 5,TYPE B:REFER 35-01
T=4.1,MARK 6,TMMWV:REFER 35-01
T=4.1,MARK 6,TYPE B:REFER 35-01
T=3.5,MARK 0,TOYOTA:REFER 35-01
T=3.5,MARK 0,TYPE A:REFER 35-01
T=3.6,MARK 1,TOYOTA:REFER 35-01
T=3.6,MARK 1,TYPE A:REFER 35-01
T=3.7,MARK 2,TYPE A:REFER 35-01
T=3.7,MARK 2,TOYOTA:REFER 35-01
T=3.8,MARK 3,TOYOTA:REFER 35-01
T=3.8,MARK 3,TYPE A:REFER 35-01
T=3.9,MARK 4,TOYOTA:REFER 35-01
T=3.9,MARK 4,TYPE A:REFER 35-01
T=4.0,MARK 5,TYPE A:REFER 35-01
T=4.0,MARK 5,TOYOTA:REFER 35-01
T=4.1,MARK 6,TOYOTA:REFER 35-01
T=4.1,MARK 6,TYPE A:REFER 35-01
35681CDISC, BRAKE, NO.1
TMMWV:REFER 35-01
TYPE B:REFER 35-01
TOYOTA:REFER 35-01
TYPE A:REFER 35-01
35691CPLATE, BRAKE, NO.1
T/P B:SEE 35-01,NO.1
NO.1,TMMWV:SEE 35-01
NO.2,TMMWV:SEE 35-01
T/P B:SEE 35-01,NO.2
NO.1,TMC:REFER 35-01
T/P A:SEE 35-01,NO.1
T/P A:SEE 35-01,NO.2
NO.2,TMC:REFER 35-01
35704CGEAR SUB-ASSY, COUNTER DRIVE
TYPE A:REFER 35-01
35712ERING, INPUT SHAFT OIL SEAL
TOYOTA:REFER 35-01
TYPE A:REFER 35-01
NO.1
NO.2
35719BGEAR, PLANETARY SUN
TYPE A:REFER 35-01
TOYOTA:REFER 35-01
35720GEAR ASSY, FRONT PLANETARY
TYPE B:REFER 35-01
TYPE A:REFER 35-01
TOYOTA:REFER 35-01
TYPE A:REFER 35-01
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
T/P B:SEE 35-01,NO.1
NO.1
T/P A:SEE 35-01,NO.1
T/P A:SEE 35-01,NO.1
NO.2
35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
35737WASHER, PLANETARY CARRIER THRUST
TMMWV:REFER 35-01
TYPE B:REFER 35-01
TOYOTA:REFER 35-01
TYPE A:REFER 35-01
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35745FLANGE, FRONT PLANETARY RING GEAR
TMMWV:REFER 35-01
TYPE B:REFER 35-01
TOYOTA:REFER 35-01
TYPE A:REFER 35-01
35749BRING, INPUT SHAFT OIL SEAL, REAR
35776GEAR, PRIMARY REDUCTION DRIVEN
TOYOTA:REFER 35-01
TYPE A:REFER 35-01
TMMWV:REFER 35-01
TYPE B:REFER 35-01
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35782JRING, SNAP
TOYOTA:REFER 35-01
TYPE A:REFER 35-01
TMMWV:REFER 35-01
TYPE B:REFER 35-01
21 parts on this diagram · 2 diagrams in section
