TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

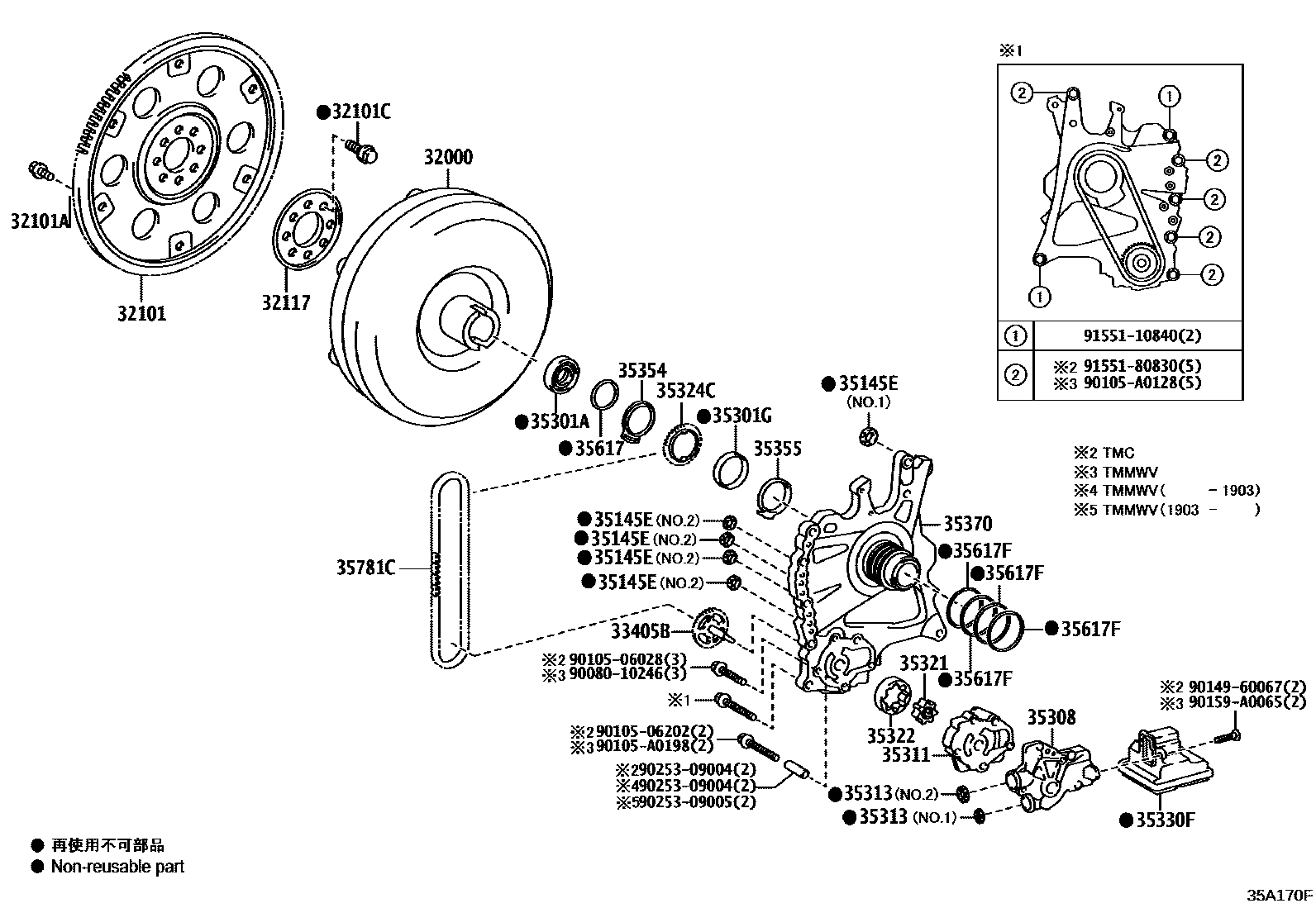

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-06070i201806-202008
(L)
main32000-48060i201806-202008
(J)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-0E010i201806-202008
(L)
main32101-48010i201806-202008
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i201806-202008
*9-1.25PX12.4-7.3,BLACK
main90119-09025i201806-202008
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i201806-202008
*10-1.25PX18-13
32117SPACER, DRIVE PLATE, REAR
main32117-32020i201806-202008
33405BSHAFT SUB-ASSY, OIL PUMP DRIVE
main33405-06010i201806-202008
TMMWV:REFER 35-01
main33405-06010i202008
TYPE B:REFER 35-01
main33405-48010i202008
TYPE A:REFER 35-01
main33405-48010i201806-202008
TOYOTA:REFER 35-01
35145EGASKET, TRANSAXLE CASE
main35145-07010i202008-202102
T/P B:SEE 35-01,NO.1
main35145-07010i201806-202008
NO.1,TMMWV:SEE 35-01
main35145-33010i201806-202008
NO.1,TMC:REFER 35-01
main35145-33010i202008-202102
T/P A:SEE 35-01,NO.1
main35145-33020i202103
T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1
main35145-33040i202103
T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2
main35145-48030i202008-202102
T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2
main35145-48030i201806-202008
NO.2,TMC:REFER 35-01,NO.2,TMMWV:SEE 35-01
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-51013i201806-202008
35301GBEARING,NEEDLE ROLLER
main90364-51004i201806-202008
35308COVER SUB-ASSY, FRONT OIL PUMP
main35308-06010i202008
TYPE B:REFER 35-01
main35308-06010i201806-202008
TMMWV:REFER 35-01
main35308-48110i201806-202008
TOYOTA:REFER 35-01
main35308-48110i202008
TYPE A:REFER 35-01
35311BODY, FRONT OIL PUMP
main35311-06030i201806-202008
TMMWV:REFER 35-01
main35311-06030i202008
TYPE B:REFER 35-01
main35311-48040i202008
TYPE A:REFER 35-01
main35311-48040i201806-202008
TOYOTA:REFER 35-01
35313GASKET, FRONT OIL PUMP COVER
main35313-48020i201806-202008
NO.1
main35313-48030i201806-202008
NO.2
35321GEAR, FRONT OIL PUMP DRIVE
main35321-06160i201806-202008
T=16.66,TMMWV:REFER 35-01
main35321-06160i202008
T=16.66,TYPE B:REFER 35-01
main35321-48110i201806-202008
T=16.66,TOYOTA:REFER 35-01
main35321-48110i202008
T=16.66,TYPE A:REFER 35-01
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-06160i201806-202008
T=16.66,TMMWV:REFER 35-01
main35322-06160i202008
T=16.66,TYPE B:REFER 35-01
main35322-48110i202008
T=16.66,TYPE A:REFER 35-01
main35322-48110i201806-202008
T=16.66,TOYOTA:REFER 35-01
35324CSPROCKET, TRANSMISSION OIL PUMP DRIVE
main35324-06010i202008
TYPE B:REFER 35-01
main35324-06010i201806-202008
TMMWV:REFER 35-01
main35324-48040i202008
TYPE A:REFER 35-01
main35324-48040i201806-202008
TOYOTA:REFER 35-01
35330FSTRAINER ASSY, OIL
main35330-06020i202008
TYPE B:REFER 35-01
main35330-06020i201806-202008
TMMWV:REFER 35-01
main35330-48040i201806-202008
TOYOTA:REFER 35-01
main35330-48040i202008
TYPE A:REFER 35-01
35354WASHER, OIL PUMP SPROCKET THRUST, FRONT
main35354-48010i201806-202008
35355WASHER, OIL PUMP SPROCKET THRUST, REAR
main35355-48010i201806-202012
main35355-48011i202012
35370SHAFT ASSY, STATOR
main35370-06040i201806-202008
TMMWV:REFER 35-01
main35370-06040i202008
TYPE B:REFER 35-01
main35370-48040i202008
TYPE A:REFER 35-01
main35370-48040i201806-202008
TOYOTA:REFER 35-01
35617RING, CLUTCH DRUM OIL SEAL
main35617-48050i201806-202008
35617FRING, CLUTCH DRUM OIL SEAL
main35617-48060i201806-202008
35781CCHAIN, TRANSMISSION DRIVE
main35781-06010i201806-202008
(L)
main35781-48020i201806-202008
(J)
9008010246
main90080-10246
9010506028
main90105-06028
9010506202
main90105-06202
90105A0128
main90105-A0128
90105A0198
main90105-A0198
9014960067
main90149-60067
90159A0065
main90159-A0065
9025309004
main90253-09004
9025309005
main90253-09005
9155110840
main91551-10840
9155180830
main91551-80830

33 parts on this diagram · 2 diagrams in section
