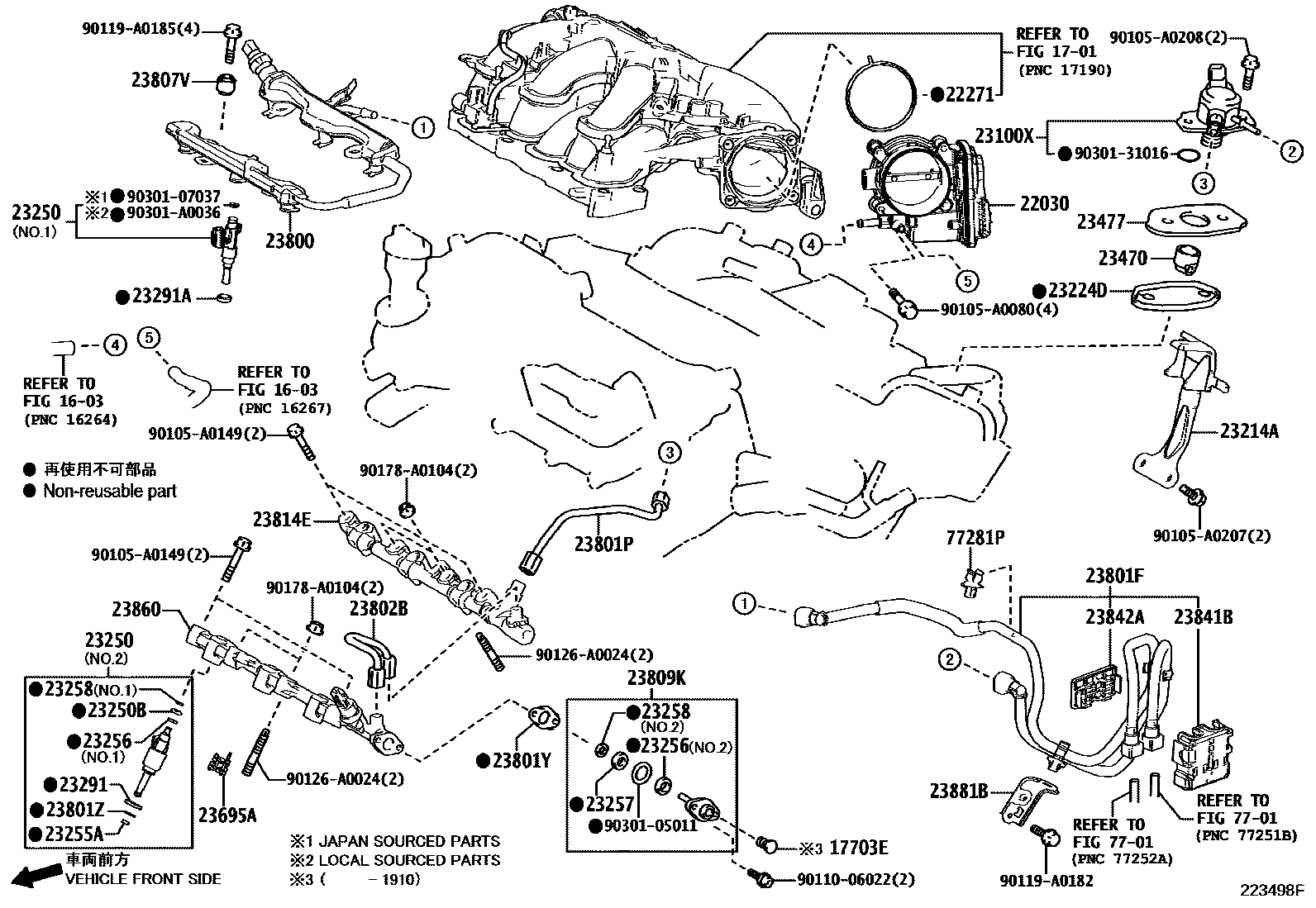

FUEL INJECTION SYSTEM
1603
1701
17703ECAP SUB-ASSY, DUST
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23214APROTECTOR, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250INJECTOR ASSY, FUEL
NO.1
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
23250BRING, O(FOR FUEL INJECTOR)
NOK
DENSO
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
NO.2
NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
NO.2
NO.1
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801FHOSE, FUEL, NO.1
23801PPIPE SUB-ASSY, FUEL, NO.1
23801YGASKET
23801ZRING, SNAP(FOR FUEL PIPE)
23802BPIPE SUB-ASSY, FUEL, NO.2
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23809KPLUG SUB-ASSY, FUEL PIPE
23814EPIPE, FUEL DELIVERY, RH
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH
23881BBRACKET, FUEL HOSE
7701
77281PCLAMP, FUEL HOSE
90105A0080
main90105-A0080
90105A0149
main90105-A0149
90105A0207
main90105-A0207
90105A0208
main90105-A0208
9011006022
main90110-06022
90119A0182
main90119-A0182
90119A0185
main90119-A0185
90126A0024
main90126-A0024
90178A0104
main90178-A0104
9030105011
main90301-05011
9030107037
main90301-07037
9030131016
main90301-31016
90301A0036
main90301-A0036
47 parts on this diagram · 1 diagram in section
