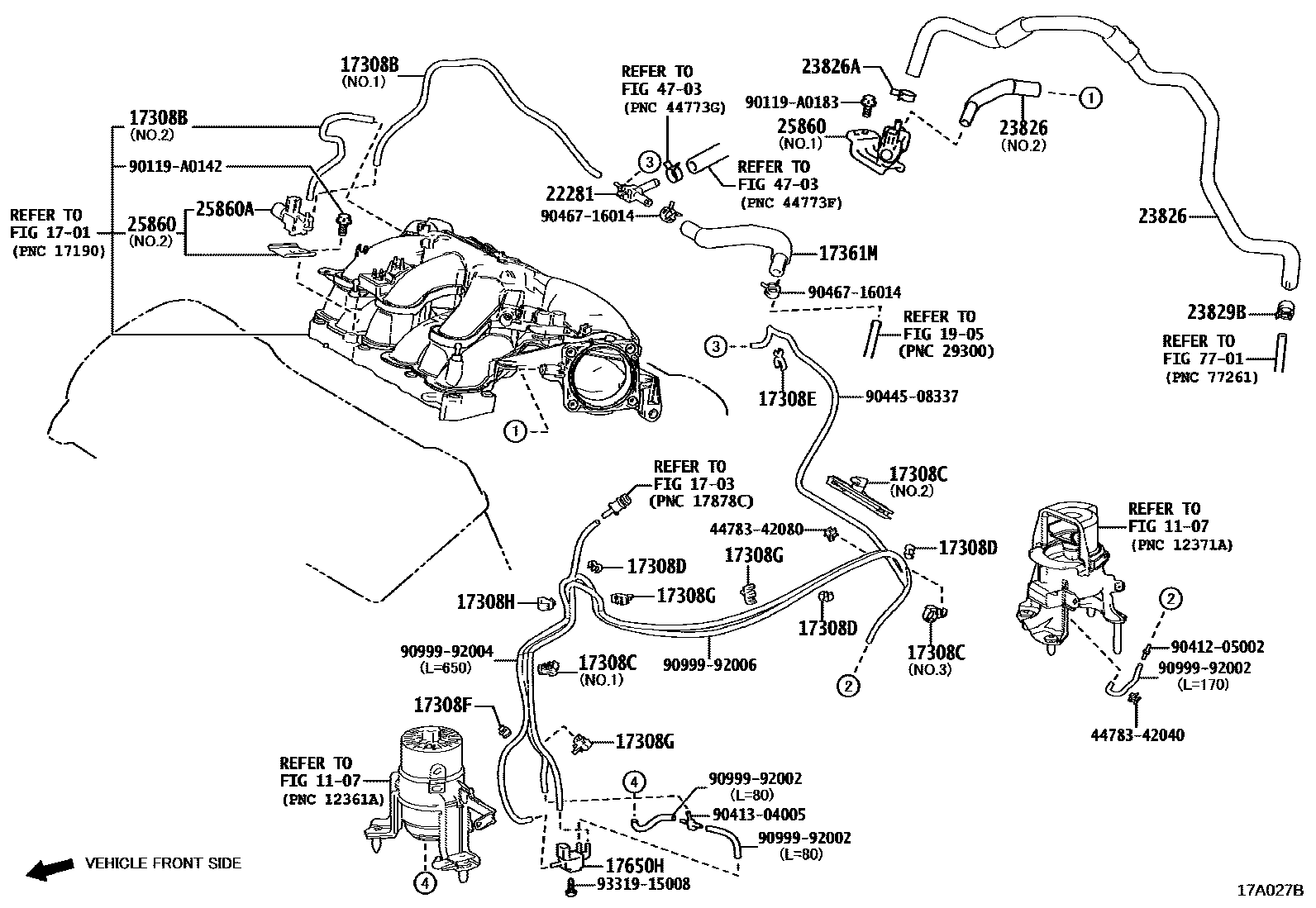

VACUUM PIPING

1107

1701

1703

17308BHOSE SUB-ASSY, VACUUM

main25760-31020i2GRFKS..GSX50201806-202008

NO.1

main90999-92002i2GRFKS..GSX50202008

NO.2

17308CCLAMP(FOR VACUUM HOSE)

main44783-33040i2GRFKS..GSX50202008

NO.1

main44783-33050i2GRFKS..GSX50201806-202008

NO.2

main44783-33060i2GRFKS..GSX50202008

NO.3

17308DCLAMP, NO.2(FOR VACUUM HOSE)

main90464-00082×2i2GRFKS..GSX50201806-202008

17308ECLAMP, NO.3(FOR VACUUM HOSE)

main44783-42070i2GRFKS..GSX50201806-202008

17308FCLAMP, NO.4(FOR VACUUM HOSE)

main44783-42040i2GRFKS..GSX50201806-202008

17308GCLAMP, NO.5(FOR VACUUM HOSE)

main90469-07012×3i2GRFKS..GSX50201806-202008

17308HCLAMP, NO.6(FOR VACUUM HOSE)

main90959-01434i2GRFKS..GSX50201806-202008

17361MTUBE, AIR

main17361-0P020i2GRFKS..GSX50202008

17650HVALVE, VACUUM SWITCHING

main90910-12059i2GRFKS..GSX50202008

(J)

main90910-TC003i2GRFKS..GSX50202008

(L)

1905

22281WAY, AIR DELIVERY

main22281-0P010i2GRFKS..GSX50201806-202008

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0P300i2GRFKS..GSX50201806-202008

main23826-0P310i2GRFKS..GSX50202008

NO.2

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96133-41101i2GRFKS..GSX50202008

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-13005i2GRFKS..GSX50201806-202008

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0P050i2GRFKS..GSX50202008

NO.1

main25860-31120i2GRFKS..GSX50201806-202008

NO.2

25860AVALVE, VACUUM SWITCHING, NO.1

main25860-46010i2GRFKS..GSX50201806-202008

4703

7701

4478342040CLAMP, VACUUM HOSE

main44783-42040

4478342080CLAMP, VACUUM HOSE

main44783-42080

90119A0142

main90119-A0142

90119A0183

main90119-A0183

9041205002

main90412-05002

9041304005

main90413-04005

9044508337

main90445-08337

9046716014

main90467-16014

9099992002

main90999-92002

9099992004

main90999-92004

9099992006

main90999-92006

9331915008

main93319-15008

33 parts on this diagram · 1 diagram in section
